德莱赛公司(Dresser) 执行机构RCS Electric Actuators

德莱赛公司(Dresser)是目前 的专业工业用阀门制造商之一,产品主要供应给全球能源行业,用于能源的探勘、开采、运输、提炼和发电等。产品包括各种调节阀(Controlp Valves),安全阀(Safety Valves),安全泄放阀(Safety Relief Valves)以及关断阀(On/Off Valves)。主要品牌计有GROVE, TK,MASONEILAN, CONSOLIDATED, 等。德莱赛总部位于美国的达拉斯,在全球有28家制造厂,产品遍及120个国家和地区。公司2003年销售额达15亿美元。在中国已设有北京代表处负责对中国的销售业务。德莱赛于04年5月在苏州工业园区投资成立了美商独资的德莱赛机械(苏州)有限公司,即将开始营运。

Masoneilan公司创立于1882年, 早的名称是梅森公司,成立后很快就因在蒸汽、气体和液体调节设备领域的不断创新发明而确立了其在控制领域的地位与名声,1931年Masoneilan收购了位于洛衫机的尼兰公司,这项收购诞生了梅森尼兰公司,1985年美国德莱塞(Dresser)工业公司收购了梅森尼兰。

在120多年的历史里, Masoneilan创下了控制阀领域的多项一:

◆ zui先开发了大大简化阀门口径的设计概念
◆ zui先开发了控制阀顶部导向和底部导向技术
◆zui先研制出通用控制阀(Camflex)以及zui先发明了用于控制阀口径计算和设计过程中可能预测其噪音的方法。门

现在Masoneilan公司仍然继续不断的设计和制造按用户特定要求而生产的产品,以满足zui严峻的要求。诸如高压降煤浆、喷气发动机测试台、液态氢节流和严重的空蚀测试的应用等等。

通用电气公司已斥资30亿美元成功收购了Dresser公司。Dresser的总部位于美国德克萨斯州Addison市,在全球共有6300名员工。该公司主要生产阀门、执行器、开关、调节器、管件以及其它各种用于压缩、流体技术、计量以及配送设施的产品,Dresser的六成收入来自北美洲之外,它的业务将被合并入通用电气旗下的电力及水处理事业部以及工程服务事业部。这次收购将使通用日立核能公司(GE Hitachi)扩展其在核反应堆零部件方面的供货能力和范围。合并后的Dresser近来已获得了一份蒸汽安全阀供应合同,供货对象是将于2012年至2014年在佐治亚州和南卡罗林纳州建造的四座西屋电气公司(Westinghouse)的核反应堆。

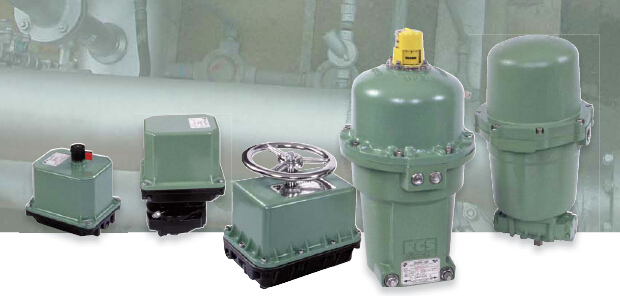

Dresser RCS Actuators Versatile automation solutions

Dresser RCS电动执行机构
Dresser Electric Actuators
Overview/Features & Benefits
MAR/DCR-10, 50 & 90
Outline Dimensions (MAR/DCR-10, 50 & 90)

MAR/DCR-100, 120, 160, 250, 800, 1600 & 4000
Outline Dimensions (MAR/DCR-100, 120, 160 & 250)
Outline Dimensions (MAR/DCR-800)
Outline Dimensions (MAR 1600-70, 4000-125, 4000-170)

DCR10 - DCR90 Electric Actuator

Features:
The DCR models 10 through 90 feature a declutchable manual override that disengages the actuator gearing from the motor so that the actuator cannot be operated electrically while in manual operation. AC Voltages 2 – SPDT Switches, PTC Heater DC Voltages 2 – SPDT (High Current) Switches.

- Available in 12 or 24 VDC. Torque outputs from 250 in. / lbs to 900 in. / lbs.
- Cycle times available from 2 seconds to 60 seconds.
- Multi-turn versions also available.
- Weather-proof or explosion proof enclosures available.

DCR100 - DCR800 Electric Actuator

Features:
AC (Single and Three Phase)Voltages 4 – SPDT Switches, PTC Heater DC Voltages 2 – SPDT (High Current) Switches.

- Available in 12 or 24 VDC. Torque outputs from 2,000 in./lbs. to 10,000 in./lbs.
- Cycle times available from 8 seconds to 60 seconds.
- Multi-turn versions also available.
- Combined weather-proof and explosion proof enclosures available.

MAR10 - MAR90 Electric Actuator

Features:
The MAR models 10 through 90 feature a declutchable manual override that disengages the actuator gearing from the motor so that the actuator cannot be operated electrically while in manual operation. AC Voltages 2 – SPDT Switches, PTC Heater, DC Voltages 2 – SPDT (High Current) Switches.

- Available in 24, 120 or 220 VAC, single phase.
- Torque outputs from 120 in. / lbs. to 1,000 in. / lbs.
- Cycle times available from 2 seconds to 60 seconds.
- Multi-turn versions also available.
- Weather-proof or explosion proof enclosures available

MAR100 - MAR800 Electric Actuator

Features:
Manual override with an automatic electrical isolation switch. When the hand wheel is engaged, the electrical switch interrupts the motor from the supply voltage to prevent electrical operation. AC (Single and Three Phase)Voltages 4 – SPDT Switches, PTC Heater DC Voltages 2 – SPDT (High Current) Switches.

- Available in 24, 120 or 220 VAC, single phase, or 230 / 460 VAC, three phase.
- Torque outputs from 1,500 in. / lbs to 10,000 in./lbs.
- Cycle times available from 1.25 seconds to 60 seconds.
- Multi-turn versions also available.
- Combined weather-proof and explosion proof enclosures available.

MAR1600 - MAR4000 Electric Actuator

Features:
Manual override with an automatic electrical isolation switch. When the hand wheel is engaged, the electrical switch interrupts the motor from the supply voltage to prevent electrical operation. AC (Single or Three Phase)Voltages 4 – SPDT Switches, PTC Heater, DC Voltages 2 – SPDT (High Current) Switches.

- Torque output from 21,000 in / lbs. to 48,000 in./ lbs.
- Cycle times from 70 to 170 seconds.
- Available in 120 or 230 VAC single phase, or 230 or 460 AC three phase voltages.
- Weather-proof and explosion-proof enclosures available.
- Suitable for two position or modulating applications

SURE24 - SURE25 Spring Return Electric Actuator

Features:
AC Voltages 2 – SPDT Switches, PTC Heater, Motor Brake.

- Spring return electric actuator with 300 in./lbs. of spring-ending torque.
- Clockwise or counterclockwise rotation available.
- 5 or 10 Second motor cycle time, 2 second spring cycle time.
- Available in 120 or 220 VAC, single phase power.
- Weather-proof or explosion proof enclosures.
- Heavy duty motor for modulating service (SURE 25 only).

SURE49 Spring Return Electric Actuator

Features:
AC Voltages 4 – SPDT Switches, PTC Heater, Motor Brake DC Voltages 2 – SPDT (High Current) Switches, PTC Heater, Motor Brake.

- Electric Spring-Return Actuator with 600 in./lbs. of spring ending torque.
- Clockwise or counter-clockwise rotation.
- Available in 5, 15 and 30 second motor cycle time.
- Spring closure time of 2 seconds.
- Available in 24, 120 or 230 VAC, single phase voltage, or 12 or 24 VDC.
- Weather-proof and Explosion-proof enclosure.
- Suitable for on-off or modulating service.

SURE100 Spring Return Electric Actuator

Features:
AC Voltages 4 – SPDT Switches, PTC Heater, Motor Brake.

- Electric Spring-Return Actuator with 1,200 in. / lbs. of spring ending torque.
- Clockwise or counter-clockwise rotation.
- Available in 10 or 30 second motor cycle time.
- Spring closure times of 5 or 7 seconds.
- Available in 120 or 230 VAC single phase voltage.
- Weather-proof and explosion-proof enclosure.
- Suitable for on-off or modulating service.
- Manual override option available.



SURE 24/25, 49, 100, 150
Outline Dimensions (SURE 24/25)
Outline Dimensions (SURE 49)
Outline Dimensions (SURE 100)
Outline Dimensions (SURE 150)
Selection Charts
CONTROLS
EASC SCC-10 (Micro-Processor Based Analog Controller)
DPC-100 & DPC-120 (Profibus? DP Actuator Controller)
DNET115 (DeviceNet? Actuator Controller)
ModBus Actuator Controller

RCS Actuators Models
MAR10, 50, 90 – A.C. Supply
DCR10, 50, 90 – D.C. Supply
MAR 10-2 120 (13.6) Part Turn 2 seconds/90° 25% (1) 2.80 3.50
MAR 10-2MT 120 (13.6) Multi-Turn 7.5 RPM 25% (1) 2.80 3.50
MAR 10-10 350 (39.5) Part Turn 10 seconds/90° 25% (1) 1.90 2.70
MAR 10-30 425 (48.0) Part Turn 30 seconds/90° 25% (1) 1.70 2.40
MAR 10-60 400 (45.2) Part Turn 60 seconds/90° 25% (1) 1.80 2.50
MAR 50-10 600 (67.8) Part Turn 10 seconds/90° 25% (1) 3.80 4.70
MAR 50-30 700 (79.1) Part Turn 30 seconds/90° 25% (1) 1.90 2.70
MAR 90-15 1,000 (113.0) Part Turn 15 seconds/90° 25% (1) 2.40 4.00
DCR 10-2 250 (28.2) Part Turn .6 seconds/90° 50% (1) 50% (1) 1.00 12.5 0.75 6.80
DCR 10-2MT 250 (28.2) Multi-Turn 25 RPM 50% (2) 50% (2) 1.00 12.5 0.75 6.80
DCR 10-10 400 (45.2) Part Turn 6.4 seconds/90° 50% (1) 50% (1) 0.19 3.90 0.08 2.10
DCR 50-2 600 (67.8) Part Turn .7 seconds/90° 50% (1) 50% (1) 1.00 22.00 0.75 12.00
DCR 50-2MT 600 (67.8) Multi-Turn 21 RPM 50% (2) 50% (2) 1.00 22.00 0.75 12.00
DCR 50-10 600 (67.8) Part Turn 5.6 seconds/90° 50% (1) 50% (1) 0.90 5.80 0.5 2.40
DCR 50-30 700 (79.1) Part Turn 21 seconds/90° 50% (2) 50% (2) 0.15 2.65 0.06 1.15
DCR 90-5 900 (101.7) Part Turn 2.2 seconds/90° 50% (1) 50% (1) 1.00 12.50 0.75 6.80
DCR 90-5MT 900 (101.7) Multi-Turn 7 RPM 50% (2) 50% (2) 1.00 12.50 0.75 6.80
DCR 90-15 900 (101.7) Part Turn 5.6 seconds/90° 50% (2) 50% (2) 0.90 5.80 0.50 2.40
MAR100
MAR120
MAR160
MAR250
MAR800
DCR100
DCR160
DCR250
DCR800
Part-Turn Electric
RCS Actuators Models
MAR 1600, MAR 4000
DCR 100-30 2,000 (225) Part Turn 11.5 seconds/90° 50% (2) 50% (2) 0.90 5.80 0.50 6.80
DCR 160-16 2,200 (248) Part Turn 5.5 seconds/90° 50% (1) 50% (1) 1.00 12.50 0.75 6.80
DCR 160-60 3,600 (406) Part Turn 22 seconds/90° 50% (2) 50% (2) 0.90 5.80 0.50 2.10
DCR 250-8 3,000 (339) Part Turn 3.2 seconds/90° 50% (1) 50% (1) 1.00 22.00 0.75 12.00
DCR 250-16 4,000 (452) Part Turn 5.7 seconds/90° 50% (1) 50% (1) 1.00 22.00 0.75 12.00
DCR 250-30 5,000 (565) Part Turn 11.2 seconds/90° 50% (2) 50% (2) 1.00 12.50 0.75 2.40
DCR 800-30 10,000 (1,130) Part Turn 13.3 seconds/90° 50% (2) 50% (2) 1.00 22.00 0.75 1.15
DCR 800-60 10,000 (1,130) Part Turn 23 seconds/90° 50% (2) 50% (2) 1.00 12.50 0.75 1.15
MAR 100-16 1,500 (169) Part Turn 16 seconds/90°
(19 seconds/90°) 50% (2) 5.60 6.00
MAR 100-30 1,800 (203) Part Turn 30 seconds/90°
(35 seconds/90°) 75% (2) 2.40 4.50
MAR 100-60 2,500 (282) Part Turn 60 seconds/90°
(70 seconds/90°) 100% (2) 1.80 3.80
MAR 160-30 2,500 (282) Part Turn 30 seconds/90°
(35 seconds/90°) 75% (2) 4.50 5.00
MAR 160-60 2,800 (316) Part-Turn 60 seconds/90°
(70 seconds/90°) 75% (2) 2.40 4.50
MAR 250-60 5,000 (565) Part Turn 60 seconds/90°
MAR 100-16 1,500 (169) Part Turn 16 seconds/90°
(19 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 120-1.25 1,500 (169) Part Turn 1.25 seconds/90°
(2 seconds/90°) 25% 25% 1.60 3.50 0.82 1.80
MAR 120-1.25
MT 1,500 (169) Multi-Turn 12 RPM (10 RPM) 25% 25% 1.60 3.50 0.82 1.80
MAR 160-8 1,920 (217) Part Turn 8 seconds/90°
(9 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 160-16 2,000 (226) Part Turn 16 seconds/90°
(19 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 250-3 3,500 (316) Part Turn 3 seconds/90°
(4 seconds/90°) 25% 25% 1.60 3.50 0.82 1.80
MAR 250-3MT 3,500 (316) Multi-Turn 5 RPM (4 RPM) 25% 25% 1.60 3.50 0.82 1.80
MAR 250-16 4,000 (452) Part Turn 16 seconds/90°
(19 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 250-30 5,000 (565) Part Turn 30 seconds/90°
(35 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 250-60 5,000 (565) Part Turn 60 seconds/90°
(70 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 800-12 7,500 (847) Part Turn 12 seconds/90°
(14 seconds/90°) 25% 25% 1.60 3.50 0.82 1.80
MAR 800-30 10,000 (1,130) Part Turn 30 seconds/90°
(35 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 800-60 10,000 (1,130) Part Turn 60 seconds/90°
(70 seconds/90°) 25% 25% 0.34 1.20 0.15 0.75
MAR 1600-70 21,000 (2,373) Part Turn 70 seconds/90°
(80 seconds/90°) 25% 25% 1.60 3.50 0.82 1.80
170 seconds/90°

MAR 4000-170 48,000 (5,424) Part Turn
