Bettis执行机构气缸 | Bettis Valve Actuators | bettis actuators | bettis电动执行机构

Bettis气动拨插执行机构的领导者,在ESD,放空阀、切断阀应用比较广泛。 Bettis成立于1929年,逐步发展成为阀门执行机构的制造集团公司及 驱。今天,Bettis作为EMERSON公司的品牌,已成为范围内气动、液压阀门执行结构生产制造的者,Bettis的执行机构可以应用于能源工业的所有领域,包括油气传输,石油炼化等,同时还应用于化工、电厂、核电、食品等行业。

Bettis的生产中心位于德克萨斯的沃勒,为了更好的为客户服务,Bettis在各地设有销售服务机构。 Bettis可以提供线性,角行程等执行机构,有弹簧复位和双作用结构,动力可以选用气动、液压、电动,输出扭矩从5N?m到678000N?m,轴向力输出从890N到2001600N,行程长度可达154cm。

Bettis Valve Actuators 拥有严格的质量管理体系,对产品生产的每个环节都进行检测,所以可以保证每个产品在出厂前都进行了彻底的检测,我们通过了ISO9001认证。



● CBA300型执行机构(CBA-300 Series Valve Actuators ):
1)气动或液动;
2)结构紧凑重量轻,适用于球阀、蝶阀、柱塞阀等90度角行程阀;
3)达到IEC60529规定的IP66和IP67M;
4)扭矩输出:
双作用型 达2520 N?m
弹簧复位型 达1296 N?m
5)标准操作压力 达1Mp;
6)工作温度-29℃到93℃
7)可选型号允许工作温度可达-40℃到177℃;

●G型执行机构(G-Series Valve Actuators )
1)气动或液动
2)适用于球阀、蝶阀、柱塞阀等90度角行程阀门;
3)磨损补偿功能,如轴杆、轴承、密封等;
4)工作情况下,弹簧强制锁定;
5)由于采用偏心轴结构,所以消除了开关、调节器密封、轴承的缺点;
6)结构紧凑,重心居中,较以前产品有了很大提高;
7)简单、易换的易损件;
8)对气候、动力空气有强抗腐蚀能力;
9)防护等级达到IP66或IP67M;
10)输出扭矩:
双作用 678000N?m;
弹簧复位: 339000 N?m;
11)操作压力:
气动 0.3~1.4Mp
液压 3.4~34.5Mp
12) 工作温度-29℃到93℃
可选型号允许工作温度可达-18℃到177℃
可选型号允许工作温度可达-46℃到82℃

Bettis was established in 1929 as an oilfield supply house and manufacturers' representative. The company later evolved into a manufacturing organization, becoming a pioneer in the valve actuator business.

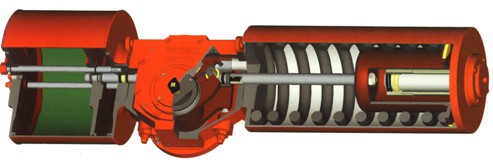

CBA-Series (Pneumatic Scotch Yoke)
CBA-300 Series (Pneumatic Scotch Yoke)
D-Series (Pneumatic Rack & Pinion)
HD-Series (Pneumatic & Hydraulic Scotch-Yoke)
G-Series (Pneumatic & Hydraulic Scotch-Yoke)




G系列执行机构,适合大扭矩

1、 模块化结构被广泛的应用在新一带的电动执行机构-ELQ系列,插入式模块可以很容易扩展整个控制功能,它可以使功能单一的执行机构很容易的扩展成一个功能齐全的执行机构,并同时具有传统的4-20mA模拟量信号和新的数字通信功能。电动执行机构配有方形驱动趁套,安装标准为ISO5211/DIN3337。另外EL-O-MATIC也能提供其他的驱动趁套,如双D形轴套,键连接轴套和特殊尺寸方形套,方便连接。

2、 标准:防水等级IP67(可选IP68),IEC529,NEMA4,ICS6-110.15
防爆等级EEX d ⅡBT4,EN50014/EN50018,NEMA,9,ICS6-110.24
安装标准:ISO5211/DIN3337
? 动力消耗低,节约成本
? 100%工作制,可以被应用在各种场合,并有防止电机过热功能
? 在整个行程中保持100%扭矩,可以被应用在各种场合,甚至应用在具有复杂扭矩模型的阀门上
? 每小时可以启动3600次,可以应用在所有需要调节的管道领域
? 配有灵活的手动装置,可以随时保持手动控制
? 紧凑的结构优化设计,消除了阀门轴所受到的不均匀载荷,同时还防止在管路上出现的应力,使整个结构保持在一个良好的平衡状态中
? 模块化设计:他们使一些插入式模块,既可以在工厂预先组装,又可以在分销商处或现场组合安装,不需要特殊的工具。而且所有这些附件都可以安装在执行机构上,按客户要求可配备或不配备机旁控制箱





Bettis products are used in almost every energy-related industry, including oil and gas production - both onshore and offshore - oil and gas transmission, petrochemical and petroleum refining. Other markets include chemical, power industry including nuclear, pulp and paper, food and beverage, pharmaceutical, textile and water system.

Bettis' CBA-Series pneumatic actuators are compact, lightweight and ideally suited for automating ball, butterfly and non-lubricated plug valves, or any quarter- turn (90 degree) rotating mechanism. These efficient, low maintenance actuators, with optional controls, provide a reliable method of operating and confirming valve position for a fully automated process. The CBA-Series, available in double-acting and spring-return models, are independently certified to BS 5490: 1977 - IP66 and IP67M for water ingress protection. Double-acting CBA-Series actuators, requiring pressure to rotate in either direction, are available with guaranteed minimum torque outputs to 12,245 lb-in (1,384 Nm).

The CBA-Series spring-return models require pressure in only one direction of travel and are suitable for fail clockwise or counterclockwise applications without modification. These models produce guaranteed spring ending torques to 4,971 lb-in (562 Nm).

Standard construction CBA-Series actuators are designed for operating temperatures of -20°F to +200°F (-30°C to +95°C). High temperature trim allows continuous operation from 0°F to +350°F (-18°C to +177°C). Additionally, low temperature trim allows operation from -40°F to +180°F (-40°C to +82°C). Consult factory when temperature requirements exceed these limits. Operating pressures for the CBA-Series range from 40 up to 150 Psig (3 to 10 Barg).

Typical Applications:

Automation of ball, butterfly and plug valves

Automation of louvers and dampers

Automation of any quarter-turn mechanism



Key Features:

Outer Lip-Type Torque Shaft Seals restrict external contaminants, providing a high level of corrosion and water resistance

O-Ring Sealed Cylinders essentially eliminate the possibility of any cylinder leakage throughout the full range of operating and climatic conditions

Standard Accessory Mounting Pad is identical on all CBA and CBA-300 Series models allowing the panel mounting of controls

Piston Heel and Yoke Pin Bearings manufactured from PTFE/bronze help ensure smooth and consistent torque output and increase total cycle life

Totally Enclosed Body provides complete protection of all internal moving parts and minimizes the chance of injury to operating personnel

The Scotch-Yoke Mechanism transforms linear movement of the piston into a 90 degree rotating movement, providing optimum start or end torque

Center Bar, made of high strength alloy steel, guides the piston throughout its full stroke, preventing metal to metal contact with the cylinder bore

Bi-directional Travel Stops are an integral part of the actuator allowing 80° to 100° total travel adjustment. Extended travel stops are optional

Critical Bearing Surfaces are permanently lubricated with a baked on dry film lubricant containing unique corrosion inhibitors

XylanTM Cylinder Coating, the standard internal coating on all CBA-Series actuators. This fluoropolymer coating is highly resistant to abrasion, thermal shock and provides excellent lubricity and low friction properties. Corrosive properties of salts and other chemicals normally found in the atmosphere or instrument air supply system will not adversely affect its performance. XylanTM bonds to the chemically prepared surface of the steel cylinder so effectively that, unlike other coatings, cracking and flaking are virtually eliminated

Dual Valve Mounting Interface allows the flexibility to change the spring fail mode, without disassembly of the actuator, by simply inverting the actuator. They may be installed in any position; parallel or at right angles to the flow line, in the vertical or the horizontal plane

WellGuard? PWG Valve Actuators

The WellGuard? piston range of pneumatic Control Fluid Powered linear actuators is designed to be used in conjunction with Bettis valve bonnets to provide open and close control for major brands of API 6A through conduit reverse acting gate valves fitted to oil and gas wellheads and production flow lines. These actuators can be used with API 6D and ANSI B16.34 valves where the bonnets are built to Bettis design.
Key Features

Lightweight

Actuator Upper Shaft acts as visual position indicator

Easy maintenance and disassembly, no special tools required

Construction uses no large mounting threads, eliminates galling and corrosion

Designed for interchangeability with Bettis pneumatic diaphragm and hydraulic piston WellGuard linear actuators

Actuator temperature operating range: –50°F to +150°F (–58°C to 65°C)

Bonnet temperature class "L to U" and tested for 300°F Service

Suitable for use with eutectic (fusible) lock open device

The company headquarters in Waller, Texas (near Houston) houses more than 145,000 square feet of covered manufacturing, research, engineering and office facilities. Bettis also has an 88,000 square foot manufacturing facility in Canada, a valve automation facility in France, and a direct sales office in the United Kingdom.

Since Bettis Corporation's inception, it has continuously expanded both its physical capacity and its product lines. Its growth has come, in part, from the acquisition of some of the world's most reputable actuator manufacturers with a myriad of offerings and specialties. As a result of these acquisitions, Bettis now operates plants worldwide coupled with a global sales and distribution network unmatched in the industry.
