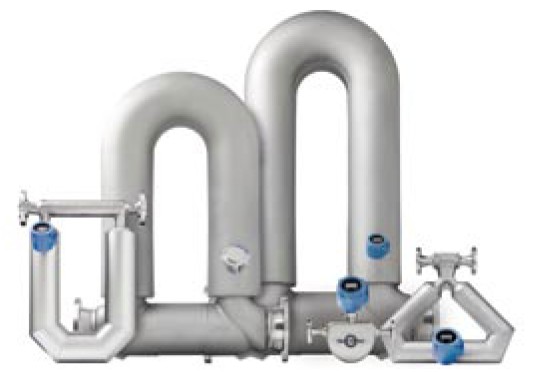

高准 ELITE®流量和密度仪表 ELITE Coriolis Flow and Density Meter
高准 ELITE® 仪表是精确测量流量和密度的领导者，ELITE 仪表可为各种过程流体提供最精确的测量，同时具备少有的低压降。每台ELITE 仪表具备标准的二次外壳，接液部件可选不锈钢或镍合金，提供各种过程连接以满足您的不同需求。
Micro Motion ELITE® Coriolis meters are the leading precision flow
and density measurement solution offering the most accurate
and repeatable mass measurement for liquids, gases, or slurries.
The ELITE Coriolis line includes ten sensor models, including the
widest breadth of high flow rate Coriolis meters.
在各种过程和环境条件下，ELITE 仪表在测量质量流量、密度和体积流量计量方面都表现了最好的测量性能。ELITE 仪表能用于两相流，液体和气体的贸易交接，过程条件为 -400 °F (-240 °C) 到662 °F (350 °C)。
精确测量流量和密度的工业标准 — 液体、气体和浆液在过程控制和贸易
交接应用的理想选择
卓越的性能指标：质量流量精度为流量值的 ±0.05%，密度精度为±0.0002 g/cm3 (±0.2 kg/m3)
尺寸范围 1/8″- 6″(3 mm - 150 mm)
高准最新技术可用于两相流测量和就地仪表自校验
Brief Specifications |
Mass flow accuracy |
+/-0.05% of flow rate |
Volume flow accuracy |
+/-0.05% of flow rate |
Gas flow accuracy |
+/-0.35% of flow rate |
Density accuracy |
+/-0.0002 g/cc |
Wetted parts |
304L, 316L Stainless Steel, C22 Nickel Alloy or Super Duplex |
Temperature rating |
-400 to 662°F (-240 to 350°C) |
Pressure rating |
1450 - 6000** psi (100 to 413** bar) |
* Listed specifications may vary with sensor or transmitter model.
**Available on select line sizes |
ELITE Model |
Nominal Line Size |
Maximum Flow Rate |
Flow Rate at 1 Bar r P (water) |
English Units |
Metric Units |
English Units |
Metric Units |
English Units |
Metric Units |
CMFS010 |
1/10 to 1/6 inch |
2 to 4 mm |
4 lb/min |
108 kg/h |
3.5 lb/min |
96 kg/h |
CMF010 |
1/10 to 1/6 inch |
2 to 4 mm |
4 lb/min |
108 kg/h |
3.4 lb/min |
92 kg/h |
CMFS015 |
1/6 to 1/4 inch |
4 to 6mm |
12 lb/min |
330 kg/h |
12 lb/min |
330 kg/h |
CMF025 |
1/4 to 1/2 inch |
6 to 13 mm |
80 lb/min |
2180 kg/h |
48 lb/min |
1,306 kg/h |
CMF050 |
1/2 to 1 inch |
13 to 25 mm |
250 lb/min |
6800 kg/h |
125 lb/min |
3,400 kg/h |
CMF100 |
1 to 2 inch |
25 to 50 mm |
1000 lb/min |
27,200 kg/h |
570 lb/min |
15,500 kg/h |
CMF200 |
2 to 3 inch |
50 to 75 mm |
3200 lb/min |
87,100 kg/h |
1,750 lb/min |
48,000 kg/h |
CMF300 |
3 to 4 inch |
75 to 100 mm |
10,000 lb/min |
272,160 kg/h |
5,800 lb/min |
160,000 kg/h |
CMF400 |
4 to 6 inch |
100 to 150mm |
20,000 lb/min |
545,500 kg/h |
15,000lb/min |
409,000 kg/h |
CMF HC2 |
6 to 8 inch |
150 to 200mm |
54,000 lb/min |
1,470,000 kg/h |
28,000 lb/min |
760,000 kg/h |
CMF HC3 |
8 to 10 inch |
200 to 250mm |
94,000 lb/min |
2,563,850 kg/h |
49,000 lb/min |
1,300,000 kg/h |
CMF HC4 |
10 to 16 inch |
254 to 406mm |
120,000 lb/min |
3,265,870 kg/h |
78,000 lb/min |
2,122,812 kg/h |
* Listed specifications may vary with sensor or transmitter model. |
Micro Motion ELITE Coriolis meters deliver peak performance and ideally suited for best precision flow and density measurement in the most challenging applications.
- Batch Control
- Blending
- Concentration and Density Measurements
- Critical Process Control
- Custody Transfer
- Engine Testing
- Filling & Dosing
- Gases
- Hot Asphalt delivery
- Loading and Unloading
- Mass Balance
- Multi-meter Product transfer skids
- Natural Gas Check Metering
- Pipeline Proving
- Reactor Charging
|
