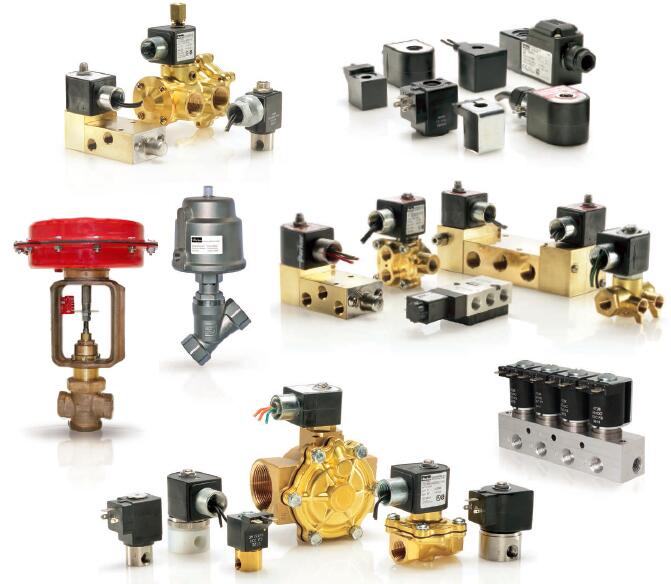

Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves
Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Parker's 2-Way Normally Closed 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment
Technical Specifications
| Application: |
General Purpose Valves |
| Product Series: |
7000 and Gold Ring Series |
| Valve Type: |
2-Way |
| Function: |
Normally Closed |
| Port Size: |
1/4 inch |
| Input Voltage: |
110/50 - 120/60, 220/50 - 240/60, 24/60, 12VDC, 24VDC |
| Body Material: |
Stainless or Brass |
| Seal Material: |
NBR, FKM |
| Orifice 1 Size: |
3/64 to 7/16 inch |
| Flow Coefficient 1: |
0.06 to 2.5 Cv |
| Power Consumption: |
10, 22 (AC or DC) W |
| Coil Type: |
1/2" Conduit, 18" Leads or DIN Form A |
| Maximum Pressure Differential: |
20 to 600 (AC) or 3 to 600 (DC) psi |
| Number of Ports: |
2 |
| Actuation Type: |
Direct Acting, Pilot or Diaphragm, Pivoted Edge |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a |
| Minimum Pressure Differential: |
0 psi |
| Minimum Fluid Temperature: |
0 °F |
| Maximum Fluid Temperature: |
185 °F |
| Coil Specifications Met: |
NEMA 4X |
Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Body Material |
Seal Material |
Orifice 1 Size (inch) |
Flow Factor 1 (Cv) |
Power (Watts) |
Coil Type |
| 04F25C2122C3F4C75 |
12 VDC |
Brass |
NBR |
11/32 |
1.2 |
11.5 Watts (DC) |
1/2" Conduit, 18" Leads |
| 04F25C2122C3F4C80 |
24 VDC |
Brass |
NBR |
11/32 |
1.2 |
11.5 Watts (DC) |
1/2" Conduit, 18" Leads |
| 04F25C2122C3FPH75 |
12 VDC |
Brass |
NBR |
11/32 |
1.2 |
11.5 Watts (DC) |
1/2" Conduit, 18" Leads |
| 04F25C2122C3FPH80 |
24 VDC |
Brass |
NBR |
11/32 |
1.2 |
11.5 Watts (DC) |
1/2" Conduit, 18" Leads |
| 04F25C2122CAF4C01 |
24/60 |
Brass |
NBR |
11/32 |
1.2 |
6 Watts (AC) |
1/2" Conduit, 18" Leads |
| 04F25C2122CAF4C05 |
110/50-120/60 |
Brass |
NBR |
11/32 |
1.2 |
6 Watts (AC) |
1/2" Conduit, 18" Leads |
| 04F25C2122CAF4C15 |
220/50-240/60 |
Brass |
NBR |
11/32 |
1.2 |
6 Watts (AC) |
1/2" Conduit, 18" Leads |
| 04F25C2122CAFPH01 |
24/60 |
Brass |
NBR |
11/32 |
1.2 |
6 Watts (AC) |
1/2" Conduit, 18" Leads |
| 04F25C2122CAFPH05 |
110/50-120/60 |
Brass |
NBR |
11/32 |
1.2 |
6 Watts (AC) |
1/2" Conduit, 18" Leads |
| 04F25C2122CAFPH15 |
220/50-240/60 |
Brass |
NBR |
11/32 |
1.2 |
6 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C111B2 |
24/60 |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C111C1 |
12 VDC |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C111C2 |
24 VDC |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C322B2 |
24/60 |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C322C1 |
12 VDC |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C322C2 |
24 VDC |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C322P3 |
110/50-120/60 |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0C322Q3 |
220/50-240/60 |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21N00N0D100B2 |
24/60 |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN21N00N0D100C1 |
12 VDC |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN21N00N0D100C2 |
24 VDC |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN21N00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN21N00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
5/16 |
1.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN21N00N0D300B2 |
24/60 |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (AC) |
DIN Form A |
| 71215SN21N00N0D300C1 |
12 VDC |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (DC) |
DIN Form A |
| 71215SN21N00N0D300C2 |
24 VDC |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (DC) |
DIN Form A |
| 71215SN21N00N0D300P3 |
110/50-120/60 |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (AC) |
DIN Form A |
| 71215SN21N00N0D300Q3 |
220/50-240/60 |
Stainless |
NBR |
5/16 |
1.1 |
22 Watts (AC) |
DIN Form A |
| 71215SN21V00N0C111B2 |
24/60 |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C111C1 |
12 VDC |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C111C2 |
24 VDC |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C322B2 |
24/60 |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C322C1 |
12 VDC |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C322C2 |
24 VDC |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C322P3 |
110/50-120/60 |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0C322Q3 |
220/50-240/60 |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN21V00N0D100B2 |
24/60 |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN21V00N0D100C1 |
12 VDC |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN21V00N0D100C2 |
24 VDC |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN21V00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN21V00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
5/16 |
1.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN21V00N0D300B2 |
24/60 |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (AC) |
DIN Form A |
| 71215SN21V00N0D300C1 |
12 VDC |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (DC) |
DIN Form A |
| 71215SN21V00N0D300C2 |
24 VDC |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (DC) |
DIN Form A |
| 71215SN21V00N0D300P3 |
110/50-120/60 |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (AC) |
DIN Form A |
| 71215SN21V00N0D300Q3 |
220/50-240/60 |
Stainless |
FKM |
5/16 |
1.1 |
22 Watts (AC) |
DIN Form A |
| 71215SN2EN00N0C111B2 |
24/60 |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2EN00N0C111C1 |
12 VDC |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2EN00N0C111C2 |
24 VDC |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2EN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2EN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2EN00N0D100B2 |
24/60 |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (AC) |
DIN Form A |
| 71215SN2EN00N0D100C1 |
12 VDC |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (DC) |
DIN Form A |
| 71215SN2EN00N0D100C2 |
24 VDC |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (DC) |
DIN Form A |
| 71215SN2EN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (AC) |
DIN Form A |
| 71215SN2EN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
3/64 |
0.06 |
10 Watts (AC) |
DIN Form A |
| 71215SN2EV00N0C111B2 |
24/60 |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2EV00N0C111C1 |
12 VDC |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2EV00N0C111C2 |
24 VDC |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2EV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2EV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2EV00N0D100B2 |
24/60 |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (AC) |
DIN Form A |
| 71215SN2EV00N0D100C1 |
12 VDC |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (DC) |
DIN Form A |
| 71215SN2EV00N0D100C2 |
24 VDC |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (DC) |
DIN Form A |
| 71215SN2EV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (AC) |
DIN Form A |
| 71215SN2EV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
3/64 |
0.06 |
10 Watts (AC) |
DIN Form A |
| 71215SN2GN00N0C111B2 |
24/60 |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2GN00N0C111C1 |
12 VDC |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2GN00N0C111C2 |
24 VDC |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2GN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2GN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2GN00N0D100B2 |
24/60 |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN2GN00N0D100C1 |
12 VDC |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN2GN00N0D100C2 |
24 VDC |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN2GN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN2GN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
1/16 |
0.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN2GV00N0C111B2 |
24/60 |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2GV00N0C111C1 |
12 VDC |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2GV00N0C111C2 |
24 VDC |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2GV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2GV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2GV00N0D100B2 |
24/60 |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN2GV00N0D100C1 |
12 VDC |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN2GV00N0D100C2 |
24 VDC |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (DC) |
DIN Form A |
| 71215SN2GV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN2GV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
1/16 |
0.1 |
10 Watts (AC) |
DIN Form A |
| 71215SN2KN00N0C111B2 |
24/60 |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KN00N0C111C1 |
12 VDC |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2KN00N0C111C2 |
24 VDC |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2KN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KN00N0D100B2 |
24/60 |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (AC) |
DIN Form A |
| 71215SN2KN00N0D100C1 |
12 VDC |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (DC) |
DIN Form A |
| 71215SN2KN00N0D100C2 |
24 VDC |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (DC) |
DIN Form A |
| 71215SN2KN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (AC) |
DIN Form A |
| 71215SN2KN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
3/32 |
0.18 |
10 Watts (AC) |
DIN Form A |
| 71215SN2KV00N0C111B2 |
24/60 |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0C111C1 |
12 VDC |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0C111C2 |
24 VDC |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0C322B2 |
24/60 |
Stainless |
FKM |
3/32 |
0.18 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0C322P3 |
110/50-120/60 |
Stainless |
FKM |
3/32 |
0.18 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0C322Q3 |
220/50-240/60 |
Stainless |
FKM |
3/32 |
0.18 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2KV00N0D100B2 |
24/60 |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (AC) |
DIN Form A |
| 71215SN2KV00N0D100C1 |
12 VDC |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (DC) |
DIN Form A |
| 71215SN2KV00N0D100C2 |
24 VDC |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (DC) |
DIN Form A |
| 71215SN2KV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (AC) |
DIN Form A |
| 71215SN2KV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
3/32 |
0.18 |
10 Watts (AC) |
DIN Form A |
| 71215SN2KV00N0D300B2 |
24/60 |
Stainless |
FKM |
3/32 |
0.18 |
22 Watts (AC) |
DIN Form A |
| 71215SN2KV00N0D300P3 |
110/50-120/60 |
Stainless |
FKM |
3/32 |
0.18 |
22 Watts (AC) |
DIN Form A |
| 71215SN2KV00N0D300Q3 |
220/50-240/60 |
Stainless |
FKM |
3/32 |
0.18 |
22 Watts (AC) |
DIN Form A |
| 71215SN2MN00N0C111B2 |
24/60 |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MN00N0C111C1 |
12 VDC |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MN00N0C111C2 |
24 VDC |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MN00N0C322C1 |
12 VDC |
Stainless |
NBR |
1/8 |
0.28 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MN00N0C322C2 |
24 VDC |
Stainless |
NBR |
1/8 |
0.28 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MN00N0D100B2 |
24/60 |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (AC) |
DIN Form A |
| 71215SN2MN00N0D100C1 |
12 VDC |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (DC) |
DIN Form A |
| 71215SN2MN00N0D100C2 |
24 VDC |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (DC) |
DIN Form A |
| 71215SN2MN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (AC) |
DIN Form A |
| 71215SN2MN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
1/8 |
0.28 |
10 Watts (AC) |
DIN Form A |
| 71215SN2MN00N0D300C1 |
12 VDC |
Stainless |
NBR |
1/8 |
0.28 |
22 Watts (DC) |
DIN Form A |
| 71215SN2MN00N0D300C2 |
24 VDC |
Stainless |
NBR |
1/8 |
0.28 |
22 Watts (DC) |
DIN Form A |
| 71215SN2MV00N0C111B2 |
24/60 |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C111C1 |
12 VDC |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C111C2 |
24 VDC |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C322B2 |
24/60 |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C322C1 |
12 VDC |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C322C2 |
24 VDC |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C322P3 |
110/50-120/60 |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0C322Q3 |
220/50-240/60 |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2MV00N0D100B2 |
24/60 |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (AC) |
DIN Form A |
| 71215SN2MV00N0D100C1 |
12 VDC |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (DC) |
DIN Form A |
| 71215SN2MV00N0D100C2 |
24 VDC |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (DC) |
DIN Form A |
| 71215SN2MV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (AC) |
DIN Form A |
| 71215SN2MV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
1/8 |
0.28 |
10 Watts (AC) |
DIN Form A |
| 71215SN2MV00N0D300B2 |
24/60 |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (AC) |
DIN Form A |
| 71215SN2MV00N0D300C1 |
12 VDC |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (DC) |
DIN Form A |
| 71215SN2MV00N0D300C2 |
24 VDC |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (DC) |
DIN Form A |
| 71215SN2MV00N0D300P3 |
110/50-120/60 |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (AC) |
DIN Form A |
| 71215SN2MV00N0D300Q3 |
220/50-240/60 |
Stainless |
FKM |
1/8 |
0.28 |
22 Watts (AC) |
DIN Form A |
| 71215SN2QN00N0C111B2 |
24/60 |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C111C1 |
12 VDC |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C111C2 |
24 VDC |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C322B2 |
24/60 |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C322C1 |
12 VDC |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C322C2 |
24 VDC |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C322P3 |
110/50-120/60 |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0C322Q3 |
220/50-240/60 |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QN00N0D100B2 |
24/60 |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (AC) |
DIN Form A |
| 71215SN2QN00N0D100C1 |
12 VDC |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (DC) |
DIN Form A |
| 71215SN2QN00N0D100C2 |
24 VDC |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (DC) |
DIN Form A |
| 71215SN2QN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (AC) |
DIN Form A |
| 71215SN2QN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
5/32 |
0.4 |
10 Watts (AC) |
DIN Form A |
| 71215SN2QN00N0D300B2 |
24/60 |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (AC) |
DIN Form A |
| 71215SN2QN00N0D300C1 |
12 VDC |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (DC) |
DIN Form A |
| 71215SN2QN00N0D300C2 |
24 VDC |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (DC) |
DIN Form A |
| 71215SN2QN00N0D300P3 |
110/50-120/60 |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (AC) |
DIN Form A |
| 71215SN2QN00N0D300Q3 |
220/50-240/60 |
Stainless |
NBR |
5/32 |
0.4 |
22 Watts (AC) |
DIN Form A |
| 71215SN2QV00N0C111B2 |
24/60 |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C111C1 |
12 VDC |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C111C2 |
24 VDC |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C322B2 |
24/60 |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C322C1 |
12 VDC |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C322C2 |
24 VDC |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C322P3 |
110/50-120/60 |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0C322Q3 |
220/50-240/60 |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2QV00N0D100B2 |
24/60 |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (AC) |
DIN Form A |
| 71215SN2QV00N0D100C1 |
12 VDC |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (DC) |
DIN Form A |
| 71215SN2QV00N0D100C2 |
24 VDC |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (DC) |
DIN Form A |
| 71215SN2QV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (AC) |
DIN Form A |
| 71215SN2QV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
5/32 |
0.4 |
10 Watts (AC) |
DIN Form A |
| 71215SN2QV00N0D300B2 |
24/60 |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (AC) |
DIN Form A |
| 71215SN2QV00N0D300C1 |
12 VDC |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (DC) |
DIN Form A |
| 71215SN2QV00N0D300C2 |
24 VDC |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (DC) |
DIN Form A |
| 71215SN2QV00N0D300P3 |
110/50-120/60 |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (AC) |
DIN Form A |
| 71215SN2QV00N0D300Q3 |
220/50-240/60 |
Stainless |
FKM |
5/32 |
0.4 |
22 Watts (AC) |
DIN Form A |
| 71215SN2SN00N0C111B2 |
24/60 |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C111C1 |
12 VDC |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C111C2 |
24 VDC |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C322B2 |
24/60 |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C322C1 |
12 VDC |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C322C2 |
24 VDC |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C322P3 |
110/50-120/60 |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0C322Q3 |
220/50-240/60 |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SN00N0D100B2 |
24/60 |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (AC) |
DIN Form A |
| 71215SN2SN00N0D100C1 |
12 VDC |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (DC) |
DIN Form A |
| 71215SN2SN00N0D100C2 |
24 VDC |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (DC) |
DIN Form A |
| 71215SN2SN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (AC) |
DIN Form A |
| 71215SN2SN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
3/16 |
0.5 |
10 Watts (AC) |
DIN Form A |
| 71215SN2SN00N0D300B2 |
24/60 |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (AC) |
DIN Form A |
| 71215SN2SN00N0D300C1 |
12 VDC |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (DC) |
DIN Form A |
| 71215SN2SN00N0D300C2 |
24 VDC |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (DC) |
DIN Form A |
| 71215SN2SN00N0D300P3 |
110/50-120/60 |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (AC) |
DIN Form A |
| 71215SN2SN00N0D300Q3 |
220/50-240/60 |
Stainless |
NBR |
3/16 |
0.5 |
22 Watts (AC) |
DIN Form A |
| 71215SN2SV00N0C111B2 |
24/60 |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C111C1 |
12 VDC |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C111C2 |
24 VDC |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C322B2 |
24/60 |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C322C1 |
12 VDC |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C322C2 |
24 VDC |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C322P3 |
110/50-120/60 |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0C322Q3 |
220/50-240/60 |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2SV00N0D100B2 |
24/60 |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (AC) |
DIN Form A |
| 71215SN2SV00N0D100C1 |
12 VDC |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (DC) |
DIN Form A |
| 71215SN2SV00N0D100C2 |
24 VDC |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (DC) |
DIN Form A |
| 71215SN2SV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (AC) |
DIN Form A |
| 71215SN2SV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
3/16 |
0.5 |
10 Watts (AC) |
DIN Form A |
| 71215SN2SV00N0D300B2 |
24/60 |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (AC) |
DIN Form A |
| 71215SN2SV00N0D300C1 |
12 VDC |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (DC) |
DIN Form A |
| 71215SN2SV00N0D300C2 |
24 VDC |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (DC) |
DIN Form A |
| 71215SN2SV00N0D300P3 |
110/50-120/60 |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (AC) |
DIN Form A |
| 71215SN2SV00N0D300Q3 |
220/50-240/60 |
Stainless |
FKM |
3/16 |
0.5 |
22 Watts (AC) |
DIN Form A |
| 71215SN2VN00N0C111B2 |
24/60 |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C111C1 |
12 VDC |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C111C2 |
24 VDC |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C322B2 |
24/60 |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C322C1 |
12 VDC |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C322C2 |
24 VDC |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C322P3 |
110/50-120/60 |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0C322Q3 |
220/50-240/60 |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VN00N0D100B2 |
24/60 |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (AC) |
DIN Form A |
| 71215SN2VN00N0D100C1 |
12 VDC |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (DC) |
DIN Form A |
| 71215SN2VN00N0D100C2 |
24 VDC |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (DC) |
DIN Form A |
| 71215SN2VN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (AC) |
DIN Form A |
| 71215SN2VN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
1/4 |
0.75 |
10 Watts (AC) |
DIN Form A |
| 71215SN2VN00N0D300B2 |
24/60 |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (AC) |
DIN Form A |
| 71215SN2VN00N0D300C1 |
12 VDC |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (DC) |
DIN Form A |
| 71215SN2VN00N0D300C2 |
24 VDC |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (DC) |
DIN Form A |
| 71215SN2VN00N0D300P3 |
110/50-120/60 |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (AC) |
DIN Form A |
| 71215SN2VN00N0D300Q3 |
220/50-240/60 |
Stainless |
NBR |
1/4 |
0.75 |
22 Watts (AC) |
DIN Form A |
| 71215SN2VV00N0C111B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C111C1 |
12 VDC |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C111C2 |
24 VDC |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C322B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C322C1 |
12 VDC |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C322C2 |
24 VDC |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C322P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0C322Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 71215SN2VV00N0D100B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (AC) |
DIN Form A |
| 71215SN2VV00N0D100C1 |
12 VDC |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (DC) |
DIN Form A |
| 71215SN2VV00N0D100C2 |
24 VDC |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (DC) |
DIN Form A |
| 71215SN2VV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (AC) |
DIN Form A |
| 71215SN2VV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.75 |
10 Watts (AC) |
DIN Form A |
| 71215SN2VV00N0D300B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (AC) |
DIN Form A |
| 71215SN2VV00N0D300C1 |
12 VDC |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (DC) |
DIN Form A |
| 71215SN2VV00N0D300C2 |
24 VDC |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (DC) |
DIN Form A |
| 71215SN2VV00N0D300P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (AC) |
DIN Form A |
| 71215SN2VV00N0D300Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.75 |
22 Watts (AC) |
DIN Form A |
| 7121KBN2NV00N0C111B2 |
24/60 |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2NV00N0C111C1 |
12 VDC |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2NV00N0C111C2 |
24 VDC |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2NV00N0C111P3 |
110/50-120/60 |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2NV00N0C111Q3 |
220/50-240/60 |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2NV00N0D100B2 |
24/60 |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2NV00N0D100C1 |
12 VDC |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (DC) |
DIN Form A |
| 7121KBN2NV00N0D100C2 |
24 VDC |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (DC) |
DIN Form A |
| 7121KBN2NV00N0D100P3 |
110/50-120/60 |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2NV00N0D100Q3 |
220/50-240/60 |
Brass |
FKM |
1/8 |
0.31 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2QV00N0C111B2 |
24/60 |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2QV00N0C111C1 |
12 VDC |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2QV00N0C111C2 |
24 VDC |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2QV00N0C111P3 |
110/50-120/60 |
Brass |
FKM |
3/32 |
0.52 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2QV00N0C111Q3 |
220/50-240/60 |
Brass |
FKM |
3/32 |
0.52 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2QV00N0C322C1 |
12 VDC |
Brass |
FKM |
5/32 |
0.52 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2QV00N0C322C2 |
24 VDC |
Brass |
FKM |
5/32 |
0.52 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2QV00N0D100B2 |
24/60 |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2QV00N0D100C1 |
12 VDC |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (DC) |
DIN Form A |
| 7121KBN2QV00N0D100C2 |
24 VDC |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (DC) |
DIN Form A |
| 7121KBN2QV00N0D100P3 |
110/50-120/60 |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2QV00N0D100Q3 |
220/50-240/60 |
Brass |
FKM |
5/32 |
0.52 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2QV00N0D300C1 |
12 VDC |
Brass |
FKM |
5/32 |
0.52 |
22 Watts (DC) |
DIN Form A |
| 7121KBN2QV00N0D300C2 |
24 VDC |
Brass |
FKM |
5/32 |
0.52 |
22 Watts (DC) |
DIN Form A |
| 7121KBN2SV00N0C111B2 |
24/60 |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2SV00N0C111C1 |
12 VDC |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2SV00N0C111C2 |
24 VDC |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2SV00N0C111P3 |
110/50-120/60 |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2SV00N0C111Q3 |
220/50-240/60 |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7121KBN2SV00N0C322C1 |
12 VDC |
Brass |
FKM |
13/64 |
0.76 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2SV00N0C322C2 |
24 VDC |
Brass |
FKM |
13/64 |
0.76 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7121KBN2SV00N0D100B2 |
24/60 |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2SV00N0D100C1 |
12 VDC |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 7121KBN2SV00N0D100C2 |
24 VDC |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 7121KBN2SV00N0D100P3 |
110/50-120/60 |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2SV00N0D100Q3 |
220/50-240/60 |
Brass |
FKM |
13/64 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 7121KBN2SV00N0D300C1 |
12 VDC |
Brass |
FKM |
13/64 |
0.76 |
22 Watts (DC) |
DIN Form A |
| 7121KBN2SV00N0D300C2 |
24 VDC |
Brass |
FKM |
13/64 |
0.76 |
22 Watts (DC) |
DIN Form A |
| 73212BN2MN00N0C111B2 |
24/60 |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212BN2MN00N0C111C1 |
12 VDC |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212BN2MN00N0C111C2 |
24 VDC |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212BN2MN00N0C111P3 |
110/50-120/60 |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212BN2MN00N0C111Q3 |
220/50-240/60 |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212BN2MN00N0D100B2 |
24/60 |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212BN2MN00N0D100C1 |
12 VDC |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212BN2MN00N0D100C2 |
24 VDC |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212BN2MN00N0D100P3 |
110/50-120/60 |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212BN2MN00N0D100Q3 |
220/50-240/60 |
Brass |
NBR |
1/8 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212BN2MV00N0C111B2 |
24/60 |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212BN2MV00N0C111C1 |
12 VDC |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212BN2MV00N0C111C2 |
24 VDC |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212BN2MV00N0C111P3 |
110/50-120/60 |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212BN2MV00N0C111Q3 |
220/50-240/60 |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212BN2MV00N0D100B2 |
24/60 |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212BN2MV00N0D100C1 |
12 VDC |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212BN2MV00N0D100C2 |
24 VDC |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212BN2MV00N0D100P3 |
110/50-120/60 |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212BN2MV00N0D100Q3 |
220/50-240/60 |
Brass |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212SN2MN00N0C111B2 |
24/60 |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MN00N0C111C1 |
12 VDC |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212SN2MN00N0C111C2 |
24 VDC |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212SN2MN00N0C111P3 |
110/50-120/60 |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MN00N0C111Q3 |
220/50-240/60 |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MN00N0D100B2 |
24/60 |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212SN2MN00N0D100C1 |
12 VDC |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212SN2MN00N0D100C2 |
24 VDC |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212SN2MN00N0D100P3 |
110/50-120/60 |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212SN2MN00N0D100Q3 |
220/50-240/60 |
Stainless |
NBR |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212SN2MV00N0C111B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0C111C1 |
12 VDC |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0C111C2 |
24 VDC |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0C111P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0C111Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0C322B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.76 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0C322P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.76 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0C322Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.76 |
22 Watts (AC) |
1/2" Conduit, 18" Leads |
| 73212SN2MV00N0D100B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212SN2MV00N0D100C1 |
12 VDC |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212SN2MV00N0D100C2 |
24 VDC |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (DC) |
DIN Form A |
| 73212SN2MV00N0D100P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212SN2MV00N0D100Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.76 |
10 Watts (AC) |
DIN Form A |
| 73212SN2MV00N0D300B2 |
24/60 |
Stainless |
FKM |
1/4 |
0.76 |
22 Watts (AC) |
DIN Form A |
| 73212SN2MV00N0D300P3 |
110/50-120/60 |
Stainless |
FKM |
1/4 |
0.76 |
22 Watts (AC) |
DIN Form A |
| 73212SN2MV00N0D300Q3 |
220/50-240/60 |
Stainless |
FKM |
1/4 |
0.76 |
22 Watts (AC) |
DIN Form A |
| 7321HBN2SN00N0C111B2 |
24/60 |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7321HBN2SN00N0C111C1 |
12 VDC |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321HBN2SN00N0C111C2 |
24 VDC |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321HBN2SN00N0C111P3 |
110/50-120/60 |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7321HBN2SN00N0C111Q3 |
220/50-240/60 |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7321HBN2SN00N0C322C1 |
12 VDC |
Brass |
NBR |
5/16 |
2.5 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321HBN2SN00N0C322C2 |
24 VDC |
Brass |
NBR |
5/16 |
2.5 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321HBN2SN00N0D100B2 |
24/60 |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (AC) |
DIN Form A |
| 7321HBN2SN00N0D100C1 |
12 VDC |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (DC) |
DIN Form A |
| 7321HBN2SN00N0D100C2 |
24 VDC |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (DC) |
DIN Form A |
| 7321HBN2SN00N0D100P3 |
110/50-120/60 |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (AC) |
DIN Form A |
| 7321HBN2SN00N0D100Q3 |
220/50-240/60 |
Brass |
NBR |
5/16 |
2.5 |
10 Watts (AC) |
DIN Form A |
| 7321HBN2SN00N0D300C1 |
12 VDC |
Brass |
NBR |
5/16 |
2.5 |
22 Watts (DC) |
DIN Form A |
| 7321HBN2SN00N0D300C2 |
24 VDC |
Brass |
NBR |
5/16 |
2.5 |
22 Watts (DC) |
DIN Form A |
| 7321KBN2RN00N0C111B2 |
24/60 |
Brass |
NBR |
7/16 |
2 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7321KBN2RN00N0C111C1 |
12 VDC |
Brass |
NBR |
7/16 |
2 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321KBN2RN00N0C111C2 |
24 VDC |
Brass |
NBR |
7/16 |
2 |
10 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321KBN2RN00N0C111P3 |
110/50-120/60 |
Brass |
NBR |
7/16 |
2 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7321KBN2RN00N0C111Q3 |
220/50-240/60 |
Brass |
NBR |
7/16 |
2 |
10 Watts (AC) |
1/2" Conduit, 18" Leads |
| 7321KBN2RN00N0C322C1 |
12 VDC |
Brass |
NBR |
7/16 |
2 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321KBN2RN00N0C322C2 |
24 VDC |
Brass |
NBR |
7/16 |
2 |
22 Watts (DC) |
1/2" Conduit, 18" Leads |
| 7321KBN2RN00N0D100B2 |
24/60 |
Brass |
NBR |
7/16 |
2 |
10 Watts (AC) |
DIN Form A |
| 7321KBN2RN00N0D100C1 |
12 VDC |
Brass |
NBR |
7/16 |
2 |
10 Watts (DC) |
DIN Form A |
| 7321KBN2RN00N0D100C2 |
24 VDC |
Brass |
NBR |
7/16 |
2 |
10 Watts (DC) |
DIN Form A |
| 7321KBN2RN00N0D100P3 |
110/50-120/60 |
Brass |
NBR |
7/16 |
2 |
10 Watts (AC) |
DIN Form A |
| 7321KBN2RN00N0D100Q3 |
220/50-240/60 |
Brass |
NBR |
7/16 |
2 |
10 Watts (AC) |
DIN Form A |
| 7321KBN2RN00N0D300C1 |
12 VDC |
Brass |
NBR |
7/16 |
2 |
22 Watts (DC) |
DIN Form A |
| 7321KBN2RN00N0D300C2 |
24 VDC |
Brass |
NBR |
7/16 |
2 |
22 Watts (DC) |
DIN Form A |
|
