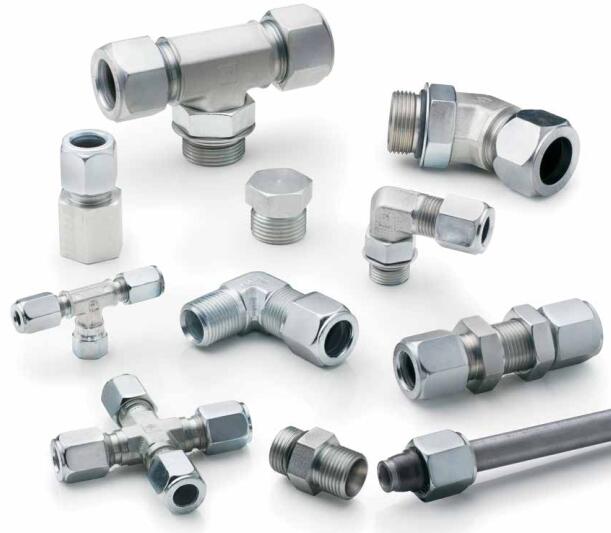

Ferulok 24° Flareless Fittings

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Parker's 24° Flareless tube fittings, Ferulok, have a visible bite which allows the fitting assembler to visually inspect the bite quality, which significantly minimizes the risk of improper assembly and related service problems in hydraulic connections. The rear compression grip of the ferrule firmly holds the nut and tubing, dampening the effects of vibration and extending the life of the joint. Exceeding the requirements of SAE J514, Ferulok Flareless fittings are especially suitable for use with applications requiring tube wall thicknesses ranging from medium to extra heavy.

Ferulok 24° Flareless Fittings

Markets:
- Machine Tool
- Military Ground Systems
- Compressor
- Off-Shore Oil & Gas
- Power Plants
- Lubrication
- R & D

Features/Benefits:
- Hardened ferrule creates a visible heavy bite so no inspecting gauges are required.
- Compression grip at rear of ferrule dampens the effects of vibration which extends the life of the joint in rigorous applications.
- Especially suitable for use with tube wall thickness ranging from medium to heavy
- Metal-to-metal sealing makes it suitable for a broad range of temperature and media types.
- Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility. This enhanced performance provides customers with a competitive advantage through extended equipment life, leading to increased revenues and reduced warranty costs.
- No special tooling is required for smaller sizes of Ferulok which can be assembled by wrench for sizes up to 3/4".
- Stainless Steel nuts have a coating to prevent galling.
- Offered in steel and stainless steel in sizes: 1/8" through 2" with working pressures up to 6000 psi.

Applications:
- Hydraulic fluid and gas handling connections

Technical Specifications

Ferulok 24° Flareless Fittings型号

Part Shape Connection Style Connection 1 Style Connection 1 Tube O.D. (inch) Connection 2 Style Connection 2 Tube O.D. (inch) Connection 2 Thread Size (inch) Connection 3 Style Connection 3 Tube O.D. (inch) Connection 3 Thread Size (inch) O-ring Body Material
10 BU-S Nut na Female Flareless Bite Type 5/8 na na na na na na na Steel, Chromium-6 Free
10 BU-SS Nut na Female Flareless Bite Type 5/8 na na na na na na na Stainless Steel
10 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
10 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
10 C5BU-S V0894
10 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Stainless Steel
10 C6BU-S 90° Elbow Tube to Tube Male Flareless Bite Type 5/8 Female Flareless Bite Type Swivel 5/8 na na na na 90 Durometer Nitrile Steel, Chromium-6 Free
10 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
10 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 1/2-14 na na na na Stainless Steel
10 CC5BU-S 90° Elbow Tube to SAE Straight Thread Long Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
10 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 5/8 Female NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
10 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 5/8 Female NPTF na 1/2-14 na na na na Stainless Steel
10 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na na na na na Steel, Chromium-6 Free
10 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na na na na na Stainless Steel
10 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
10 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
10 F5BU-S V0894
10 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Stainless Steel
10 FBU-S Straight Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
10 FBU-SS Straight Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 1/2-14 na na na na Stainless Steel
10 FNU-S Cap na Female Flareless Bite Type Swivel 5/8 na na na na na na na Steel, Chromium-6 Free
10 FNU-SS Cap na Female Flareless Bite Type Swivel 5/8 na na na na na na na Stainless Steel
10 GBU-S Straight Tube to NPT Male Flareless Bite Type 5/8 Female NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
10 GBU-SS Straight Tube to NPT Male Flareless Bite Type 5/8 Female NPTF na 1/2-14 na na na na Stainless Steel
10 HBU-S Straight Tube to Tube Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na na na na na Steel, Chromium-6 Free
10 HBU-SS Straight Tube to Tube Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na na na na na Stainless Steel
10 JBU-S Tee Union Tee Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na Male Flareless Bite Type 5/8 na na Steel, Chromium-6 Free
10 JBU-SS Tee Union Tee Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na Male Flareless Bite Type 5/8 na na Stainless Steel
10 MBU-S Tee Run Tee Male Flareless Bite Type 5/8 Female NPTF na 1/2-14 Male Flareless Bite Type 5/8 na na Steel, Chromium-6 Free
10 OBU-S Tee Branch Tee Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na Female NPT na 1/2-14 na Steel, Chromium-6 Free
10 PNU-S Plug na Male Flareless Bite Type 5/8 na na na na na na na Steel, Chromium-6 Free
10 R5BU-S Tee Straight Thread Run Tee Male Flareless Bite Type 5/8 Male SAE-ORB na 7/8-14 Male Flareless Bite Type 5/8 na 90 Durometer Nitrile Steel, Chromium-6 Free
10 RBU-S Tee Run Tee Male Flareless Bite Type 5/8 Male NPTF na 1/2-14 Male Flareless Bite Type 5/8 na na Steel, Chromium-6 Free
10 SBU-S Tee Branch Tee Male Flareless Bite Type 5/8 Male Flareless Bite Type 5/8 na Male NPT na 1/2-14 na Steel, Chromium-6 Free
10 TU-S Ferrule na Flareless Ferrule 5/8 na na na na na na na Steel, Chromium-6 Free
10 TU-SS Ferrule na Flareless Ferrule 5/8 na na na na na na na Stainless Steel
10 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
10 VBU-SS 45° Elbow Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 1/2-14 na na na na Stainless Steel
10 WBU-S Straight Bulkhead Union Male Flareless Bite Type 5/8 Male Flareless Bite Type Bulkhead 5/8 na na na na na Steel, Chromium-6 Free
10-12 FBU-S Straight Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
10-6 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
10-6 FBU-S Straight Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
10-6 FBU-SS Straight Tube to NPT Male Flareless Bite Type 5/8 Male NPTF na 3/8-18 na na na na Stainless Steel
10-6 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 5/8 Female Flareless Swivel 3/8 na na na na na Steel, Chromium-6 Free
10-8 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 5/8 Female Flareless Swivel 1/2 na na na na na Steel, Chromium-6 Free
10-8 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 5/8 Female Flareless Swivel 1/2 na na na na na Stainless Steel
12 BU-S Nut na Female Flareless Bite Type 3/4 na na na na na na na Steel, Chromium-6 Free
12 BU-SS Nut na Female Flareless Bite Type 3/4 na na na na na na na Stainless Steel
12 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
12 C5BU-S V0894
12 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Stainless Steel
12 C5BU-SS FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Fluorocarbon Stainless Steel
12 C5BU-SS V0894
12 C6BU-S 90° Elbow Tube to Tube Male Flareless Bite Type 3/4 Female Flareless Bite Type Swivel 3/4 na na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12 C6BU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 3/4 Female Flareless Bite Type Swivel 3/4 na na na na 90 Durometer Nitrile Stainless Steel
12 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
12 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 3/4-14 na na na na Stainless Steel
12 CC5BU-S 90° Elbow Tube to SAE Straight Thread Long Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/4 Female NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
12 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/4 Female NPTF na 3/4-14 na na na na Stainless Steel
12 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na na na na na Steel, Chromium-6 Free
12 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na na na na na Stainless Steel
12 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
12 F5BU-S V0894
12 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Stainless Steel
12 FBU-S Straight Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
12 FBU-SS Straight Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 3/4-14 na na na na Stainless Steel
12 FNU-S Cap na Female Flareless Bite Type Swivel 3/4 na na na na na na na Steel, Chromium-6 Free
12 FNU-SS Cap na Female Flareless Bite Type Swivel 3/4 na na na na na na na Stainless Steel
12 GBU-S Straight Tube to NPT Male Flareless Bite Type 3/4 Female NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
12 GBU-SS Straight Tube to NPT Male Flareless Bite Type 3/4 Female NPTF na 3/4-14 na na na na Stainless Steel
12 HBU-S Straight Tube to Tube Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na na na na na Steel, Chromium-6 Free
12 HBU-SS Straight Tube to Tube Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na na na na na Stainless Steel
12 JBU-S Tee Union Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Male Flareless Bite Type 3/4 na na Steel, Chromium-6 Free
12 JBU-SS Tee Union Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Male Flareless Bite Type 3/4 na na Stainless Steel
12 KBU-S Cross Union Cross Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Male Flareless Bite Type 3/4 na na Steel, Chromium-6 Free
12 MBU-S Tee Run Tee Male Flareless Bite Type 3/4 Female NPTF na 3/4-14 Male Flareless Bite Type 3/4 na na Steel, Chromium-6 Free
12 OBU-S Tee Branch Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Female NPT na 3/4-14 na Steel, Chromium-6 Free
12 OBU-SS Tee Branch Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Female NPT na 3/4-14 na Stainless Steel
12 PNU-S Plug na Male Flareless Bite Type 3/4 na na na na na na na Steel, Chromium-6 Free
12 PNU-SS Plug na Male Flareless Bite Type 3/4 na na na na na na na Stainless Steel
12 R5BU-S Tee Straight Thread Run Tee Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 Male Flareless Bite Type 3/4 na 90 Durometer Nitrile Steel, Chromium-6 Free
12 R5BU-S FKM Tee Straight Thread Run Tee Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 Male Flareless Bite Type 3/4 na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
12 R5BU-S V0894
12 R5BU-SS Tee Straight Thread Run Tee Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 Male Flareless Bite Type 3/4 na 90 Durometer Nitrile Stainless Steel
12 R6BU-S Tee Swivel Nut Run Tee Male Flareless Bite Type 3/4 Female Flareless Swivel 3/4 na Male Flareless Bite Type 3/4 na na Steel, Chromium-6 Free
12 R6BU-SS Tee Swivel Nut Run Tee Male Flareless Bite Type 3/4 Female Flareless Swivel 3/4 na Male Flareless Bite Type 3/4 na na Stainless Steel
12 RBU-S Tee Run Tee Male Flareless Bite Type 3/4 Male NPTF na 3/4-14 Male Flareless Bite Type 3/4 na na Steel, Chromium-6 Free
12 RBU-SS Tee Run Tee Male Flareless Bite Type 3/4 Male NPTF na 3/4-14 Male Flareless Bite Type 3/4 na na Stainless Steel
12 S5BU-S Tee Straight Thread Branch Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Male SAE-ORB na 1 1/16-12 90 Durometer Nitrile Steel, Chromium-6 Free
12 S5BU-S FKM Tee Straight Thread Branch Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Male SAE-ORB na 1 1/16-12 90 Durometer Fluorocarbon Steel, Chromium-6 Free
12 S5BU-S V0894
12 S5BU-SS Tee Straight Thread Branch Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Male SAE-ORB na 1 1/16-12 90 Durometer Nitrile Stainless Steel
12 S6BU-S Tee Swivel Nut Branch Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Female Flareless Swivel 3/4 na na Steel, Chromium-6 Free
12 S6BU-SS Tee Swivel Nut Branch Tee Male Flareless Bite Type 3/4 Male Flareless Bite Type 3/4 na Female Flareless Swivel 3/4 na na Stainless Steel
12 TU-S Ferrule na Flareless Ferrule 3/4 na na na na na na na Steel, Chromium-6 Free
12 TU-SS Ferrule na Flareless Ferrule 3/4 na na na na na na na Stainless Steel
12 V5BU-S 45° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
12 WBU-S Straight Bulkhead Union Male Flareless Bite Type 3/4 Male Flareless Bite Type Bulkhead 3/4 na na na na na Steel, Chromium-6 Free
12 WBU-SS Straight Bulkhead Union Male Flareless Bite Type 3/4 Male Flareless Bite Type Bulkhead 3/4 na na na na na Stainless Steel
12-10 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12-10 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 3/4 Female Flareless Swivel 5/8 na na na na na Steel, Chromium-6 Free
12-16 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12-16 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
12-16 F5BU-S V0894
12-6 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 3/4 Female Flareless Swivel 3/8 na na na na na Steel, Chromium-6 Free
12-6 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 3/4 Female Flareless Swivel 3/8 na na na na na Stainless Steel
12-8 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12-8 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
12-8 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 1/2-14 na na na na Stainless Steel
12-8 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
12-8 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 3/4-16 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
12-8 F5BU-S V0894
12-8 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/4 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Stainless Steel
12-8 FBU-S Straight Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
12-8 FBU-SS Straight Tube to NPT Male Flareless Bite Type 3/4 Male NPTF na 1/2-14 na na na na Stainless Steel
12-8 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 3/4 Female Flareless Swivel 1/2 na na na na na Steel, Chromium-6 Free
12-8 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 3/4 Female Flareless Swivel 1/2 na na na na na Stainless Steel
14 BU-S Nut na Female Flareless Bite Type 7/8 na na na na na na na Steel, Chromium-6 Free
14 BU-SS Nut na Female Flareless Bite Type 7/8 na na na na na na na Stainless Steel
14 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 7/8 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
14 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 7/8 Female NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
14 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 7/8 Male Flareless Bite Type 7/8 na na na na na Steel, Chromium-6 Free
14 FBU-S Straight Tube to NPT Male Flareless Bite Type 7/8 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
14 GBU-S Straight Tube to NPT Male Flareless Bite Type 7/8 Female NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
14 HBU-S Straight Tube to Tube Male Flareless Bite Type 7/8 Male Flareless Bite Type 7/8 na na na na na Steel, Chromium-6 Free
14 JBU-S Tee Union Tee Male Flareless Bite Type 7/8 Male Flareless Bite Type 7/8 na Male Flareless Bite Type 7/8 na na Steel, Chromium-6 Free
14 MBU-S Tee Run Tee Male Flareless Bite Type 7/8 Female NPTF na 3/4-14 Male Flareless Bite Type 7/8 na na Steel, Chromium-6 Free
14 OBU-S Tee Branch Tee Male Flareless Bite Type 7/8 Male Flareless Bite Type 7/8 na Female NPT na 3/4-14 na Steel, Chromium-6 Free
14 RBU-S Tee Run Tee Male Flareless Bite Type 7/8 Male NPTF na 3/4-14 Male Flareless Bite Type 7/8 na na Steel, Chromium-6 Free
14 TU-S Ferrule na Flareless Ferrule 7/8 na na na na na na na Steel, Chromium-6 Free
14 TU-SS Ferrule na Flareless Ferrule 7/8 na na na na na na na Stainless Steel
14 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 7/8 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
14 WBU-S Straight Bulkhead Union Male Flareless Bite Type 7/8 Male Flareless Bite Type Bulkhead 7/8 na na na na na Steel, Chromium-6 Free
16 BU-S Nut na Female Flareless Bite Type 1 na na na na na na na Steel, Chromium-6 Free
16 BU-SS Nut na Female Flareless Bite Type 1 na na na na na na na Stainless Steel
16 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
16 C5BU-S V0894
16 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Nitrile Stainless Steel
16 C5BU-SS FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Fluorocarbon Stainless Steel
16 C5BU-SS V0894
16 C6BU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1 Female Flareless Bite Type Swivel 1 na na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1 Male NPTF na 1-11 1/2 na na na na Steel, Chromium-6 Free
16 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1 Male NPTF na 1-11 1/2 na na na na Stainless Steel
16 CC5BU-S 90° Elbow Tube to SAE Straight Thread Long Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1 Female NPTF na 1-11 1/2 na na na na Steel, Chromium-6 Free
16 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1 Male Flareless Bite Type 1 na na na na na Steel, Chromium-6 Free
16 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 1 Male Flareless Bite Type 1 na na na na na Stainless Steel
16 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
16 F5BU-S V0894
16 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Nitrile Stainless Steel
16 F5BU-SS FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Fluorocarbon Stainless Steel
16 F5BU-SS V0894
16 FBU-S Straight Tube to NPT Male Flareless Bite Type 1 Male NPTF na 1-11 1/2 na na na na Steel, Chromium-6 Free
16 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1 Male NPTF na 1-11 1/2 na na na na Stainless Steel
16 FNU-S Cap na Female Flareless Bite Type Swivel 1 na na na na na na na Steel, Chromium-6 Free
16 FNU-SS Cap na Female Flareless Bite Type Swivel 1 na na na na na na na Stainless Steel
16 GBU-S Straight Tube to NPT Male Flareless Bite Type 1 Female NPTF na 1/11 1/2 na na na na Steel, Chromium-6 Free
16 GBU-SS Straight Tube to NPT Male Flareless Bite Type 1 Female NPTF na 1/11 1/2 na na na na Stainless Steel
16 HBU-S Straight Tube to Tube Male Flareless Bite Type 1 Male Flareless Bite Type 1 na na na na na Steel, Chromium-6 Free
16 HBU-SS Straight Tube to Tube Male Flareless Bite Type 1 Male Flareless Bite Type 1 na na na na na Stainless Steel
16 JBU-S Tee Union Tee Male Flareless Bite Type 1 Male Flareless Bite Type 1 na Male Flareless Bite Type 1 na na Steel, Chromium-6 Free
16 JBU-SS Tee Union Tee Male Flareless Bite Type 1 Male Flareless Bite Type 1 na Male Flareless Bite Type 1 na na Stainless Steel
16 MBU-S Tee Run Tee Male Flareless Bite Type 1 Female NPTF na 1-11 1/2 Male Flareless Bite Type 1 na na Steel, Chromium-6 Free
16 OBU-S Tee Branch Tee Male Flareless Bite Type 1 Male Flareless Bite Type 1 na Female NPT na 1-11 1/2 na Steel, Chromium-6 Free
16 PNU-S Plug na Male Flareless Bite Type 1 na na na na na na na Steel, Chromium-6 Free
16 R5BU-S Tee Straight Thread Run Tee Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 Male Flareless Bite Type 1 na 90 Durometer Nitrile Steel, Chromium-6 Free
16 R6BU-S Tee Swivel Nut Run Tee Male Flareless Bite Type 1 Female Flareless Swivel 1 na Male Flareless Bite Type 1 na na Steel, Chromium-6 Free
16 RBU-S Tee Run Tee Male Flareless Bite Type 1 Male NPTF na 1-11 1/2 Male Flareless Bite Type 1 na na Steel, Chromium-6 Free
16 S5BU-S Tee Straight Thread Branch Tee Male Flareless Bite Type 1 Male Flareless Bite Type 1 na Male SAE-ORB na 1 5/16-12 90 Durometer Nitrile Steel, Chromium-6 Free
16 S5BU-S FKM Tee Straight Thread Branch Tee Male Flareless Bite Type 1 Male Flareless Bite Type 1 na Male SAE-ORB na 1 5/16-12 90 Durometer Fluorocarbon Steel, Chromium-6 Free
16 S5BU-S V0894
16 TU-S Ferrule na Flareless Ferrule 1 na na na na na na na Steel, Chromium-6 Free
16 TU-SS Ferrule na Flareless Ferrule 1 na na na na na na na Stainless Steel
16 V5BU-S 45° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 1 Male NPTF na 1-11 1/2 na na na na Steel, Chromium-6 Free
16 WBU-S Straight Bulkhead Union Male Flareless Bite Type 1 Male Flareless Bite Type Bulkhead 1 na na na na na Steel, Chromium-6 Free
16-10 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1 Female Flareless Swivel 5/8 na na na na na Steel, Chromium-6 Free
16-12 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16-12 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
16-12 C5BU-S V0894
16-12 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
16-12 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1 Male NPTF na 3/4-14 na na na na Stainless Steel
16-12 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16-12 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
16-12 F5BU-S V0894
16-12 FBU-S Straight Tube to NPT Male Flareless Bite Type 1 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
16-12 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1 Male NPTF na 3/4-14 na na na na Stainless Steel
16-12 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1 Female Flareless Swivel 3/4 na na na na na Steel, Chromium-6 Free
16-12 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 1 Female Flareless Swivel 3/4 na na na na na Stainless Steel
16-20 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/8-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
16-20 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 Male SAE-ORB na 1 5/8-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
16-20 F5BU-S V0894
16-8 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1 Female Flareless Swivel 1/2 na na na na na Steel, Chromium-6 Free
16-8 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 1 Female Flareless Swivel 1/2 na na na na na Stainless Steel
2 BU-S Nut na Female Flareless Bite Type 1/8 na na na na na na na Steel, Chromium-6 Free
2 BU-SS Nut na Female Flareless Bite Type 1/8 na na na na na na na Stainless Steel
2 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/8 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
2 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/8 Male NPTF na 1/8-27 na na na na Stainless Steel
2 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1/8 Male Flareless Bite Type 1/8 na na na na na Steel, Chromium-6 Free
2 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/8 Male SAE-ORB na 5/16-24 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
2 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/8 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
2 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/8 Male NPTF na 1/8-27 na na na na Stainless Steel
2 FNU-SS Cap na Female Flareless Bite Type Swivel 1/8 na na na na na na na Stainless Steel
2 GBU-S Straight Tube to NPT Male Flareless Bite Type 1/8 Female NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
2 HBU-S Straight Tube to Tube Male Flareless Bite Type 1/8 Male Flareless Bite Type 1/8 na na na na na Steel, Chromium-6 Free
2 HBU-SS Straight Tube to Tube Male Flareless Bite Type 1/8 Male Flareless Bite Type 1/8 na na na na na Stainless Steel
2 JBU-S Tee Union Tee Male Flareless Bite Type 1/8 Male Flareless Bite Type 1/8 na Male Flareless Bite Type 1/8 na na Steel, Chromium-6 Free
2 PNU-S Plug na Male Flareless Bite Type 1/8 na na na na na na na Steel, Chromium-6 Free
2 TU-S Ferrule na Flareless Ferrule 1/8 na na na na na na na Steel, Chromium-6 Free
2 TU-SS Ferrule na Flareless Ferrule 1/8 na na na na na na na Stainless Steel
2-4 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/8 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
2-4 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/8 Male NPTF na 1/4-18 na na na na Stainless Steel
20 BU-S Nut na Female Flareless Bite Type 1 1/4 na na na na na na na Steel, Chromium-6 Free
20 BU-SS Nut na Female Flareless Bite Type 1 1/4 na na na na na na na Stainless Steel
20 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 1/4 Male SAE-ORB na 1 5/8-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
20 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 1/4 Male SAE-ORB na 1 5/8-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
20 C5BU-S V0894
20 C6BU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1 1/4 Female Flareless Bite Type Swivel 1 1/4 na na na na 90 Durometer Nitrile Steel, Chromium-6 Free
20 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1 1/4 Male NPTF na 1 1/4-11 1/2 na na na na Steel, Chromium-6 Free
20 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1 1/4 Male NPTF na 1 1/4-11 1/2 na na na na Stainless Steel
20 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1 1/4 Female NPTF na 1 1/4-11 1/2 na na na na Steel, Chromium-6 Free
20 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1 1/4 Male Flareless Bite Type 1 1/4 na na na na na Steel, Chromium-6 Free
20 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 1 1/4 Male Flareless Bite Type 1 1/4 na na na na na Stainless Steel
20 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 1/4 Male SAE-ORB na 1 5/8-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
20 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 1/4 Male SAE-ORB na 1 5/8-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
20 F5BU-S V0894
20 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 1/4 Male SAE-ORB na 1 5/8-12 na na na 90 Durometer Nitrile Stainless Steel
20 FBU-S Straight Tube to NPT Male Flareless Bite Type 1 1/4 Male NPTF na 1 1/4-11 1/2 na na na na Steel, Chromium-6 Free
20 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1 1/4 Male NPTF na 1 1/4-11 1/2 na na na na Stainless Steel
20 FNU-S Cap na Female Flareless Bite Type Swivel 1 1/4 na na na na na na na Steel, Chromium-6 Free
20 GBU-S Straight Tube to NPT Male Flareless Bite Type 1 1/4 Female NPTF na 1 1/4-11 1/2 na na na na Steel, Chromium-6 Free
20 HBU-S Straight Tube to Tube Male Flareless Bite Type 1 1/4 Male Flareless Bite Type 1 1/4 na na na na na Steel, Chromium-6 Free
20 HBU-SS Straight Tube to Tube Male Flareless Bite Type 1 1/4 Male Flareless Bite Type 1 1/4 na na na na na Stainless Steel
20 JBU-S Tee Union Tee Male Flareless Bite Type 1 1/4 Male Flareless Bite Type 1 1/4 na Male Flareless Bite Type 1 1/4 na na Steel, Chromium-6 Free
20 JBU-SS Tee Union Tee Male Flareless Bite Type 1 1/4 Male Flareless Bite Type 1 1/4 na Male Flareless Bite Type 1 1/4 na na Stainless Steel
20 OBU-S Tee Branch Tee Male Flareless Bite Type 1 1/4 Male Flareless Bite Type 1 1/4 na Female NPT na 1 1/4-11 1/2 na Steel, Chromium-6 Free
20 TU-S Ferrule na Flareless Ferrule 1 1/4 na na na na na na na Steel, Chromium-6 Free
20 TU-SS Ferrule na Flareless Ferrule 1 1/4 na na na na na na na Stainless Steel
20 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 1 1/4 Male NPTF na 1 1/4-11 1/2 na na na na Steel, Chromium-6 Free
20-16 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1 1/4 Female Flareless Swivel 1 na na na na na Steel, Chromium-6 Free
24 BU-S Nut na Female Flareless Bite Type 1 1/2 na na na na na na na Steel, Chromium-6 Free
24 BU-SS Nut na Female Flareless Bite Type 1 1/2 na na na na na na na Stainless Steel
24 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 1/2 Male SAE-ORB na 1 7/8-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
24 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 1/2 Male SAE-ORB na 1 7/8-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
24 C5BU-S V0894
24 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1 1/2 Male SAE-ORB na 1 7/8-12 na na na 90 Durometer Nitrile Stainless Steel
24 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1 1/2 Male NPTF na 1 1/2-11 1/2 na na na na Steel, Chromium-6 Free
24 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1 1/2 Male NPTF na 1 1/2-11 1/2 na na na na Stainless Steel
24 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1 1/2 Female NPTF na 1 1/2-11 1/2 na na na na Steel, Chromium-6 Free
24 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1 1/2 Male Flareless Bite Type 1 1/2 na na na na na Steel, Chromium-6 Free
24 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 1 1/2 Male Flareless Bite Type 1 1/2 na na na na na Stainless Steel
24 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 1/2 Male SAE-ORB na 1 7/8-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
24 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 1/2 Male SAE-ORB na 1 7/8-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
24 F5BU-S V0894
24 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1 1/2 Male SAE-ORB na 1 7/8-12 na na na 90 Durometer Nitrile Stainless Steel
24 FBU-S Straight Tube to NPT Male Flareless Bite Type 1 1/2 Male NPTF na 1 1/2-11 1/2 na na na na Steel, Chromium-6 Free
24 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1 1/2 Male NPTF na 1 1/2-11 1/2 na na na na Stainless Steel
24 GBU-S Straight Tube to NPT Male Flareless Bite Type 1 1/2 Female NPTF na 1 1/2-11 1/2 na na na na Steel, Chromium-6 Free
24 HBU-S Straight Tube to Tube Male Flareless Bite Type 1 1/2 Male Flareless Bite Type 1 1/2 na na na na na Steel, Chromium-6 Free
24 HBU-SS Straight Tube to Tube Male Flareless Bite Type 1 1/2 Male Flareless Bite Type 1 1/2 na na na na na Stainless Steel
24 JBU-S Tee Union Tee Male Flareless Bite Type 1 1/2 Male Flareless Bite Type 1 1/2 na Male Flareless Bite Type 1 1/2 na na Steel, Chromium-6 Free
24 JBU-SS Tee Union Tee Male Flareless Bite Type 1 1/2 Male Flareless Bite Type 1 1/2 na Male Flareless Bite Type 1 1/2 na na Stainless Steel
24 TU-S Ferrule na Flareless Ferrule 1 1/2 na na na na na na na Steel, Chromium-6 Free
24 TU-SS Ferrule na Flareless Ferrule 1 1/2 na na na na na na na Stainless Steel
24-12 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1 1/2 Female Flareless Swivel 3/4 na na na na na Steel, Chromium-6 Free
24-16 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1 1/2 Female Flareless Swivel 1 na na na na na Steel, Chromium-6 Free
24-20 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1 1/2 Female Flareless Swivel 1 1/4 na na na na na Steel, Chromium-6 Free
3 BU-S Nut na Female Flareless Bite Type 3/16 na na na na na na na Steel, Chromium-6 Free
3 BU-SS Nut na Female Flareless Bite Type 3/16 na na na na na na na Stainless Steel
3 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/16 Male SAE-ORB na 3/8-24 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
3 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/16 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
3 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/16 Male SAE-ORB na 3/8-24 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
3 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/16 Male SAE-ORB na 3/8-24 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
3 F5BU-S V0894
3 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/16 Male SAE-ORB na 3/8-24 na na na 90 Durometer Nitrile Stainless Steel
3 F5BU-SS FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/16 Male SAE-ORB na 3/8-24 na na na 90 Durometer Fluorocarbon Stainless Steel
3 F5BU-SS V0894
3 FBU-S Straight Tube to NPT Male Flareless Bite Type 3/16 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
3 FBU-SS Straight Tube to NPT Male Flareless Bite Type 3/16 Male NPTF na 1/8-27 na na na na Stainless Steel
3 HBU-S Straight Tube to Tube Male Flareless Bite Type 3/16 Male Flareless Bite Type 3/16 na na na na na Steel, Chromium-6 Free
3 JBU-S Tee Union Tee Male Flareless Bite Type 3/16 Male Flareless Bite Type 3/16 na Male Flareless Bite Type 3/16 na na Steel, Chromium-6 Free
3 TU-S Ferrule na Flareless Ferrule 3/16 na na na na na na na Steel, Chromium-6 Free
3 TU-SS Ferrule na Flareless Ferrule 3/16 na na na na na na na Stainless Steel
3 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 3/16 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
32 BU-S Nut na Female Flareless Bite Type 2 na na na na na na na Steel, Chromium-6 Free
32 BU-SS Nut na Female Flareless Bite Type 2 na na na na na na na Stainless Steel
32 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 2 Male SAE-ORB na 2 1/2-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
32 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 2 Male SAE-ORB na 2 1/2-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
32 C5BU-S V0894
32 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 2 Male NPTF na 2-11 1/2 na na na na Steel, Chromium-6 Free
32 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 2 Male NPTF na 2-11 1/2 na na na na Stainless Steel
32 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 2 Male Flareless Bite Type 2 na na na na na Steel, Chromium-6 Free
32 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 2 Male SAE-ORB na 2 1/2-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
32 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 2 Male SAE-ORB na 2 1/2-12 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
32 F5BU-S V0894
32 FBU-S Straight Tube to NPT Male Flareless Bite Type 2 Male NPTF na 2-11 1/2 na na na na Steel, Chromium-6 Free
32 FBU-SS Straight Tube to NPT Male Flareless Bite Type 2 Male NPTF na 2-11 1/2 na na na na Stainless Steel
32 HBU-S Straight Tube to Tube Male Flareless Bite Type 2 Male Flareless Bite Type 2 na na na na na Steel, Chromium-6 Free
32 HBU-SS Straight Tube to Tube Male Flareless Bite Type 2 Male Flareless Bite Type 2 na na na na na Stainless Steel
32 TU-S Ferrule na Flareless Ferrule 2 na na na na na na na Steel, Chromium-6 Free
32 TU-SS Ferrule na Flareless Ferrule 2 na na na na na na na Stainless Steel
4 BU-S Nut na Female Flareless Bite Type 1/4 na na na na na na na Steel, Chromium-6 Free
4 BU-SS Nut na Female Flareless Bite Type 1/4 na na na na na na na Stainless Steel
4 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
4 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
4 C5BU-S V0894
4 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Stainless Steel
4 C5BU-SS FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Fluorocarbon Stainless Steel
4 C5BU-SS V0894
4 C6BU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1/4 Female Flareless Bite Type Swivel 1/4 na na na na 90 Durometer Nitrile Steel, Chromium-6 Free
4 C6BU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 1/4 Female Flareless Bite Type Swivel 1/4 na na na na 90 Durometer Nitrile Stainless Steel
4 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
4 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 na na na na Stainless Steel
4 CC5BU-S 90° Elbow Tube to SAE Straight Thread Long Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
4 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
4 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/8-27 na na na na Stainless Steel
4 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na na na na na Steel, Chromium-6 Free
4 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na na na na na Stainless Steel
4 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
4 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
4 F5BU-S V0894
4 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Stainless Steel
4 F5BU-SS FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Fluorocarbon Stainless Steel
4 F5BU-SS V0894
4 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
4 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 na na na na Stainless Steel
4 FNU-S Cap na Female Flareless Bite Type Swivel 1/4 na na na na na na na Steel, Chromium-6 Free
4 FNU-SS Cap na Female Flareless Bite Type Swivel 1/4 na na na na na na na Stainless Steel
4 GBU-S Straight Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
4 GBU-SS Straight Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/8-27 na na na na Stainless Steel
4 HBU-S Straight Tube to Tube Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na na na na na Steel, Chromium-6 Free
4 HBU-SS Straight Tube to Tube Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na na na na na Stainless Steel
4 JBU-S Tee Union Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male Flareless Bite Type 1/4 na na Steel, Chromium-6 Free
4 JBU-SS Tee Union Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male Flareless Bite Type 1/4 na na Stainless Steel
4 KBU-S Cross Union Cross Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male Flareless Bite Type 1/4 na na Steel, Chromium-6 Free
4 KBU-SS Cross Union Cross Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male Flareless Bite Type 1/4 na na Stainless Steel
4 MBU-S Tee Run Tee Male Flareless Bite Type 1/4 Female NPTF na 1/8-27 Male Flareless Bite Type 1/4 na na Steel, Chromium-6 Free
4 MBU-SS Tee Run Tee Male Flareless Bite Type 1/4 Female NPTF na 1/8-27 Male Flareless Bite Type 1/4 na na Stainless Steel
4 OBU-S Tee Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Female NPT na 1/8-27 na Steel, Chromium-6 Free
4 OBU-SS Tee Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Female NPT na 1/8-27 na Stainless Steel
4 PNU-S Plug na Male Flareless Bite Type 1/4 na na na na na na na Steel, Chromium-6 Free
4 PNU-SS Plug na Male Flareless Bite Type 1/4 na na na na na na na Stainless Steel
4 R5BU-S Tee Straight Thread Run Tee Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 Male Flareless Bite Type 1/4 na 90 Durometer Nitrile Steel, Chromium-6 Free
4 R5BU-S FKM Tee Straight Thread Run Tee Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 Male Flareless Bite Type 1/4 na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
4 R5BU-S V0894
4 R5BU-SS Tee Straight Thread Run Tee Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 Male Flareless Bite Type 1/4 na 90 Durometer Nitrile Stainless Steel
4 R6BU-S Tee Swivel Nut Run Tee Male Flareless Bite Type 1/4 Female Flareless Swivel 1/4 na Male Flareless Bite Type 1/4 na na Steel, Chromium-6 Free
4 R6BU-SS Tee Swivel Nut Run Tee Male Flareless Bite Type 1/4 Female Flareless Swivel 1/4 na Male Flareless Bite Type 1/4 na na Stainless Steel
4 RBU-S Tee Run Tee Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 Male Flareless Bite Type 1/4 na na Steel, Chromium-6 Free
4 RBU-SS Tee Run Tee Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 Male Flareless Bite Type 1/4 na na Stainless Steel
4 S5BU-S Tee Straight Thread Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male SAE-ORB na 7/16-20 90 Durometer Nitrile Steel, Chromium-6 Free
4 S5BU-S FKM Tee Straight Thread Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male SAE-ORB na 7/16-20 90 Durometer Fluorocarbon Steel, Chromium-6 Free
4 S5BU-S V0894
4 S5BU-SS Tee Straight Thread Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male SAE-ORB na 7/16-20 90 Durometer Nitrile Stainless Steel
4 S6BU-S Tee Swivel Nut Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Female Flareless Swivel 1/4 na na Steel, Chromium-6 Free
4 S6BU-SS Tee Swivel Nut Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Female Flareless Swivel 1/4 na na Stainless Steel
4 SBU-S Tee Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Male NPT na 1/8-27 na Steel, Chromium-6 Free
4 TU-S Ferrule na Flareless Ferrule 1/4 na na na na na na na Steel, Chromium-6 Free
4 TU-SS Ferrule na Flareless Ferrule 1/4 na na na na na na na Stainless Steel
4 V5BU-S 45° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
4 V5BU-SS 45° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Stainless Steel
4 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
4 VBU-SS 45° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/8-27 na na na na Stainless Steel
4 WBU-S Straight Bulkhead Union Male Flareless Bite Type 1/4 Male Flareless Bite Type Bulkhead 1/4 na na na na na Steel, Chromium-6 Free
4 WBU-SS Straight Bulkhead Union Male Flareless Bite Type 1/4 Male Flareless Bite Type Bulkhead 1/4 na na na na na Stainless Steel
4-4 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
4-4 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 na na na na Stainless Steel
4-4 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
4-4 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/4-18 na na na na Stainless Steel
4-4 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
4-4 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 na na na na Stainless Steel
4-4 GBU-S Straight Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
4-4 GBU-SS Straight Tube to NPT Male Flareless Bite Type 1/4 Female NPTF na 1/4-18 na na na na Stainless Steel
4-4 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
4-4 VBU-SS 45° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 na na na na Stainless Steel
4-4-4 OBU-S Tee Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Female NPT na 1/4-18 na Steel, Chromium-6 Free
4-4-4 OBU-SS Tee Branch Tee Male Flareless Bite Type 1/4 Male Flareless Bite Type 1/4 na Female NPT na 1/4-18 na Stainless Steel
4-4-4 RBU-S Tee Run Tee Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 Male Flareless Bite Type 1/4 na na Steel, Chromium-6 Free
4-4-4 RBU-SS Tee Run Tee Male Flareless Bite Type 1/4 Male NPTF na 1/4-18 Male Flareless Bite Type 1/4 na na Stainless Steel
4-5 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 1/2-20 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
4-5 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 1/2-20 na na na 90 Durometer Nitrile Stainless Steel
4-6 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
4-6 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 3/8-18 na na na na Stainless Steel
4-6 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 9/16 - 18 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
4-6 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 9/16 - 18 na na na 90 Durometer Nitrile Stainless Steel
4-6 F5BU-SS FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/4 Male SAE-ORB na 9/16 - 18 na na na 90 Durometer Fluorocarbon Stainless Steel
4-6 F5BU-SS V0894
4-6 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
4-6 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 3/8-18 na na na na Stainless Steel
4-8 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
4-8 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/4 Male NPTF na 1/2-14 na na na na Stainless Steel
5 BU-S Nut na Female Flareless Bite Type 5/16 na na na na na na na Steel, Chromium-6 Free
5 BU-SS Nut na Female Flareless Bite Type 5/16 na na na na na na na Stainless Steel
5 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 5/16 Male SAE-ORB na 1/2-20 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
5 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 5/16 Male SAE-ORB na 1/2-20 na na na 90 Durometer Nitrile Stainless Steel
5 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
5 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/8-27 na na na na Stainless Steel
5 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 5/16 Female NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
5 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 5/16 Male Flareless Bite Type 5/16 na na na na na Steel, Chromium-6 Free
5 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 5/16 Male SAE-ORB na 1/2-20 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
5 FBU-S Straight Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
5 FBU-SS Straight Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/8-27 na na na na Stainless Steel
5 FNU-S Cap na Female Flareless Bite Type Swivel 5/16 na na na na na na na Steel, Chromium-6 Free
5 GBU-S Straight Tube to NPT Male Flareless Bite Type 5/16 Female NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
5 HBU-S Straight Tube to Tube Male Flareless Bite Type 5/16 Male Flareless Bite Type 5/16 na na na na na Steel, Chromium-6 Free
5 HBU-SS Straight Tube to Tube Male Flareless Bite Type 5/16 Male Flareless Bite Type 5/16 na na na na na Stainless Steel
5 JBU-S Tee Union Tee Male Flareless Bite Type 5/16 Male Flareless Bite Type 5/16 na Male Flareless Bite Type 5/16 na na Steel, Chromium-6 Free
5 JBU-SS Tee Union Tee Male Flareless Bite Type 5/16 Male Flareless Bite Type 5/16 na Male Flareless Bite Type 5/16 na na Stainless Steel
5 PNU-S Plug na Male Flareless Bite Type 5/16 na na na na na na na Steel, Chromium-6 Free
5 RBU-S Tee Run Tee Male Flareless Bite Type 5/16 Male NPTF na 1/8-27 Male Flareless Bite Type 5/16 na na Steel, Chromium-6 Free
5 TU-S Ferrule na Flareless Ferrule 5/16 na na na na na na na Steel, Chromium-6 Free
5 TU-SS Ferrule na Flareless Ferrule 5/16 na na na na na na na Stainless Steel
5 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
5-4 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
5-4 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/4-18 na na na na Stainless Steel
5-4 FBU-S Straight Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
5-4 FBU-SS Straight Tube to NPT Male Flareless Bite Type 5/16 Male NPTF na 1/4-18 na na na na Stainless Steel
6 BU-S Nut na Female Flareless Bite Type 3/8 na na na na na na na Steel, Chromium-6 Free
6 BU-SS Nut na Female Flareless Bite Type 3/8 na na na na na na na Stainless Steel
6 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9-16-18 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
6 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9-16-18 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
6 C5BU-S V0894
6 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9-16-18 na na na 90 Durometer Nitrile Stainless Steel
6 C5BU-SS FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9-16-18 na na na 90 Durometer Fluorocarbon Stainless Steel
6 C5BU-SS V0894
6 C6BU-S 90° Elbow Tube to Tube Male Flareless Bite Type 3/8 Female Flareless Bite Type Swivel 3/8 na na na na 90 Durometer Nitrile Steel, Chromium-6 Free
6 C6BU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 3/8 Female Flareless Bite Type Swivel 3/8 na na na na 90 Durometer Nitrile Stainless Steel
6 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
6 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 na na na na Stainless Steel
6 CC5BU-S 90° Elbow Tube to SAE Straight Thread Long Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
6 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
6 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 1/4-18 na na na na Stainless Steel
6 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na na na na na Steel, Chromium-6 Free
6 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na na na na na Stainless Steel
6 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
6 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
6 F5BU-S V0894
6 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 na na na 90 Durometer Nitrile Stainless Steel
6 F5BU-SS FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 na na na 90 Durometer Fluorocarbon Stainless Steel
6 F5BU-SS V0894
6 FBU-S Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
6 FBU-SS Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 na na na na Stainless Steel
6 FNU-S Cap na Female Flareless Bite Type Swivel 3/8 na na na na na na na Steel, Chromium-6 Free
6 FNU-SS Cap na Female Flareless Bite Type Swivel 3/8 na na na na na na na Stainless Steel
6 GBU-S Straight Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
6 GBU-SS Straight Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 1/4-18 na na na na Stainless Steel
6 HBU-S Straight Tube to Tube Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na na na na na Steel, Chromium-6 Free
6 HBU-SS Straight Tube to Tube Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na na na na na Stainless Steel
6 JBU-S Tee Union Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Male Flareless Bite Type 3/8 na na Steel, Chromium-6 Free
6 JBU-SS Tee Union Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Male Flareless Bite Type 3/8 na na Stainless Steel
6 KBU-S Cross Union Cross Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Male Flareless Bite Type 3/8 na na Steel, Chromium-6 Free
6 KBU-SS Cross Union Cross Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Male Flareless Bite Type 3/8 na na Stainless Steel
6 MBU-S Tee Run Tee Male Flareless Bite Type 3/8 Female NPTF na 1/4-18 Male Flareless Bite Type 3/8 na na Steel, Chromium-6 Free
6 OBU-S Tee Branch Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Female NPT na 1/4-18 na Steel, Chromium-6 Free
6 OBU-SS Tee Branch Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Female NPT na 1/4-18 na Stainless Steel
6 PNU-S Plug na Male Flareless Bite Type 3/8 na na na na na na na Steel, Chromium-6 Free
6 PNU-SS Plug na Male Flareless Bite Type 3/8 na na na na na na na Stainless Steel
6 R5BU-S Tee Straight Thread Run Tee Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 Male Flareless Bite Type 3/8 na 90 Durometer Nitrile Steel, Chromium-6 Free
6 R5BU-SS Tee Straight Thread Run Tee Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 Male Flareless Bite Type 3/8 na 90 Durometer Nitrile Stainless Steel
6 R6BU-S Tee Swivel Nut Run Tee Male Flareless Bite Type 3/8 Female Flareless Swivel 3/8 na Male Flareless Bite Type 3/8 na na Steel, Chromium-6 Free
6 R6BU-SS Tee Swivel Nut Run Tee Male Flareless Bite Type 3/8 Female Flareless Swivel 3/8 na Male Flareless Bite Type 3/8 na na Stainless Steel
6 RBU-S Tee Run Tee Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 Male Flareless Bite Type 3/8 na na Steel, Chromium-6 Free
6 RBU-SS Tee Run Tee Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 Male Flareless Bite Type 3/8 na na Stainless Steel
6 S5BU-S Tee Straight Thread Branch Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Male SAE-ORB na 9/16-18 90 Durometer Nitrile Steel, Chromium-6 Free
6 S5BU-SS Tee Straight Thread Branch Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Male SAE-ORB na 9/16-18 90 Durometer Nitrile Stainless Steel
6 S6BU-S Tee Swivel Nut Branch Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Female Flareless Swivel 3/8 na na Steel, Chromium-6 Free
6 S6BU-SS Tee Swivel Nut Branch Tee Male Flareless Bite Type 3/8 Male Flareless Bite Type 3/8 na Female Flareless Swivel 3/8 na na Stainless Steel
6 TU-S Ferrule na Flareless Ferrule 3/8 na na na na na na na Steel, Chromium-6 Free
6 TU-SS Ferrule na Flareless Ferrule 3/8 na na na na na na na Stainless Steel
6 V5BU-S 45° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
6 V5BU-SS 45° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 9/16-18 na na na 90 Durometer Nitrile Stainless Steel
6 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
6 VBU-SS 45° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/4-18 na na na na Stainless Steel
6 WBU-S Straight Bulkhead Union Male Flareless Bite Type 3/8 Male Flareless Bite Type Bulkhead 3/8 na na na na na Steel, Chromium-6 Free
6 WBU-SS Straight Bulkhead Union Male Flareless Bite Type 3/8 Male Flareless Bite Type Bulkhead 3/8 na na na na na Stainless Steel
6 WEBU-S 90° Elbow Bulkhead Union Elbow Male Flareless Bite Type 3/8 Male Flareless Bite Type Bulkhead 3/8 na na na na na Steel, Chromium-6 Free
6-2 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
6-2 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/8-27 na na na na Stainless Steel
6-2 FBU-S Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/8-27 na na na na Steel, Chromium-6 Free
6-2 FBU-SS Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/8-27 na na na na Stainless Steel
6-4 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 7/16-20 na na na 90 Durometer Nitrile Stainless Steel
6-4 HBU-S Straight Tube to Tube Male Flareless Bite Type 3/8 Male Flareless Bite Type 1/4 na na na na na Steel, Chromium-6 Free
6-4 HBU-SS Straight Tube to Tube Male Flareless Bite Type 3/8 Male Flareless Bite Type 1/4 na na na na na Stainless Steel
6-4 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 3/8 Female Flareless Swivel 1/4 na na na na na Steel, Chromium-6 Free
6-4 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 3/8 Female Flareless Swivel 1/4 na na na na na Stainless Steel
6-6 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
6-6 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 3/8-18 na na na na Stainless Steel
6-6 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
6-6 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 3/8-18 na na na na Stainless Steel
6-6 FBU-S Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
6-6 FBU-SS Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 3/8-18 na na na na Stainless Steel
6-6 GBU-S Straight Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
6-6 GBU-SS Straight Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 3/8-18 na na na na Stainless Steel
6-8 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
6-8 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 3/4-16 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
6-8 C5BU-S V0894
6-8 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
6-8 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/2-14 na na na na Stainless Steel
6-8 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
6-8 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 3/8 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Stainless Steel
6-8 FBU-S Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
6-8 FBU-SS Straight Tube to NPT Male Flareless Bite Type 3/8 Male NPTF na 1/2-14 na na na na Stainless Steel
6-8 GBU-S Straight Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
6-8 GBU-SS Straight Tube to NPT Male Flareless Bite Type 3/8 Female NPTF na 1/2-14 na na na na Stainless Steel
8 BU-S Nut na Female Flareless Bite Type 1/2 na na na na na na na Steel, Chromium-6 Free
8 BU-SS Nut na Female Flareless Bite Type 1/2 na na na na na na na Stainless Steel
8 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
8 C5BU-S V0894
8 C5BU-SS 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Stainless Steel
8 C5BU-SS FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Fluorocarbon Stainless Steel
8 C5BU-SS V0894
8 C6BU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1/2 Female Flareless Bite Type Swivel 1/2 na na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8 C6BU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 1/2 Female Flareless Bite Type Swivel 1/2 na na na na 90 Durometer Nitrile Stainless Steel
8 C6U-SS 90° Elbow Swivel Nut Elbow Male Flareless Bite Type - No Nut 1/2 Female Flareless Bite Type Swivel 1/2 na na na na na Stainless Steel
8 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
8 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/8-18 na na na na Stainless Steel
8 CC5BU-S 90° Elbow Tube to SAE Straight Thread Long Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
8 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 3/8-18 na na na na Stainless Steel
8 EBU-S 90° Elbow Tube to Tube Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na na na na na Steel, Chromium-6 Free
8 EBU-SS 90° Elbow Tube to Tube Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na na na na na Stainless Steel
8 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8 F5BU-S FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
8 F5BU-S V0894
8 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Stainless Steel
8 F5BU-SS FKM Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Fluorocarbon Stainless Steel
8 F5BU-SS V0894
8 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
8 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/8-18 na na na na Stainless Steel
8 FNU-S Cap na Female Flareless Bite Type Swivel 1/2 na na na na na na na Steel, Chromium-6 Free
8 FNU-SS Cap na Female Flareless Bite Type Swivel 1/2 na na na na na na na Stainless Steel
8 GBU-S Straight Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
8 GBU-SS Straight Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 3/8-18 na na na na Stainless Steel
8 HBU-S Straight Tube to Tube Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na na na na na Steel, Chromium-6 Free
8 HBU-SS Straight Tube to Tube Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na na na na na Stainless Steel
8 JBU-S Tee Union Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male Flareless Bite Type 1/2 na na Steel, Chromium-6 Free
8 JBU-SS Tee Union Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male Flareless Bite Type 1/2 na na Stainless Steel
8 KBU-S Cross Union Cross Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male Flareless Bite Type 1/2 na na Steel, Chromium-6 Free
8 KBU-SS Cross Union Cross Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male Flareless Bite Type 1/2 na na Stainless Steel
8 MBU-S Tee Run Tee Male Flareless Bite Type 1/2 Female NPTF na 3/8-18 Male Flareless Bite Type 1/2 na na Steel, Chromium-6 Free
8 MBU-SS Tee Run Tee Male Flareless Bite Type 1/2 Female NPTF na 3/8-18 Male Flareless Bite Type 1/2 na na Stainless Steel
8 OBU-S Tee Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Female NPT na 3/8-18 na Steel, Chromium-6 Free
8 OBU-SS Tee Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Female NPT na 3/8-18 na Stainless Steel
8 PNU-S Plug na Male Flareless Bite Type 1/2 na na na na na na na Steel, Chromium-6 Free
8 PNU-SS Plug na Male Flareless Bite Type 1/2 na na na na na na na Stainless Steel
8 R5BU-S Tee Straight Thread Run Tee Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 Male Flareless Bite Type 1/2 na 90 Durometer Nitrile Steel, Chromium-6 Free
8 R5BU-SS Tee Straight Thread Run Tee Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 Male Flareless Bite Type 1/2 na 90 Durometer Nitrile Stainless Steel
8 R5BU-SS FKM Tee Straight Thread Run Tee Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 Male Flareless Bite Type 1/2 na 90 Durometer Fluorocarbon Stainless Steel
8 R5BU-SS V0894
8 R6BU-S Tee Swivel Nut Run Tee Male Flareless Bite Type 1/2 Female Flareless Swivel 1/2 na Male Flareless Bite Type 1/2 na na Steel, Chromium-6 Free
8 R6BU-SS Tee Swivel Nut Run Tee Male Flareless Bite Type 1/2 Female Flareless Swivel 1/2 na Male Flareless Bite Type 1/2 na na Stainless Steel
8 R6U-SS Tee Swivel Nut Run Tee Male Flareless Bite Type - No Nut 1/2 Female Flareless Swivel 1/2 na Male Flareless Bite Type - No Nut na 1/2 na Stainless Steel
8 RBU-S Tee Run Tee Male Flareless Bite Type 1/2 Male NPTF na 3/8-18 Male Flareless Bite Type 1/2 na na Steel, Chromium-6 Free
8 S5BU-S Tee Straight Thread Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male SAE-ORB na 3/4-16 90 Durometer Nitrile Steel, Chromium-6 Free
8 S5BU-S FKM Tee Straight Thread Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male SAE-ORB na 3/4-16 90 Durometer Fluorocarbon Steel, Chromium-6 Free
8 S5BU-S V0894
8 S5BU-SS Tee Straight Thread Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male SAE-ORB na 3/4-16 90 Durometer Nitrile Stainless Steel
8 S6BU-S Tee Swivel Nut Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Female Flareless Swivel 1/2 na na Steel, Chromium-6 Free
8 S6BU-SS Tee Swivel Nut Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Female Flareless Swivel 1/2 na na Stainless Steel
8 TU-S Ferrule na Flareless Ferrule 1/2 na na na na na na na Steel, Chromium-6 Free
8 TU-SS Ferrule na Flareless Ferrule 1/2 na na na na na na na Stainless Steel
8 V5BU-S 45° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 3/4-16 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8 VBU-S 45° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/8-18 na na na na Steel, Chromium-6 Free
8 VBU-SS 45° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/8-18 na na na na Stainless Steel
8 WBU-S Straight Bulkhead Union Male Flareless Bite Type 1/2 Male Flareless Bite Type Bulkhead 1/2 na na na na na Steel, Chromium-6 Free
8 WBU-SS Straight Bulkhead Union Male Flareless Bite Type 1/2 Male Flareless Bite Type Bulkhead 1/2 na na na na na Stainless Steel
8 WEBU-S 90° Elbow Bulkhead Union Elbow Male Flareless Bite Type 1/2 Male Flareless Bite Type Bulkhead 1/2 na na na na na Steel, Chromium-6 Free
8-10 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8-10 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8-10 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 7/8-14 na na na 90 Durometer Nitrile Stainless Steel
8-12 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8-12 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
8-12 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8-12 F5BU-SS Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 1 1/16-12 na na na 90 Durometer Nitrile Stainless Steel
8-12 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/4-14 na na na na Steel, Chromium-6 Free
8-12 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 3/4-14 na na na na Stainless Steel
8-4 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
8-4 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/4-18 na na na na Stainless Steel
8-4 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
8-4 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/4-18 na na na na Stainless Steel
8-4 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
8-4 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/4-18 na na na na Stainless Steel
8-4 GBU-S Straight Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/4-18 na na na na Steel, Chromium-6 Free
8-4 GBU-SS Straight Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/4-18 na na na na Stainless Steel
8-4 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1/2 Female Flareless Swivel 1/4 na na na na na Steel, Chromium-6 Free
8-4 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 1/2 Female Flareless Swivel 1/4 na na na na na Stainless Steel
8-6 C5BU-S 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 9/16-18 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8-6 C5BU-S FKM 90° Elbow Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 9/16-18 na na na 90 Durometer Fluorocarbon Steel, Chromium-6 Free
8-6 C5BU-S V0894
8-6 F5BU-S Straight Tube to SAE Straight Thread Male Flareless Bite Type 1/2 Male SAE-ORB na 9/16-18 na na na 90 Durometer Nitrile Steel, Chromium-6 Free
8-6 TRBU-S Straight Tube End Reducer Male Flareless Bite Type 1/2 Female Flareless Swivel 3/8 na na na na na Steel, Chromium-6 Free
8-6 TRBU-SS Straight Tube End Reducer Male Flareless Bite Type 1/2 Female Flareless Swivel 3/8 na na na na na Stainless Steel
8-8 CBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
8-8 CBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/2-14 na na na na Stainless Steel
8-8 DBU-S 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
8-8 DBU-SS 90° Elbow Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/2-14 na na na na Stainless Steel
8-8 FBU-S Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
8-8 FBU-SS Straight Tube to NPT Male Flareless Bite Type 1/2 Male NPTF na 1/2-14 na na na na Stainless Steel
8-8 GBU-S Straight Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/2-14 na na na na Steel, Chromium-6 Free
8-8 GBU-SS Straight Tube to NPT Male Flareless Bite Type 1/2 Female NPTF na 1/2-14 na na na na Stainless Steel
8-8-6 JBU-S Tee Union Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male Flareless Bite Type 3/8 na na Steel, Chromium-6 Free
8-8-8 OBU-S Tee Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Female NPT na 1/2-14 na Steel, Chromium-6 Free
8-8-8 RBU-S Tee Run Tee Male Flareless Bite Type 1/2 Male NPTF na 1/2-14 Male Flareless Bite Type 1/2 na na Steel, Chromium-6 Free
8-8-8 RBU-SS Tee Run Tee Male Flareless Bite Type 1/2 Male NPTF na 1/2-14 Male Flareless Bite Type 1/2 na na Stainless Steel
8-8-8 SBU-S Tee Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male NPT na 1/2-14 na Steel, Chromium-6 Free
8-8-8 SBU-SS Tee Branch Tee Male Flareless Bite Type 1/2 Male Flareless Bite Type 1/2 na Male NPT na 1/2-14 na Stainless Steel
