Tube Fabrication Equipment

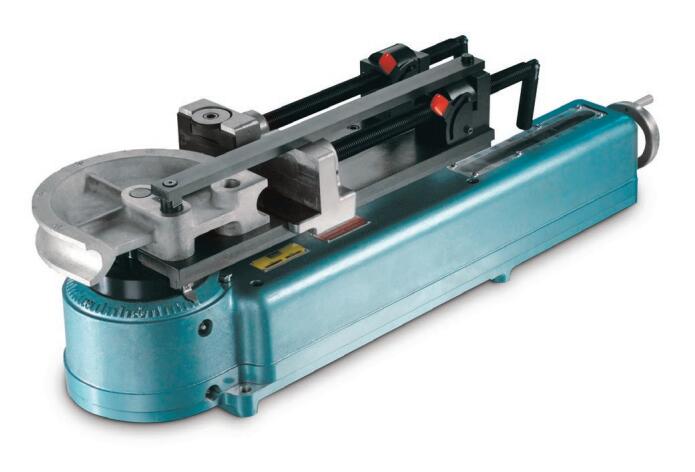

Hydraulic Bender

Parker's hydraulic bender is capable of bending tube up to 2" and 50mm O.D., as well as pipe up to 1 1/2".

Parker's hydraulic tube bender, HB632, is powered by 10,000 psi of pressure to bend steel and stainless steel tube up to 2” and 50mm O.D., and pipe up to 1 ?”. The hydraulic power, size capabilities and accurate bends make this draw bender a great choice for high production bending.

Hydraulic Bender

Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Transportation
- Alternative Energy
- Off-Shore/Oil & Gas

Features/Benefits:
- The clamp vise arm features a quick release speed screw for positioning the required clamp block.
- The hydraulically actuated drive mechanism enables the operator to make bends up to 180° in one continuous smooth operation on tubing up to 2” in diameter.
- An adjustable stop ensures the accuracy of bends by controlling the degree of the bend to a maximum of 180° and graduated in 1° increments.
- Close second bends can also be performed in either direction.
- Bends steel and stainless steel of tube in sizes 3/8” up to 2” and 10mm up to 50mm, as well as pipe in sizes 3/8” up to 1 ?”.

Applications:
- Bending metal tube for industrial and mobile applications

Technical Characteristics:
- Minimum components required with the HB32 bender are a hose assembly, hydraulic pump, and a radius slide and clamp block, which match the tube/pipe O.D. to be bent.
- Radius blocks for 1 ?” through 2” O.D. require an adapter plate.
- The maximum bend angle is 180° with radii from 1 ?” to 8”.
- If mandrels are used, the HB632 hydraulic bender must be bolted to a table, and will also require the use of a mandrel rod and mandrel rod stop assembly which holds and supports the end of the mandrel rod in alignment with the tubing.
- Requires a hydraulic pump which is sold separately.

Technical Specifications

Hydraulic Bender 型号

631050
