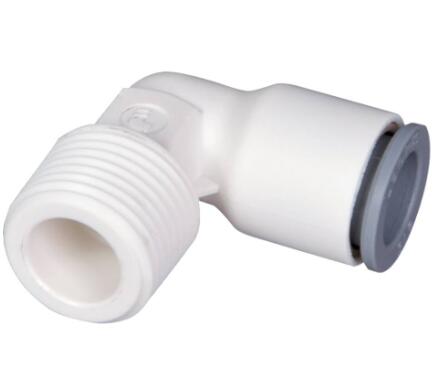

LIQUIfit Fittings
Parker's LIQUIfit fitings ensure reliable and compact connections for liquid transfer applications. LIQUIfit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed.
Being the world's leader in push-to-connect fitting technology Parker's Legris LIQUIfit push fit tube fittings extend Parker's expertise into the water and beverage industry. The LIQUIfit body is manufactured from a unique bio-based, high performance polymer produced from renewable plants, to expand the use of non-fossil-based resources. LIQUIfit quick connect water fittings offer an ”eco-designed” innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed.
Use with the following Parker Parflex Division tubing.
- Polyethylene
- Polypropylene
- Nylon
Markets:
- Water Filtration
- Beverage Dispensing
- Life Science
- Bottling
- Semi-Conductor
- Medical
Features and Benefits:
- Stainless steel grab ring
- EPDM D-seal
- Meets requirements of FDA, NSF 51 and NSF 61
- D-seal provides a positive seal on the O.D. of the tube , in both static and dynamic positions
- High chemical resistance
- Reduced movement of the gripping system prevents any pumping effect
- No tube insert or locking clip required
- Advanced gripping design allows a tight bend radius without leaks
- Most compact profile on the market
- Ergonomic and aesthetic design
- Easy-to-clean external shapes
- Inch & metric sizes, 5/32" - 1/2", 4mm - 12mm
- NPTF, UNS, BST threads
Applications:
- Water Purification Systems
- Water Dispensers
- Hot & Cold Drink Dispensers
- Cooling Systems
- Food Process
- CO2
Value:
Parker Hannifin's Fluid System Connectors Division's patented D-Seal technology provides superior sealing protection to enhance the tube connection, prolonging the fitting, resulting in increased OEM revenues by extending equipment life.
Technical Specifications
| Shape: |
90? Elbow, Tee, Union, Cross, Connector, Bulkhead, Faucet Connector, Plug, Union Y, Cap, Tube Reducer, Plug-in 45? Elbow, Plug-in 90? Elbow, Plug-in Run Tee, Plug-in Branch Tee, Swivel Run Tee, Swivel Branch Tee, 90? Swivel Elbow, Adapter, Swivel Y Connector |
| Connection Type: |
Push-to-Push, Tube Stem and Thread, NPTF, BSPT, BSPP |
| Minimum Operating Temperature: |
35 °F, 2 °C |
| Maximum Operating Temperature: |
200 to 265 °F, 93 to 130 °C |
| Maximum Operating Pressure: |
230 psi, 15 bar |
| Tube Material: |
Polyethylene, Polypropylene |
| Media: |
Water, Beverages, CO2 |
| Application: |
Water Purification, Water/Beverage Dispensing, Food Process, Medical |
| Specifications Met: |
DI: 2002/95/EC (RoHS), 2011/65/EC, RG: 1935/2004/EC, FDA: 21 CFR, NSF 51 at 95°C, NSF/ANSI 61 - C HOT, DM 174, KTW, WRAS, ACSDI: 2002/95/EC (RoHS), 2011/65/EC, RG: 1935/2004/EC, FDA: 21 CFR, NSF 51 at 95°C, NSF/ANSI 61 - C HOT, DM 174, KTW, WRAS, ACS |
| Materials of Construction: |
Body: Bio-based Polymer or POM POLYMER, Seal: EPDM |
| Seal Material: |
EPDM |
| Gripping Ring Material: |
Stainless Steel |
| Product Style: |
Tube to Tube, Tube to Female Pipe, Barb to Tube Stem, Tube to Female UNS, Tube, Tube to Tube Stem, Tube to Pipe, Standpipe to Pipe |
| Connection 1 Tube Outside Diameter: |
5/32, to 1/2 inch, 4 to 12 mm |
| Connection 1 Tube Stem Outside Diameter: |
5/16 to 1/2 inch, 6 to 12 mm |
| Connection 1 Size: |
Push-to-Connect, Tube Stem |
| Connection 2 Tube Outside Diameter: |
5/32 to 1/2 inch, 4 to 14 mm |
| Connection 2 Hose Inside Diameter: |
5/16 to 3/8 inch, 6 to 8 mm |
| Connection 2 Tube Stem Outside Diameter: |
5/16 to 1/2 inch, 4 to 12 mm |
| Connection 2 Thread Size: |
1/4 to 1/2 inch, 1/8 to 1/2 mm |
| Connection 2 Size: |
Push-to-Connect, Female BSPT, Female Pipe, Barb, UNS, na, Tube Stem, Male BSPT, Male Pipe, Male BSPP |
|
