Parflange Pro 50 Flaring and Flanging System
Parker's Parflange Pro 50 provides high production, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings.
Parker's Parflange? Pro 50 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, this high production machine produces high-quality, consistent flanges and flares with a smooth mating surface in less than 15 seconds. Parflange technology creates a competitive advantage for our customers through fast, consistent, and reliable leak-free connections which result in reduced costs and additional revenue.

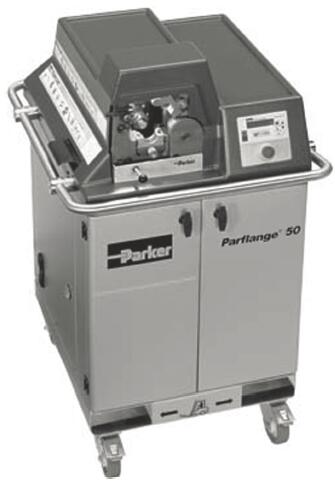

Parflange Pro 50 Flaring and Flanging System
Features/Benefits:
- Produces a high-quality flange with smooth mating surface in less than 15 seconds (up to 1 ?” OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end.
- This high production machine features an automatic die-clamping mechanism, an automatic tool lubrications system and an automatic cycle start enhancement that is triggered by full tube insertion into the die housing.
- An automatic sleeve loader option is available upon request.
- Convenient workstation setup with tooling cabinet below the unit.
- Flanges and flares steel and stainless steel tube from ?” up to 1 ?” OD.
- Also flanges stainless steel coiled tube sizes common in CNG applications.
Applications:
- Flanging and flaring steel and stainless steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications.
Technical Characteristics:
- Available in 440-volt 3-phase.
- Dimensions are 33” x 28” x 41” and weighs 836 lbs.
Technical Specifications
Size: |
1/4 to 1-1/2 inch, 6 - 50 mm |
| Product Type: |
Flaring Tool, Flanging Tool |
| Tube Material: |
Steel and Stainless Steel |
| Input Voltage: |
440V 3-Phase, 50 Hz, 4.5 kW V |
| Flange Tube Size Range: |
Steel Tube: ? x .028 through 1 ? x .188 and Stainless Steel Tube: ? x .028 through 1 1/2 X .120 inch, Steel Tube: 6 x 1 through 38 x 4 and Stainless Steel Tube: Please contact the Tube Fittings Division for available tooling mm |
| Flare Tube Size Range: |
Steel and Stainless Steel Tube: ? x .020 through 1 ? x .120 inch, Steel and Stainless Steel Tube: 6 x 1 through 38 x 4 mm |
| Throughput: |
500 per day |
| Cycle Time: |
15 seconds |
Parflange Pro 50 Flaring and Flanging System 型号
| Part |
Options |
| Pro 50 |
Without Sleeve Feeder |
| Pro 50 W/FEEDER |
With Sleeve Feeder |
|
