Parker Quick Couplings

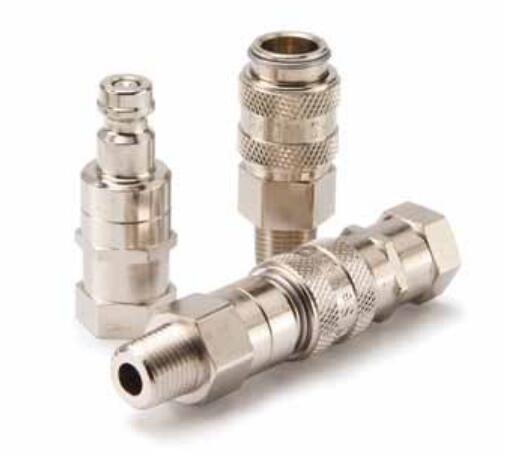

Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Couplers
Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection.
DM Series Couplers (fluid) up to 250 psi connect with DM Series Nipples.
Parker's DM Series are double shut-off, corrosion resistant miniature quick couplings. They offer push to connect operation in a small size. Couplers and nipples are available in 1/8" size only with a pressure rating of 250 psi.
Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Couplers
Technical Characteristics:
- Sizes: 1/8”
- Materials: Nickel Plated Brass
- Port Ends: Female NPTF, Male NPTF
- Seal: Fluorocarbon
Markets:
- Medical device
- Semiconductor
Features/Benefits:
- Brass bodies are nickel plated to increase corrosion resistance and chemical compatibility
- Fluorocarbon seals are compatible with many fluids
- Easy push to connect operation
- Compact size
Applications:
- Dental equipment
- Lubrication lines
- Fluid transfer
- Coolant lines
Technical Specifications
| Application: |
Fluids and gases, low pressure |
| Maximum Operating Pressure: |
250 psi, 17 bar |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
204 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Body Size: |
1/8 inch |
| Flow Rate: |
0.8 Gal/min |
| Seal Material: |
Fluorocarbon |
| Media: |
Fluid or gas |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
250 °F |
| Valve Type: |
Poppet |
| Connection Type: |
1/8 |
| Plating Type: |
1 to 8 |
| Sleeve Type: |
1/8 inch |
| Lock Type: |
0.8 |
