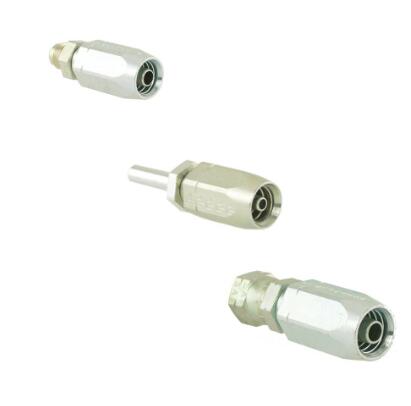

Parflex 51 Series Hose Fittings
Parker's 51 Series fittings can be used with 510A, 510C and 518C hoses from Parflex division.
Parker's 51 Series fittings can be used with 510A, 510C and 518C hoses from Parflex division. Unlike crimp fittings, Parker's Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. Please note the couplings on these fittings are only intended for use on hoses that have not previously been in service.
Parflex 51 Series Hose Fittings
Markets:
- Construction
- Aerial Lift
- Machine Tool
Features/Benefits:
- No crimper needed for installation
Applications:
- Medium pressure hydraulic service
Technical Specifications
| Port Size: |
0.125 - 1.000 inch |
| Application: |
Various |
| Connection Type: |
Field-Attachable, Pipe, NPTF, 37° Flare, 45° Flare |
| Hose Inside Diameter: |
1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4, 1 inch, 3, 5, 6, 8, 10, 13, 19, 25 mm |
| Materials of Construction: |
Steel, Stainless Steel |
| Shape: |
Straight, 90° |
| Connection Thread Size: |
Varies |
| Length: |
Varies |
| Product Style: |
Crimp (Permanent) |
Parflex 51 Series Hose Fittings 型号
| Part |
Hose I.D. (inch) |
Port Connection (inch) |
Shape |
Style |
| 20151-12-12 |
0.75 |
0.75 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-16-16 |
1 |
1 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-2-3 |
0.1875 |
0.125 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-2-4 |
0.25 |
0.125 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-4-3 |
0.1875 |
0.25 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-4-4 |
0.25 |
0.25 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-4-5 |
0.3125 |
0.25 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-4-6 |
0.375 |
0.25 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-6-5 |
0.3125 |
0.375 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-6-6 |
0.375 |
0.375 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-6-8 |
0.5 |
0.375 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-8-6 |
0.375 |
0.5 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20151-8-8 |
0.5 |
0.5 |
Straight |
Male NPTF Pipe - Rigid - Straight |
| 20351-4-3 |
0.1875 |
0.25 |
Straight |
Male JIC 37° - Rigid - Straight |
| 20351-5-4 |
0.25 |
0.313 |
Straight |
Male JIC 37° - Rigid - Straight |
| 20351-6-5 |
0.3125 |
0.375 |
Straight |
Male JIC 37° - Rigid - Straight |
| 20351-6-6 |
0.375 |
0.375 |
Straight |
Male JIC 37° - Rigid - Straight |
| 20351-8-6 |
0.375 |
0.5 |
Straight |
Male JIC 37° - Rigid - Straight |
| 20351-8-8 |
0.5 |
0.5 |
Straight |
Male JIC 37° - Rigid - Straight |
| 20651-10-8 |
0.5 |
0.625 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-12-12 |
0.75 |
0.75 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-16-16 |
1 |
1 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-4-3 |
0.1875 |
0.25 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-4-4 |
0.25 |
0.25 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-5-4 |
0.25 |
0.313 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-6-4 |
0.25 |
0.375 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-6-5 |
0.3125 |
0.375 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-6-6 |
0.375 |
0.375 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-8-6 |
0.375 |
0.5 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20651-8-8 |
0.5 |
0.5 |
Straight |
Female JIC 37° - Swivel - Straight |
| 20851-6-6 |
0.375 |
0.375 |
Straight |
Female SAE 45° - Swivel - Straight |
| 23951-4-3 |
0.1875 |
0.25 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 23951-6-6 |
0.375 |
0.375 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 23951-8-6 |
0.375 |
0.5 |
90° Elbow - Short Drop |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
| 2J951-4-4 |
0.25 |
0.25 |
90° Elbow |
Seal-lok 90° Elbow |
| 2JC51-4-4 |
0.25 |
0.25 |
Straight |
Seal-lok Female SAE Swivel |
|
