Compression Fittings

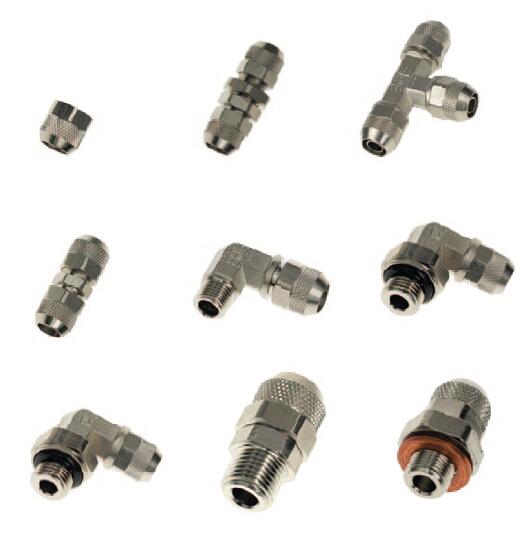

PL Nickel-Plated Brass Spigot Fittings
This range of Parker Legris has a sealing system which guarantees excellent sealing and full flow.
PL fittings for flexible tubing are fully re-usable. They provide excellent compatibility with a wide variety of fluids.
This range of Parker Legris has a sealing system which guarantees excellent sealing and full flow.
PL fittings for flexible tubing are fully re-usable. They provide excellent compatibility with a wide variety of fluids.
PL Nickel-Plated Brass Spigot Fittings
Features/Benefits:
- Rapid Assembly
- Nut design allows hand tightening with soft tubing (PU, Pe etc.)
- Quick to assemble and disassemble
- Compatible with all flexible tubes of hardness up to 90 shore A (polyurethane, polyamide, polyethylene, fluoropolymers, etc.)
- Mechanical stop on the body to prevent overtightening
- Performance
- Special spigot design ensures full flow and excellent tensile performance
- Reliable direct sealing system without the use of a seal or olive
- Low and medium pressure
- Nickel-plated for increased corrosion resistance
Markets:
- Food and Beverage
- Coating / Ink / Paint
- Miscellaneous Manufacturing
- Industrial Chemical Processing
- Lab / Diagnostic
- Rail
Applications:
- Low Pressure Pneumatic Machinery Equipment
- Suitable for Very Low and High Temperatures
Product Types:
- Stud Fitting, Male NPT Thread
- Stud Fitting, Male BSPT Thread
- Stud Fitting, Male BSPP Thread
- Stud Fitting, Male Metric Straight Thread
- Stud Elbow, Male NPT Thread
- Stud Elbow, Male BSPT Thread
- Stud Elbow, Male BSPP Thread
- Stud Elbow, Male Metric Straight Thread
- Stud Run Tee, Male NPT Thread
- Stud Run Tee, Male BSPT Thread
- Stud Branch Tee, Male NPT Thread
- Branch Tee, Male BSPT Thread
- Single Banjo, Male BSPP Thread
- Equal Tube-to-Tube Connector
- Equal Tee
- Equal Bulkhead Connector
- Nut
Technical Characteristics:
- Fluids: Compressed air, other fluids: contacts us
- Materials: nickel-plated brass, silicone free
- Pressure: Vacuum to 40 bar
- Temperature: -40°C to +100°C
Technologies:
- Compression fittings
- Connects to flexible tubing
- Pneumatic fittings
- Spigot fitting
- Stud fitting
Technical Specifications
| Minimum Operating Temperature: |
-40 °C, -40 °F |
| Maximum Operating Pressure: |
4 MPa, 40 bar, 580 psi |
| Maximum Operating Temperature: |
100 °C, 212 °F |
| Tube Outside Diameter: |
4 to 12 mm |
| Tube Inside Diameter: |
2,7 to 10 mm |
| Connection Type: |
Compression |
| Application: |
Food & Beverage, Pneumatics, Automotive Process, Chemical Transfert, Compressed Air/Inert Gas, Vaccum |
| Materials of Construction: |
Nickel Plated Brass, Rubber |
| Shape: |
Straight, 90°, Tee |
| Weight: |
0,009 to 0,096 kg |
