Parker Ball Valves

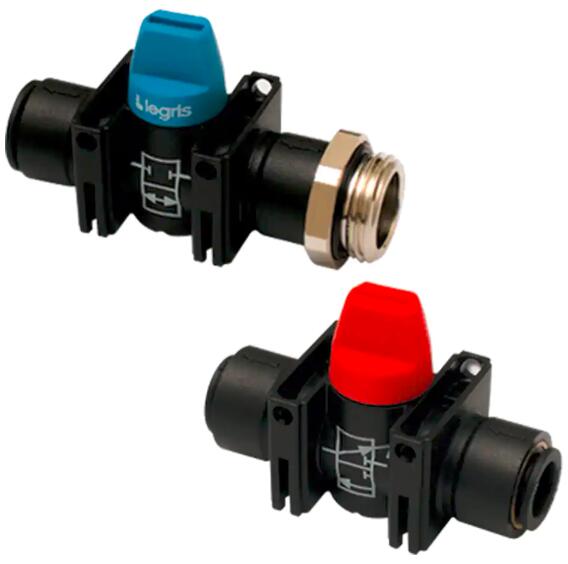

Ball Valves Mini Series
With their push-in connections, these polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
With their push-in connections, these polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Features/Benefits:
- Optimum Solution
- Full flow
- Marked with the pneumatic symbol for identification of its function
- Lightweight and compact
- Extremely compact, easy-to-operate lever
- Lever with screwdriver slot to facilitate operation
- Designed for polymer tubing with no tube preparation
- Can be mounted on a wall or adjacent using staples
- Proven Technology
- LF 3000? push-in connection, excellent static and dynamic sealing
- High-strength polyamide
- Excellent long-term performance
- Automatic seal wear compensation for long-term reliability
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
Markets:
- Factory Automation
- Semiconductor
- Packaging
- Wearing Apparel
Applications:
- Allow/Stop Compressed Air Circulation on Pneumatic Circuits
- Suitable for Vacuum Applications
Technologies:
- Industrial valves
- Mini ball valve
- Mini valve
- Vented valve
Technical Characteristics:
- Fluids: Compressed air
- Materials: technical polymer, brass, nickel-plated brass, NBR, nickel-plated polished brass, graphite-impregnated polyamide, silicone free
- Pressure: Vacuum to 10 bar
- Temperature: -20°C to +80°C
Product Types:
- 2/2 In-Line Mini-Ball Valve
- 2/2 In-Line Mini-Ball Valve, Male BSPP Thread
- 3/2 In-Line Mini-Ball Valve with Vent
- 3/2 In-Line Mini-Ball Valve with Vent, Male BSPP Thread
- Joining Clips
Technical Specifications
| Ball Seal Material: |
NBR |
| Body Material: |
TECHNICAL POLYMER |
| Gripping Ring Material: |
STAINLESS STEEL |
| Handle Type: |
TECHNICAL POLYMER |
| O-Ring Material: |
NBR |
| Stem Material: |
BRASS |
| Stem Seal Material: |
NBR |
| Maximum Operating Pressure: |
10 bar |
| Minimum Operating Temperature: |
-20 °C |
| Maximum Operating Temperature: |
80 °C |
| Quantity per Box: |
5 to 10 |
| Weight: |
0,039 to 0,058 kg |
| Application: |
Robotics, Vacuum, Semi-Conductors, Packaging, Textile, Pneumatics |
| Media: |
Compressed air |

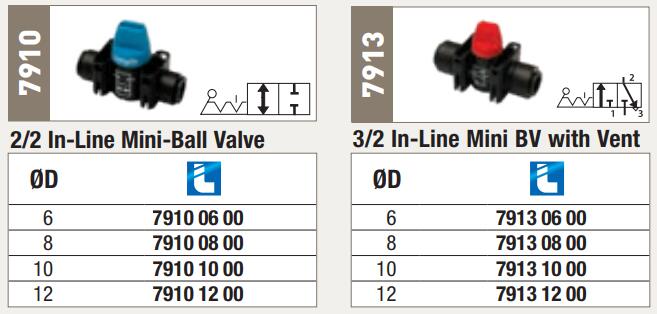

Ball Valves Mini Series 型号
| Part |
Shape |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (inch) |
Connection 2 Tube O.D. (mm) |
| 7910 04 00 |
2/2 in line mini ball valve |
na |
na |
na |
4 |
| 7910 06 00 |
2/2 in line mini ball valve |
na |
na |
na |
6 |
| 7910 08 00 |
2/2 in line mini ball valve |
na |
na |
na |
8 |
| 7910 10 00 |
2/2 in line mini ball valve |
na |
na |
na |
10 |
| 7910 12 00 |
2/2 in line mini ball valve |
na |
na |
na |
12 |
| 7910 60 00 |
2/2 in line mini ball valve |
na |
na |
3/8 |
na |
| 7911 06 10 |
2/2 in line mini ball valve male |
BSPP |
G1/8 |
na |
6 |
| 7911 08 13 |
2/2 in line mini ball valve male |
BSPP |
G1/4 |
na |
8 |
| 7911 10 17 |
2/2 in line mini ball valve male |
BSPP |
G3/8 |
na |
10 |
| 7911 12 21 |
2/2 in line mini ball valve male |
BSPP |
G1/2 |
na |
12 |
| 7913 04 00 |
3/2 in line mini ball valve with vent |
na |
na |
na |
4 |
| 7913 06 00 |
3/2 in line mini ball valve with vent |
na |
na |
na |
6 |
| 7913 08 00 |
3/2 in line mini ball valve with vent |
na |
na |
na |
8 |
| 7913 10 00 |
3/2 in line mini ball valve with vent |
na |
na |
na |
10 |
| 7913 12 00 |
3/2 in line mini ball valve with vent |
na |
na |
na |
12 |
| 7913 56 00 |
3/2 in line mini ball valve with vent |
na |
na |
1/4 |
na |
| 7913 60 00 |
3/2 in line mini ball valve with vent |
na |
na |
3/8 |
na |
| 7914 06 10 |
3/2 in line mini ball valve with vent male |
BSPP |
G1/8 |
na |
6 |
| 7914 08 13 |
3/2 in line mini ball valve with vent male |
BSPP |
G1/4 |
na |
8 |
| 7914 10 17 |
3/2 in line mini ball valve with vent male |
BSPP |
G3/8 |
na |
10 |
| 7914 12 21 |
3/2 in line mini ball valve with vent male |
BSPP |
G1/2 |
na |
12 |
|
