Parker 球阀
Parker Ball Valves

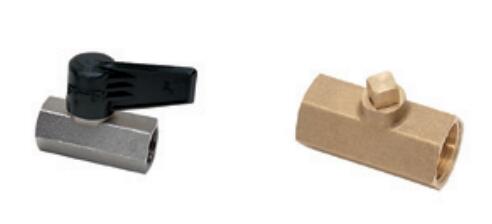

Ball Valves Universal Light Series

Using the Universal Series technology, the Parker Legris light series valves offer the advantages of compactness, ease of operation and long-term reliability.

Using the Universal Series technology, the Parker Legris light series valves offer the advantages of compactness, ease of operation and long-term reliability.

Ball Valves Universal Light Series

Features/Benefits:

- Easy-to-Use

- Ease of operation due to the low friction design
- The short levers may be repositioned and exchanged
- Extremely compact
- Wide range of configurations

- Maximum Efficiency

- Excellent performance under vacuum
- Full flow
- Chemical nickel-plated brass with high phosphorous content for outstanding corrosion resistance
- Automatic seal wear compensation system

- Reliability

- Tried-and-tested technology
- Forged brass provides mechanical strength and long service life
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

Markets:

- Packaging
- Wearing Apparel
- Lumber & Wood
- Rubber & Tire Processing
- Plastic Processing
- Rail

Applications:

- Allow/Stop Compressed Air Circulation on Pneumatic Circuits
- Suitable for Vacuum Applications

Technologies:

- Industrial valves
- Corrosion resistant
- Pneumatic circuit
- Control valves
- Pneumatic systems

Technical Characteristics:

- Fluids: Compressed air, other fluids: see compatibility chart in our catalogue
- Materials: brass, polymer or zamak, shot-blasted brass or shot-blasted nickel-plated brass, NBR, nickel-plated polished brass, graphite-impregnated polyamide, silicone free
- Pressure: Vacuum to 12 bar
- Temperature: -20°C to +80°C

Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)

Product Types:

- 2/2 In-Line Ball Valve, Female BSPP Thread
- 2/2 In-Line Ball Valve, Short Handle, Female BSPP Thread
- 2/2 In-Line Ball Valve, Male/Female BSPP Thread
- 2/2 In-Line Ball Valve, Short Handle, Male/Female BSPP Thread
- 2/2 In-Line Ball Valve, Male BSPP Thread
- 2/2 In-Line Ball Valve, 2 Vent Plugs, Female BSPP Thread
- 2/2 Ball Valve, Square Stem, Female BSPP Thread
- 2/2 Ball Valve, Square Stem, Male/Female BSPP Thread

Technical Specifications

Ball Valves Universal Light Series 型号
