Parker Fittings接头
Barbed Fittings
Brass Accessories For Compression Fittings

Brass fittings for optimum installation adaptation
Available in 1/8" to 3/4" ID
This range of fittings is designed to meet the requirements of the automotive and robotics industries - CNOMO manufacturing quality.





This range of fittings accessories is designed to meet the requirements of the automotive and robotics industries, provides optimum adaptation in installation adaptation and reliable operation.

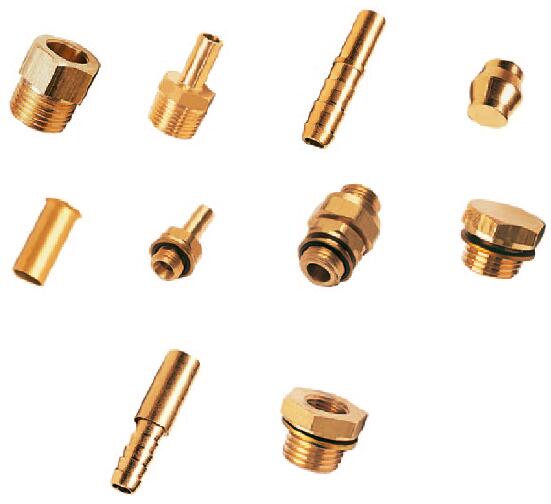

Brass Accessories For Compression Fittings



Features/Benefits:

- Perfect for brass compressiod fittings adaptation to the installation

- Quick and simple to install
- Compatible with the Parker Legris range of brass compression fittings
- Mechanical properties proven for use in industrial robotic installations


Markets:

- Packaging
- Miscellaneous Manufacturing
- Vehicle Assembly Facilities
- Machine Tools

Applications:

- Pneumatic Machinery Equipment at Medium and High Pressure
- Lubrication Systems
- Cooling Systems
- Welding Robots
- Suitable for Vacuum Applications

Technologies:

Brass fittings for optimum installation adaptation

Technical Characteristics:

- Fluids: Coolants, compressed air
- Materials: brass, engineering polymer, silicone free
- Pressure: 0 to 20 bar (250 bar for the the 0220 product type)
- Temperature: -60°C to +250°C ( With metallic tube and without polymer seals)

Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)


Product Types:

- Barb Connector for Hose
- Barb Connector for Flexible Tubing
- Plug for Compression Fitting
- Tube End Plug for Compression Fitting
- Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread
- Hex Head Plug with Bi-Material Seal, Male BSPP Thread
- Stud Standpipe, Male BSPT Thread
- Sleeve Nut for Compression Fitting, Male Metric Thread
- Stud Standpipe with Bi-Material Seal, Male BSPP Thread
- Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread
- Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread
- Tube Support for Polymer Tubing



Technical Specifications

Body Material: BRASS
Maximum Operating Pressure: 20 to 250 bar
Minimum Operating Temperature: -40 to -20 °C
Maximum Operating Temperature: 80 to 250 °C
Quantity per Box: 5 to 100
Weight: 0,005 to 0,217 kg
Industry Application: Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery
Media: Coolants, compressed air
Specifications Met: Industrial: DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 97/23/EC (PED), RG: 1907/2006 (REACH), CNOMO: E07.21.115N
Shape: Sleeve nut for compression fitting male, Stud standpipe male, Barb connector for hose, Tube end plug for compression fitting, Plug for compression fitting, Tube support for polymer tubing, Stud Standpipe with Bi-Material Seal, Male BSPP Thread, Straight male orientable adaptor with bi-material seal male, Barb connector for flexible tubing, Reducer with bi-material seal male female, Hex head plug with captive sealing washer male, Hex head plug with bi-material sealing male



Brass Accessories For Compression Fittings型号

Part Product Type Connection Type Connection Thread Size Tube Outside Diameter Tube Inside Diameter
0112 04 00 Sleeve Nut for Compression Fitting, Male Metric Thread Metric M8x1 4 mm na
0112 05 00 Sleeve Nut for Compression Fitting, Male Metric Thread Metric M10x1 5 mm na
0112 06 00 Sleeve Nut for Compression Fitting, Male Metric Thread Metric M10x1 6 mm na
0112 08 00 Sleeve Nut for Compression Fitting, Male Metric Thread Metric M12x1 8 mm na
0112 10 00 Sleeve Nut for Compression Fitting, Male Metric Thread Metric M16x1,5 10 mm na
0112 12 00 Sleeve Nut for Compression Fitting, Male Metric Thread Metric M18x1,5 12 mm na
0112 14 00 Sleeve Nut for Compression Fitting, Male Metric Thread Metric M20x1,5 14 mm na
0120 04 10 Stud Standpipe, Male BSPT Thread BSPT R1/8 4 mm na
0120 05 10 Stud Standpipe, Male BSPT Thread BSPT R1/8 5 mm na
0120 06 10 Stud Standpipe, Male BSPT Thread BSPT R1/8 6 mm na
0120 06 13 Stud Standpipe, Male BSPT Thread BSPT R1/4 6 mm na
0120 08 10 Stud Standpipe, Male BSPT Thread BSPT R1/8 8 mm na
0120 08 13 Stud Standpipe, Male BSPT Thread BSPT R1/4 8 mm na
0120 08 17 Stud Standpipe, Male BSPT Thread BSPT R3/8 8 mm na
0120 10 13 Stud Standpipe, Male BSPT Thread BSPT R1/4 10 mm na
0120 10 17 Stud Standpipe, Male BSPT Thread BSPT R3/8 10 mm na
0120 10 21 Stud Standpipe, Male BSPT Thread BSPT R1/2 10 mm na
0120 12 13 Stud Standpipe, Male BSPT Thread BSPT R1/4 12 mm na
0120 12 17 Stud Standpipe, Male BSPT Thread BSPT R3/8 12 mm na
0120 12 21 Stud Standpipe, Male BSPT Thread BSPT R1/2 12 mm na
0120 14 17 Stud Standpipe, Male BSPT Thread BSPT R3/8 14 mm na
0120 14 21 Stud Standpipe, Male BSPT Thread BSPT R1/2 14 mm na
0120 15 17 Stud Standpipe, Male BSPT Thread BSPT R3/8 15 mm na
0120 15 21 Stud Standpipe, Male BSPT Thread BSPT R1/2 15 mm na
0120 16 17 Stud Standpipe, Male BSPT Thread BSPT R3/8 16 mm na
0120 16 21 Stud Standpipe, Male BSPT Thread BSPT R1/2 16 mm na
0120 18 21 Stud Standpipe, Male BSPT Thread BSPT R1/2 18 mm na
0120 18 27 Stud Standpipe, Male BSPT Thread BSPT R3/4 18 mm na
0120 20 27 Stud Standpipe, Male BSPT Thread BSPT R3/4 20 mm na
0120 22 27 Stud Standpipe, Male BSPT Thread BSPT R3/4 22 mm na
0120 22 34 Stud Standpipe, Male BSPT Thread BSPT R1 22 mm na
0120 25 34 Stud Standpipe, Male BSPT Thread BSPT R1 25 mm na
0120 28 34 Stud Standpipe, Male BSPT Thread BSPT R1 28 mm na
0122 04 04 Barb Connector for Hose na na 4 mm 4
0122 05 04 Barb Connector for Hose na na 5 mm 4
0122 06 04 Barb Connector for Hose na na 6 mm 4
0122 06 07 Barb Connector for Hose na na 6 mm 7
0122 08 06 Barb Connector for Hose na na 8 mm 6
0122 08 07 Barb Connector for Hose na na 8 mm 7
0122 08 10 Barb Connector for Hose na na 8 mm 10
0122 10 07 Barb Connector for Hose na na 10 mm 7
0122 10 10 Barb Connector for Hose na na 10 mm 10
0122 12 10 Barb Connector for Hose na na 12 mm 10
0122 12 13 Barb Connector for Hose na na 12 mm 13
0122 14 13 Barb Connector for Hose na na 14 mm 13
0122 14 16 Barb Connector for Hose na na 14 mm 16
0122 15 13 Barb Connector for Hose na na 15 mm 13
0122 15 16 Barb Connector for Hose na na 15 mm 16
0122 16 13 Barb Connector for Hose na na 16 mm 13
0122 16 16 Barb Connector for Hose na na 16 mm 16
0122 18 16 Barb Connector for Hose na na 18 mm 16
0122 18 19 Barb Connector for Hose na na 18 mm 19
0122 20 16 Barb Connector for Hose na na 20 mm 16
0122 20 19 Barb Connector for Hose na na 20 mm 19
0122 22 19 Barb Connector for Hose na na 22 mm 19
0122 25 19 Barb Connector for Hose na na 25 mm 19
0122 25 25 Barb Connector for Hose na na 25 mm 25
0122 28 25 Barb Connector for Hose na na 28 mm 25
0125 04 00 Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread Metric M8x1 4 mm na
0125 06 00 Tube End Plug for Compression Fitting Metric M10x1 6 mm na
0125 08 00 Tube End Plug for Compression Fitting Metric M12x1 8 mm na
0125 10 00 Tube End Plug for Compression Fitting Metric M16x1,5 10 mm na
0125 12 00 Tube End Plug for Compression Fitting Metric M18x1,5 12 mm na
0125 14 00 Tube End Plug for Compression Fitting Metric M20x1,5 14 mm na
0126 04 00 Plug for Compression Fitting na na 4 mm na
0126 05 00 Plug for Compression Fitting na na 5 mm na
0126 06 00 Plug for Compression Fitting na na 6 mm na
0126 08 00 Plug for Compression Fitting na na 8 mm na
0126 10 00 Plug for Compression Fitting na na 10 mm na
0126 12 00 Plug for Compression Fitting na na 12 mm na
0126 14 00 Plug for Compression Fitting na na 14 mm na
0126 15 00 Plug for Compression Fitting na na 15 mm na
0126 16 00 Plug for Compression Fitting na na 16 mm na
0126 18 00 Plug for Compression Fitting na na 18 mm na
0126 20 00 Plug for Compression Fitting na na 20 mm na
0126 22 00 Plug for Compression Fitting na na 22 mm na
0126 28 00 Plug for Compression Fitting na na 28 mm na
0127 04 00 Tube Support for Polymer Tubing na na 4 mm 2
0127 04 27 Tube Support for Polymer Tubing na na 4 mm 2,7
0127 05 00 Tube Support for Polymer Tubing na na 5 mm 3,3
0127 05 03 Tube Support for Polymer Tubing na na 5 mm 3
0127 06 00 Tube Support for Polymer Tubing na na 6 mm 4
0127 08 00 Tube Support for Polymer Tubing na na 8 mm 6
0127 08 55 Tube Support for Polymer Tubing na na 8 mm 5,5
0127 10 00 Tube Support for Polymer Tubing na na 10 mm 8
0127 10 07 Tube Support for Polymer Tubing na na 10 mm 7
0127 10 75 Tube Support for Polymer Tubing na na 10 mm 7,5
0127 12 00 Tube Support for Polymer Tubing na na 12 mm 10
0127 12 08 Tube Support for Polymer Tubing na na 12 mm 8
0127 12 09 Tube Support for Polymer Tubing na na 12 mm 9
0127 14 00 Tube Support for Polymer Tubing na na 14 mm 12
0127 14 11 Tube Support for Polymer Tubing na na 14 mm 11
0127 15 12 Tube Support for Polymer Tubing na na 15 mm 12
0127 16 13 Tube Support for Polymer Tubing na na 16 mm 13
0127 18 14 Tube Support for Polymer Tubing na na 18 mm 14
0127 20 15 Tube Support for Polymer Tubing na na 20 mm 15
0127 22 16 Tube Support for Polymer Tubing na na 22 mm 16
0127 25 19 Tube Support for Polymer Tubing na na 25 mm 19
0128 04 10 39 Brass Adaptors BSPP G1/8 4 mm na
0128 04 13 39 Brass Adaptors BSPP G1/4 4 mm na
0128 06 10 39 Brass Adaptors BSPP G1/8 6 mm na
0128 06 13 39 Brass Adaptors BSPP G1/4 6 mm na
0128 08 10 39 Brass Adaptors BSPP G1/8 8 mm na
0128 08 13 39 Brass Adaptors BSPP G1/4 8 mm na
0128 08 17 39 Brass Adaptors BSPP G3/8 8 mm na
0128 10 13 39 Brass Adaptors BSPP G1/4 10 mm na
0128 10 17 39 Brass Adaptors BSPP G3/8 10 mm na
0128 10 21 39 Brass Adaptors BSPP G1/2 10 mm na
0128 14 17 39 Brass Adaptors BSPP G3/8 14 mm na
0128 14 21 39 Brass Adaptors BSPP G1/2 14 mm na
0128 18 21 39 Brass Adaptors BSPP G1/2 18 mm na
0128 18 27 39 Brass Adaptors BSPP G3/4 18 mm na
0128 22 27 39 Brass Adaptors BSPP G3/4 22 mm na
0128 22 34 39 Brass Adaptors BSPP G1 22 mm na
0128 28 34 39 Brass Adaptors BSPP G1 28 mm na
0151 10 10 39 Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread BSPP G1/8 na na
0151 13 13 39 Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread BSPP G1/4 na na
0151 17 17 39 Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread BSPP G3/8 na na
0151 21 21 39 Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread BSPP G1/2 na na
0151 27 27 39 Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread BSPP G3/4 na na
0151 34 34 39 Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread BSPP G1 na na
0165 04 06 Barb Connector for Flexible Tubing na na 4 mm 4
0165 05 06 Barb Connector for Flexible Tubing na na 5 mm 4
0165 06 06 Barb Connector for Flexible Tubing na na 6 mm 4
0165 06 08 Barb Connector for Flexible Tubing na na 6 mm 6
0165 06 10 Barb Connector for Flexible Tubing na na 6 mm 8
0165 08 08 Barb Connector for Flexible Tubing na na 8 mm 6
0165 08 10 Barb Connector for Flexible Tubing na na 8 mm 8
0165 08 12 Barb Connector for Flexible Tubing na na 8 mm 10
0165 10 10 Barb Connector for Flexible Tubing na na 10 mm 8
0165 10 12 Barb Connector for Flexible Tubing na na 10 mm 10
0165 10 14 Barb Connector for Flexible Tubing na na 10 mm 12
0165 12 12 Barb Connector for Flexible Tubing na na 12 mm 10
0165 12 14 Barb Connector for Flexible Tubing na na 12 mm 12
0165 14 14 Barb Connector for Flexible Tubing na na 14 mm 12
0165 15 16 Barb Connector for Flexible Tubing na na 15 mm 13
0165 16 16 Barb Connector for Flexible Tubing na na 16 mm 13
0168 10 19 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/Metric G1/8 M5x0,8 na na
0168 13 10 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/Metric G1/4 M5 x 0,8 na na
0168 13 19 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G1/4 G1/8 na na
0168 17 10 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G3/8 G1/8 na na
0168 17 13 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G3/8 G1/4 na na
0168 21 10 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G1/2 G1/8 na na
0168 21 13 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G1/2 G1/4 na na
0168 21 17 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G1/2 G3/8 na na
0168 27 13 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G3/4 G1/4 na na
0168 27 17 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G3/4 G3/8 na na
0168 27 21 39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread BSPP/BSPP G3/4 G1/2 na na
0220 10 00 Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread BSPP G1/8 na na
0220 10 00 39 Hex Head Plug with Bi-Material Seal, Male BSPP Thread BSPP G1/8 na na
0220 13 00 Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread BSPP G1/4 na na
0220 13 00 39 Hex Head Plug with Bi-Material Seal, Male BSPP Thread BSPP G1/4 na na
0220 17 00 Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread BSPP G3/8 na na
0220 17 00 39 Hex Head Plug with Bi-Material Seal, Male BSPP Thread BSPP G3/8 na na
0220 19 00 Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread Metric M5x0,8 na na
0220 21 00 Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread BSPP G1/2 na na
0220 21 00 39 Hex Head Plug with Bi-Material Seal, Male BSPP Thread BSPP G1/2 na na
0220 27 00 39 Hex Head Plug with Bi-Material Seal, Male BSPP Thread BSPP G3/4 na na
0220 34 00 39 Hex Head Plug with Bi-Material Seal, Male BSPP Thread BSPP G1








信德迈科技（北京）有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983
手机：13910962635 （ 微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762


京ICP备08000876号-6
京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
