Parker Fittings接头
Compression Fittings

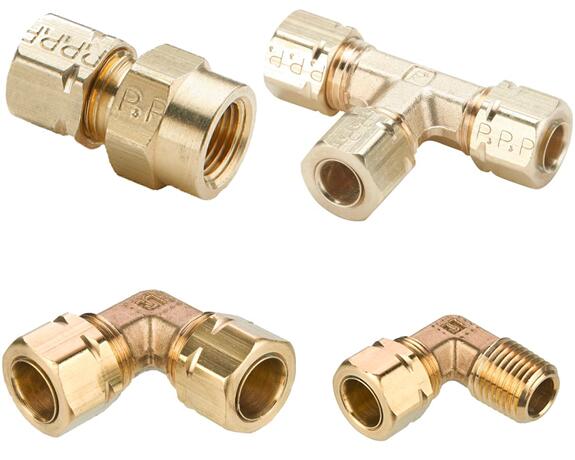

Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased.
Use with copper, aluminum and the following Parker Parflex Division tubing.

Brass Compression Fittings, Compress-Align

- Polyethylene
- Nylon
- Polypropylene
- PTFE
- FEP
- PFA

Markets:
- Industrial
- Pneumatic
- Packaging
- Automation
- Chemical
- Compressors
- Water filtration

Features/Benefits:
- All brass construction
- Captive sleeve
- Higher working pressures versus standard compression fitting
- Bodies interchangeable with standard compression bodies
- Economical
- One wrench turn from finger tight for assembly for all sizes
- 1/8" through 1" sizes available
- U.L. listed for flammable liquids

Applications:
- Air lines
- Lubrication lines
- Fluid transfer
- Chemical dispensing
- Cooling lines
- Machine tool

Custom configurations and sizes are available upon request. Contact us for additional information.

Technical Specifications

Brass Compression Fittings, Compress-Align型号
