Compression Fittings

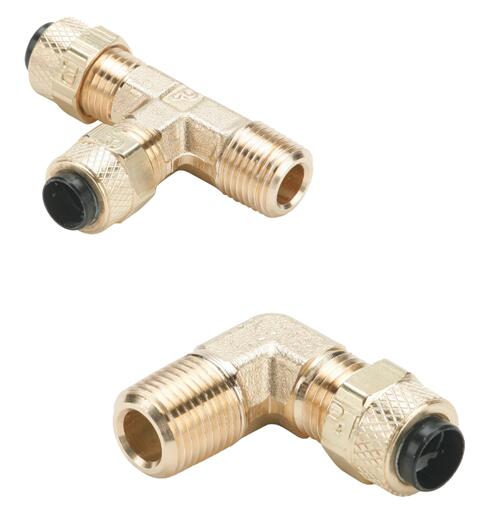

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.
Parker's Poly-Tite fittings are designed to speed any installation. The body, nut and sleeve are furnished pre-assembled, ready for installation. The acetal copolymer sleeve resists creeping and stress caused from compression. The black acetal copolymer also resists ultra-violet ray attack and has excellent dimensional stability. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing. Poly-Tite fittings can be assembled and disassembled repeatly.
Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
Use with the following Parker Parflex Division tubing.
- Polyethylene
- Nylon
- Polypropylene
- Vinyl
Markets:
- Dental
- Packaging
- Car Wash
- Printing
- Machine tools
Features/Benefits:
- Designed for use with thermoplastic tubing
- Machined in tube support
- Black acetal copolymer sleeve
- Brass sleeve available for soft metal tubing
- Knurled nut for ease of hand tightening
- Pre-assembled fitting
- Chrome plated and stainless steel couplers available
Applications:
- Pneumatic circuits
- Coolant lines
- Measuring
- Water lines
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Connection Type: |
Compression, Thread |
| Shape: |
Various |
| Minimum Operating Temperature: |
0 °F, -17 °C |
| Maximum Operating Temperature: |
150 °F, 65 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Tube Material: |
Polyethylene, Nylon, Polypropylene, Vinyl |
| Application: |
Dental, Packaging, Machine tool, Car wash |
| Materials of Construction: |
Brass |
| Nut Material: |
Brass |
| Sleeve Material: |
Brass, Acetal Copolymer |
Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.型号
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Style |
| 164P-4 |
Tee |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
| 164P-5 |
Tee |
Tube to Tube |
5/16 |
Compression |
na |
5/16 |
Compression |
| 164P-6 |
Tee |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
| 164P-6-4 |
Tee |
Tube to Tube |
3/8 |
Compression |
na |
1/4 |
Compression |
| 164P-8 |
Tee |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
| 169LP-4-4 |
90° Long Elbow |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| 169P-4-1 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/16 |
na |
Male Pipe |
| 169P-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| 169P-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| 169P-4-6 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
3/8 |
na |
Male Pipe |
| 169P-5-2 |
90° Elbow |
Tube to Pipe |
5/16 |
Compression |
1/8 |
na |
Male Pipe |
| 169P-6-2 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| 169P-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| 169P-6-6 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| 169P-8-6 |
90° Elbow |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| 169PS-4-2 |
90° Swivel Elbow |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| 169PS-4-4 |
90° Swivel Elbow |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| 169PS-6-2 |
90° Swivel Elbow |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| 169PS-6-4 |
90° Swivel Elbow |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| 169PS-6-6 |
90° Swivel Elbow |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| 169PS-8-6 |
90° Swivel Elbow |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| 170P-4-2 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Compression |
1/8 |
na |
Female Pipe |
| 170P-4-4 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Compression |
1/4 |
na |
Female Pipe |
| 170P-6-4 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Compression |
1/4 |
na |
Female Pipe |
| 170P-8-6 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Compression |
3/8 |
na |
Female Pipe |
| 171P-4-2 |
Run Tee |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| 171P-4-4 |
Run Tee |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| 171P-5-2 |
Run Tee |
Tube to Pipe |
5/16 |
Compression |
1/8 |
na |
Male Pipe |
| 171P-6-4 |
Run Tee |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| 171P-8-6 |
Run Tee |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| 172P-4-2 |
Branch Tee |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| 172P-4-4 |
Branch Tee |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| 172P-5-2 |
Branch Tee |
Tube to Pipe |
5/16 |
Compression |
1/8 |
na |
Male Pipe |
| 172P-6-2 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| 172P-6-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| 172P-8-6 |
Branch Tee |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| 177P-4-2 |
Branch Tee |
Tube to Female Pipe |
1/4 |
Compression |
1/8 |
na |
Female Pipe |
| 177P-4-4 |
Branch Tee |
Tube to Female Pipe |
1/4 |
Compression |
1/4 |
na |
Female Pipe |
| 177P-4-6 |
Branch Tee |
Tube to Female Pipe |
1/4 |
Compression |
3/8 |
na |
Female Pipe |
| 56PSG-4 |
Spring Guard |
Tube |
1/4 |
Tube |
na |
na |
na |
| 56PSG-5 |
Spring Guard |
Tube |
5/16 |
Tube |
na |
na |
na |
| 56PSG-6 |
Spring Guard |
Tube |
3/8 |
Tube |
na |
na |
na |
| 59P-4 |
Cap |
Tube |
1/4 |
Tube |
na |
na |
na |
| 59P-5 |
Cap |
Tube |
5/16 |
Tube |
na |
na |
na |
| 59P-6 |
Cap |
Tube |
3/8 |
Tube |
na |
na |
na |
| 59P-8 |
Cap |
Tube |
1/2 |
Tube |
na |
na |
na |
| 60P-4 |
Plastic Sleeve |
Tube |
1/4 |
Tube |
na |
na |
na |
| 60P-5 |
Plastic Sleeve |
Tube |
5/16 |
Tube |
na |
na |
na |
| 60P-6 |
Plastic Sleeve |
Tube |
3/8 |
Tube |
na |
na |
na |
| 60P-8 |
Plastic Sleeve |
Tube |
1/2 |
Tube |
na |
na |
na |
| 60PB-4 |
Brass Sleeve |
Tube |
1/4 |
Tube |
na |
na |
na |
| 60PB-5 |
Brass Sleeve |
Tube |
5/16 |
Tube |
na |
na |
na |
| 60PB-6 |
Brass Sleeve |
Tube |
3/8 |
Tube |
na |
na |
na |
| 60PB-8 |
Brass Sleeve |
Tube |
1/2 |
Tube |
na |
na |
na |
| 61P-4 |
Nut/Plastic Sleeve |
Tube |
1/4 |
Tube |
na |
na |
na |
| 61P-5 |
Nut/Plastic Sleeve |
Tube |
5/16 |
Tube |
na |
na |
na |
| 61P-6 |
Nut/Plastic Sleeve |
Tube |
3/8 |
Tube |
na |
na |
na |
| 61P-8 |
Nut/Plastic Sleeve |
Tube |
1/2 |
Tube |
na |
na |
na |
| 61PB-4 |
Nut/Brass Sleeve |
Tube |
1/4 |
Tube |
na |
na |
na |
| 61PB-5 |
Nut/Brass Sleeve |
Tube |
5/16 |
Tube |
na |
na |
na |
| 61PB-6 |
Nut/Brass Sleeve |
Tube |
3/8 |
Tube |
na |
na |
na |
| 61PB-8 |
Nut/Brass Sleeve |
Tube |
1/2 |
Tube |
na |
na |
na |
| 61PN-4 |
Nut |
Tube |
1/4 |
Tube |
na |
na |
na |
| 61PN-5 |
Nut |
Tube |
5/16 |
Tube |
na |
na |
na |
| 61PN-6 |
Nut |
Tube |
3/8 |
Tube |
na |
na |
na |
| 61PN-8 |
Nut |
Tube |
1/2 |
Tube |
na |
na |
na |
| 61PSGN-4 |
Spring Guard Nut |
Tube |
1/4 |
Tube |
na |
na |
na |
| 61PSGN-5 |
Spring Guard Nut |
Tube |
5/16 |
Tube |
na |
na |
na |
| 61PSGN-6 |
Spring Guard Nut |
Tube |
3/8 |
Tube |
na |
na |
na |
| 62P-4 |
Union |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
| 62P-5 |
Union |
Tube to Tube |
5/16 |
Compression |
na |
5/16 |
Compression |
| 62P-6 |
Union |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
| 62P-6-4 |
Union |
Tube to Tube |
3/8 |
Compression |
na |
1/4 |
Compression |
| 62P-8 |
Union |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
| 62PBH-4 |
Bulkhead |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
| 62PBH-5 |
Bulkhead |
Tube to Tube |
5/16 |
Compression |
na |
5/16 |
Compression |
| 62PBH-6 |
Bulkhead |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
| 62PBH-8 |
Bulkhead |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
| 62PCA-4 |
Union |
Tube to Poly-Tite |
1/4 |
Compression |
na |
1/4 |
Compression |
| 62PCA-5 |
Union |
Tube to Poly-Tite |
5/16 |
Compression |
na |
5/16 |
Compression |
| 62PCA-6 |
Union |
Tube to Poly-Tite |
3/8 |
Compression |
na |
3/8 |
Compression |
| 62PCABH-4 |
Bulkhead |
Tube to Compression |
1/4 |
Compression |
na |
1/4 |
Compression |
| 62PCABH-6 |
Bulkhead |
Tube to Compression |
3/8 |
Compression |
na |
3/8 |
Compression |
| 62PTBH-4 |
Bulkhead |
Tube to Straight Thread |
1/4 |
Compression |
3/8-24 |
na |
Straight Thread |
| 62PTBH-5 |
Bulkhead |
Tube to Straight Thread |
5/16 |
Compression |
7/16-24 |
na |
Straight Thread |
| 62PTBH-6 |
Bulkhead |
Tube to Straight Thread |
3/8 |
Compression |
1/2-24 |
na |
Straight Thread |
| 66P-4-2 |
Connector |
Tube to Female Pipe |
1/4 |
Compression |
1/8 |
na |
Female Pipe |
| 66P-4-4 |
Connector |
Tube to Female Pipe |
1/4 |
Compression |
1/4 |
na |
Female Pipe |
| 66P-5-2 |
Connector |
Tube to Female Pipe |
5/16 |
Compression |
1/8 |
na |
Female Pipe |
| 66P-6-4 |
Connector |
Tube to Female Pipe |
3/8 |
Compression |
1/4 |
na |
Female Pipe |
| 66P-8-6 |
Connector |
Tube to Female Pipe |
1/2 |
Compression |
3/8 |
na |
Female Pipe |
| 68P-4-1 |
Connector |
Tube to Pipe |
1/4 |
Compression |
1/16 |
na |
Male Pipe |
| 68P-4-10X32 |
Connector |
Tube to Pipe |
1/4 |
Compression |
10-32 |
na |
Straight Thread |
| 68P-4-2 |
Connector |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
| 68P-4-4 |
Connector |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
| 68P-4-6 |
Connector |
Tube to Pipe |
1/4 |
Compression |
3/8 |
na |
Male Pipe |
| 68P-5-2 |
Connector |
Tube to Pipe |
5/16 |
Compression |
1/8 |
na |
Male Pipe |
| 68P-5-4 |
Connector |
Tube to Pipe |
5/16 |
Compression |
1/4 |
na |
Male Pipe |
| 68P-6-2 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
| 68P-6-4 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
| 68P-6-6 |
Connector |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
| 68P-8-4 |
Connector |
Tube to Pipe |
1/2 |
Compression |
1/4 |
na |
Male Pipe |
| 68P-8-6 |
Connector |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
| 97P-4-6 |
Tube Reducer |
Tube to Standpipe |
1/4 |
Compression |
3/8 |
na |
Tube Stem |
| 97P-6-8 |
Tube Reducer |
Tube to Standpipe |
3/8 |
Compression |
1/2 |
na |
Tube Stem |
|
