Pneumatic Fittings

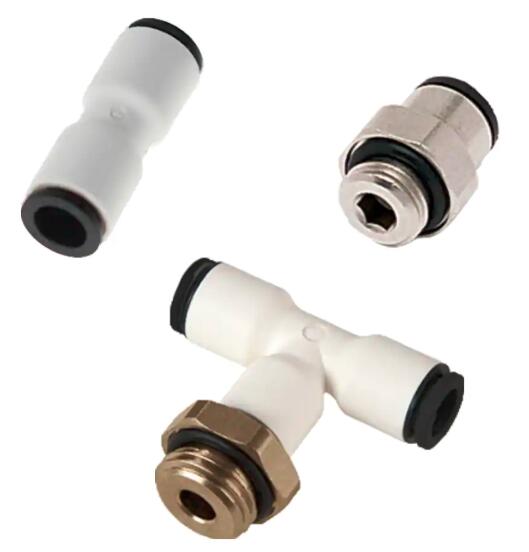

CleanFit Push-In Fittings for Life Sciences and Clean Rooms

This "eco-designed" CleanFit range drives high-tech equipment beyond current connection limits in terms of cleanliness, reliability and safety. It ensures perfect compatibility with most gases, and complies with demanding applications and standards.

This "eco-designed" CleanFit range for Life Sciences and Clean Rooms drives high-tech equipment beyond current connection limits in terms of cleanliness, reliability and safety.

This ultra-clean range ensures perfect compatibility with most gases, and therefore complies with demanding applications and standards.

CleanFit Push-In Fittings for Life Sciences and Clean Rooms

Features/Benefits:

- Ease of Use

- Ergonomic and aesthetic design
- Compact product fully adapted to portable devices
- Antistatic and airtight packaging to prevent contamination

- Purity & Security

- Recommended for O2 applications and pure gases
- High cleanliness level, according to ASTM G93: level B and particle size level 300
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

- Hi-Tech Materials Complying with Health Regulations

- Bio-sourced polymer, chemical nickel-plated brass
- Compatible with cleaning agents recommended for decontamination processes
- Excellent chemical and mechanical resistance, even at high temperatures
- Sterilisable using standard chemical and radiation procedures

Clean Packaging
All fittings are packed in an antistatic and airtight bag, guaranteeing impeccable cleanliness for safe and easy use.


Applications:

- Respiratory
- Bio-Fluid Management
- Clean Rooms
- Pharmaceutical Process
- Laboratory
- O2 Circuits


Markets:

- Lab/Diagnostic
- Medical
- Pharma


Technologies:

- Push-In Connection and Disconnection
- Push-In Fittings
- Polymer Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors


Technical Characteristics:

- Fluids: Breathing, neutral & pure medical gases. Other fluids: please consult us
- Materials: Bio-based polymer, technical polymer, stainless steel, EPDM, nickel-plated brass
- Pressure: Vacuum to 15 bar. Working pressure varies according to temperature
- Temperature: -10°C to +95°C


Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 1907/2006 (REACH)
- ASTM G93-03.B-300
- ISO 15001 < 30 bar
- BAM (grease certification residue)
- CGA G4.1
- EN 12021 < 0,1 mg/m3
- VDI 2083-8 (in progress)


Product Types:

- Blanking Plug
- Branch Tee, Male BSPT Thread
- End Cap
- Equal and Unequal Elbow
- Equal and Unequal Plug-In Elbow
- Equal and Unequal Tube-to-Tube Connector
- Equal Bulkhead Connector
- Equal Single Y Piece
- Equal Tee
- Plug-In Barb Connector
- Plug-In Equal Branch Tee
- Plug-In Equal Run Tee
- Plug-In Reducer
- Run Tee, Male BSPT Thread
- Stud Branch Tee, Male BSPP and Metric Thread
- Stud Branch Tee, Male BSPT Thread
- Stud Elbow, Male BSPP and Metric Thread
- Stud Elbow, Male BSPT Thread
- Stud Fitting, Female BSPP Thread
- Stud Fitting, Male BSPP and Metric Thread
- Stud Fitting, Male BSPT Thread
- Stud Run Tee, Male BSPP and Metric Thread
- Stud Run Tee, Male BSPT Thread
- Stud Standpipe, Male BSPT Thread

Technical Specifications

CleanFit Push-In Fittings for Life Sciences and Clean Rooms 型号
