Parker Quick Couplings

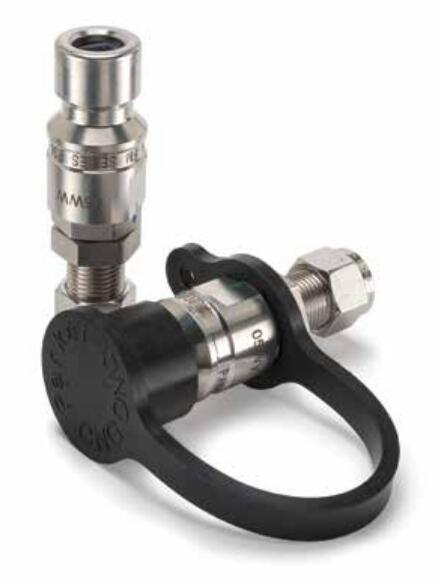

CNG Receptacle for Natural Gas Vehicle,Series FMS
Parker's FMS Series CNG receptacle is designed for rigid mounting on a compressed natural gas vehicle. Receptacle can be employed in both fast-fill and timefill despensing application.The FM Series CNG receptacles conform to NGV1/ANSI standard.
Parker FMS Series receptacles are designed for rigid mounting on a compressed natural gas vehicle. Receptacles can be employed in both fast-fill and time-fill dispensing applications.The ANSI/NGV1 standard used by FMS Series receptacles allows vehicle fueling to be accomplished with all CNG nozzles conforming to the ANSI/NGV1 standard.
CNG Receptacle for Natural Gas Vehicle,Series FMS
Markets:
-Automotive
Features/Benefits:
-FM Series receptacles meet all dimensional and performance requirements of the NGV1/ANSI standard.
-Receptacle employ a differential pressure-actuated valve.
-Internal check valve provides unidrectional flow-natural gas will only flow from dispenser to vehicle.
-Extensive end configurations and mounting methods available.
-Seal is comprised of a special Nitrile compound formulated for compressed natural gas service.
-Materials
* Body : 316 Stainless Steel
* Adapter : 316 Stainless Steel
* Valving : 316 Stainless Steel
* Seal : Special CNG Nitrile Compound
* Dust Cap : Low temperature Nitrile Compound
Applications:
-Compressed Natural Gas vehicle application
Technical Specifications
| Overall Length: |
1.65 to 3.38 inch |
| Hex Size 1: |
19 to 25.4 mm, 0.75 to 1 inch |
| Nut Hex Size: |
19 to 27 mm, 0.75 to 1.06 inch |
| Hex Size 2: |
14.3 to 22.2 mm, .56 to 0.87 inch |
CNG Receptacle for Natural Gas Vehicle,Series FMS 型号
|
