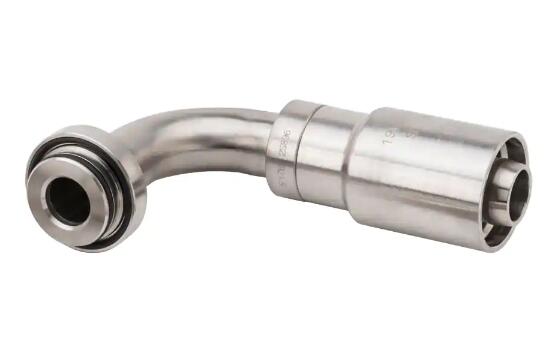

Crimped Thermoplastic Oil & Gas Hose Fittings, HV Series Fittings
Parker HV Fittings are designed to be used with HCR Collapse Resistant Hydraulic Hose
Parker HV Series Fittings are designed to be used in conjunction with HCR Collapse Resistant Hydraulic Hose to provide a high performance, subsea rated solution for a variety of applications.
Markets:
- Oil & Gas
- Marine
Features/Benefits:
- Available for 1/2” and 1” hose sizes
- 5,000 psi (34.5 MPa) with 4:1 design factor
- 316 stainless steel construction for superior corrosion resistance
Applications:
- Subsea Hydraulics
- BOP Stack
- Well Stimulation
- Hydraulic Flying Leads
Note:
- Assembly working pressure is dependent on the lowest rated component. Therefore, if the hose has a lower pressure rating
than the fitting, the working pressure of the fitting is the working pressure of the assembly.
Technical Specifications
| Hose Inside Diameter: |
12, 25 mm |
| Fitting Thread Size: |
9/16-18LH |
| Length: |
4.62, 6.65, 4.25, 6.55 inch, 117, 169, 108, 166 mm |
| Maximum Operating Pressure: |
5,000 psi, 34.5 MPa |
| Materials of Construction: |
Stainless Steel |
| Flange Size: |
- |

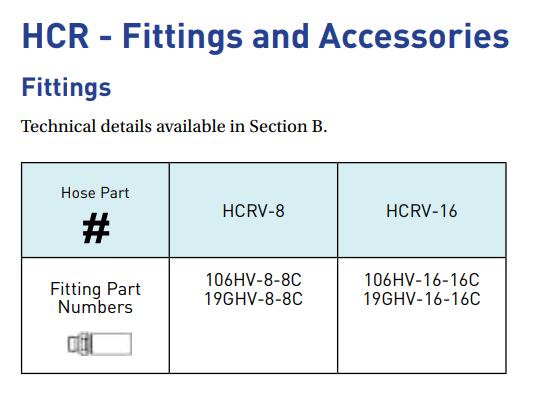

Crimped Thermoplastic Oil & Gas Hose Fittings, HV Series Fittings 型号
|
