drain-cocks

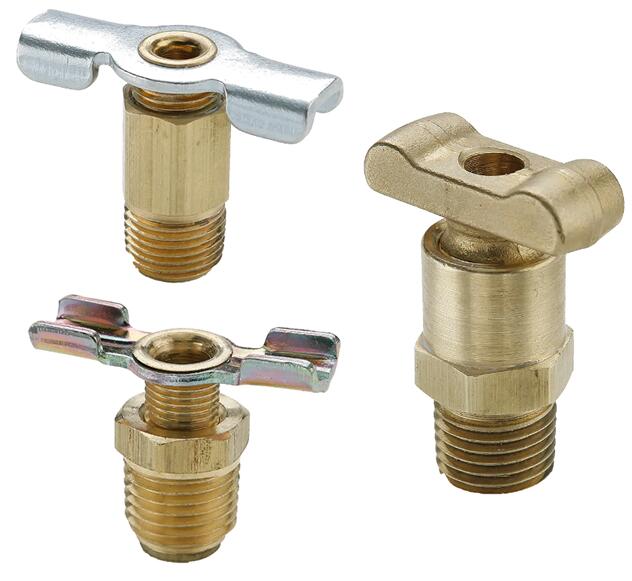

Parker's economical drain cocks are manufactured in both external and internal seats for low pressure applications.
Parker's drain cocks are for low pressure applications and have either external or internal seats. Hand tightening provides a metal-to-metal seal.
drain-cocks
Markets:
- Industrial
- Factory/Process Automation
- Automotive
- Water
Features/Benefits:
- Economical
- Metal-to-metal seal
- External and internal seats
Applications:
- Drain lines
Technical Specifications
| Application: |
Drain lines |
| Connection Type: |
Thread, Hose |
| Shape: |
External Seal, Hose to Pipe and Internal Seal |
| Minimum Operating Temperature: |
-30, -65 °F, -34, -54 °C |
| Maximum Operating Temperature: |
250 °F, 121 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Materials of Construction: |
Brass |
drain-cocks 型号
| Part |
Shape |
Handle |
Connection 1 Thread Size (inch) |
Connection 1 Hose I.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Style |
| DC602-2 |
Internal Seal |
Wing |
1/8 |
na |
Male Pipe |
na |
na |
| DC602-4 |
Internal Seal |
Wing |
1/4 |
na |
Male Pipe |
na |
na |
| DC603-2 |
Internal Seal |
Brass Wing |
1/8 |
na |
Male Pipe |
na |
na |
| DC603-4 |
Internal Seal |
Brass Wing |
1/4 |
na |
Male Pipe |
na |
na |
| DC603-6 |
Internal Seal |
Brass Wing |
3/8 |
na |
Male Pipe |
na |
na |
| DC604-2 |
External Seal |
Wing Down Facing |
1/8 |
na |
Male Pipe |
na |
na |
| DC604-4 |
External Seal |
Wing Down Facing |
1/4 |
na |
Male Pipe |
na |
na |
| DC604-6 |
External Seal |
Wing Down Facing |
3/8 |
na |
Male Pipe |
na |
na |
| DC606-4 |
External Seal |
Wing Extended |
1/4 |
na |
Male Pipe |
na |
na |
| DC607-4 |
Hose to Pipe |
Wing |
na |
3/8 |
Hose |
1/4 |
Male Pipe |
| DCR601-4 |
Internal Seal |
Eliptical Brass |
1/4 |
na |
Male Pipe |
na |
na |
|
