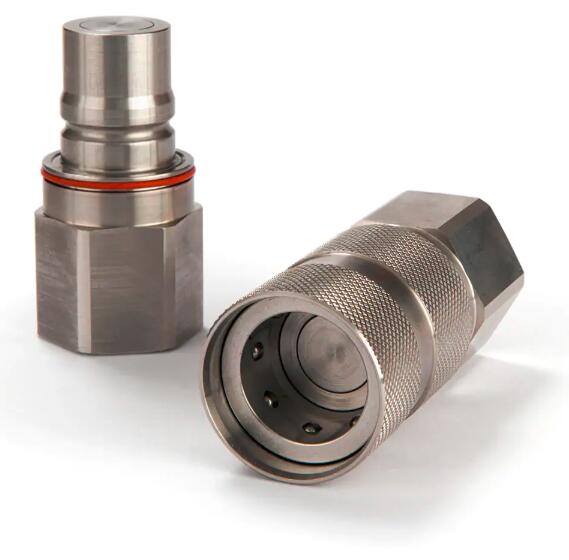

Dry Break Quick Connect Coupling, Series NSE
Dry break quick coupling system with nominal diameter 19 for thermal management applications up to 15 bar. Available made of stainless steel.
Parker's Quick Connect Coupling Series NSE are dry break couplings with flat face valves. The compact design makes it suitable for reduced spaces when high flow is needed. The series NSE is a coupling system with two-hand operation, i.e. both hands are required when connect/disconnect.
Markets:
- Power generation and conversion
- Electronic cooling
Features/Benefits:
- High flow with low pressure drop
- No spillage during connection / disconnection
- Specific design for cooling applications
- Reduced dimensions compared to flow capacities
Applications:
- Cooling of electronic components
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
19 nom |
| Application: |
Thermal Management |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
Parker Profile |
| Maximum Operating Pressure: |
210 psi, 15 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
Non-Spill / FlatFace |
| Valve Included: |
yes |
| Version: |
Flat-sealing |
| Connection Thread Size: |
3/4, 1 inch |
| Length: |
60,3 up to 96,6 mm |
| Hex Size: |
38 mm |
| Outside Diameter: |
42, na mm |
| Materials of Construction: |
Stainless Steel |
| Seal Material: |
FKM |
Dry Break Quick Connect Coupling, Series NSE 型号
|
