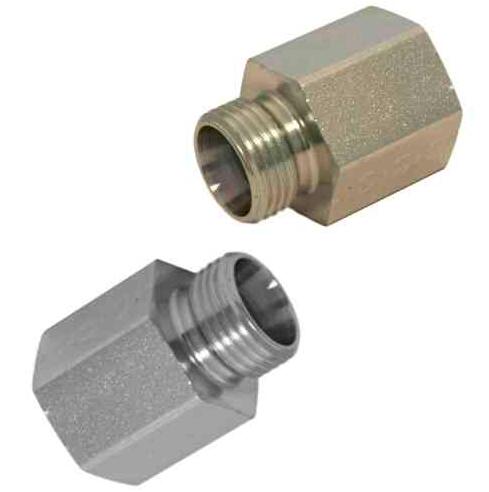

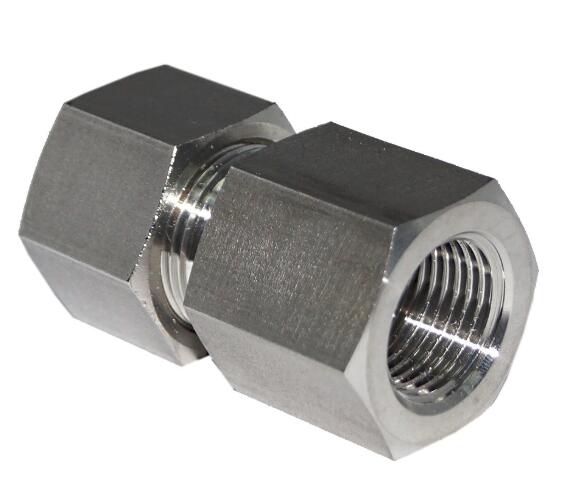

The main function of Ermeto tube-to-female high pressure hydraulic DIN tube fittings is to connect a tube with a port. The broad range of fittings is available in steel with Cr(VI)-free surfaces and stainless steel.
The main function of Ermeto tube-to-female high pressure hydraulic DIN tube fittings is to connect a tube with a port. This broad range of DIN fittings from GAI-M and GAI-NPT is available in steel with Cr(VI)-free surfaces and in a stainless steel version. Depending on the specific application, these fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).
| Part |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection Size |
Shape |
Fitting Material |
Pre-Installed Optional Accessories |
| GAI06L1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06L1/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI06L1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06L1/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06L1/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06L1/8NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
na |
| GAI06L1/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06L1/8NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Stainless steel |
na |
| GAI06LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06LR1/471 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06LR1/471X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI06LR1/4CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06LR1/4CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Stainless steel |
na |
| GAI06LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06S1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06S1/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI06S1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06S1/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06S1/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06S1/8NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
na |
| GAI06S1/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06S1/8NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Stainless steel |
na |
| GAI06SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI06SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06ZL1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZL1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZL1/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZL1/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZLR1/471 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZLR1/4CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08L1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08L1/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI08L1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08L1/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Stainless steel |
na |
| GAI08LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LR1/271X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI08LR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LR1/2CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LR3/871X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI08LR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LR3/8CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI08LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08S1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08S1/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI08S1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08S1/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Stainless steel |
na |
| GAI08SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI08SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08ZL1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZL1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZS1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZS1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10L1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10L1/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI10L1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10L1/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Stainless steel |
na |
| GAI10LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LR1/271X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI10LR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LR1/2CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LR3/871X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI10LR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LR3/8CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI10LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10S3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10S3/8NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Stainless steel |
na |
| GAI10S3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10S3/8NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Stainless steel |
na |
| GAI10SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI10SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10ZL1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZL1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZS3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZS3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12L1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12L1/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI12L1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12L1/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12L3/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12L3/8NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
na |
| GAI12L3/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12L3/8NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Stainless steel |
na |
| GAI12LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12LR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12LR1/271X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI12LR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12LR1/2CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI12LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI12S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12S1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12S1/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI12S1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12S1/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12S3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12S3/8NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
na |
| GAI12S3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12S3/8NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Stainless steel |
na |
| GAI12SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12SR1/271 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12SR1/271X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI12SR1/2CF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12SR1/2CFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI12SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12ZL1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZL1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZL3/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZL3/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZLR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZLR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZS3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZS3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZSR1/271 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZSR1/2CF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI14S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI14S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI14S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI14S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI14SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI14SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Stainless steel |
na |
| GAI14SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI14SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI14SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI14SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI14SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI14SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI14ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI14ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI14ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI14ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI14ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI14ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI15L1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI15L1/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI15L1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI15L1/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI15LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI15LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Stainless steel |
na |
| GAI15LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI15LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI15LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI15LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI15LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI15LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI15ZL1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI15ZL1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI15ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI15ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI15ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI15ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI16S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI16S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI16S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI16S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI16SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI16SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Stainless steel |
na |
| GAI16SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI16SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI16SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI16SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI16SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI16SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI16ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI16ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI16ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI16ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI16ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI16ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18L1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18L1/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI18L1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18L1/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Stainless steel |
na |
| GAI18LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18LR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18LR3/871X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI18LR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18LR3/8CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI18LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18ZL1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZL1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18ZLR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZLR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI20S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20S3/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20S3/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Stainless steel |
na |
| GAI20S3/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20S3/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Stainless steel |
na |
| GAI20SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Stainless steel |
na |
| GAI20SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20ZS3/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZS3/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI22L3/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI22L3/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Stainless steel |
na |
| GAI22L3/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI22L3/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI22LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI22LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Stainless steel |
na |
| GAI22LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI22LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI22LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI22LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Stainless steel |
na |
| GAI22LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI22LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI22ZL3/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI22ZL3/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI22ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI22ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI22ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI22ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI25S1NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI25S1NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI25S1NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI25S1NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI25SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI25SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Stainless steel |
na |
| GAI25SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI25SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI25SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI25SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Stainless steel |
na |
| GAI25SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI25SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI25ZS1NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI25ZS1NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI25ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI25ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI25ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI25ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI28L1NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI28L1NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI28L1NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI28L1NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI28LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI28LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Stainless steel |
na |
| GAI28LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI28LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI28LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI28LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Stainless steel |
na |
| GAI28LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI28LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI28ZL1NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI28ZL1NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI28ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI28ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI28ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI28ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI30S11/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI30S11/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI30S11/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI30S11/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI30SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI30SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Stainless steel |
na |
| GAI30SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI30SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI30SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI30SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Stainless steel |
na |
| GAI30SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI30SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI30ZS11/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI30ZS11/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI30ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI30ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI30ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI30ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI35L11/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI35L11/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI35L11/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI35L11/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI35LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI35LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Stainless steel |
na |
| GAI35LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI35LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI35LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI35LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Stainless steel |
na |
| GAI35LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI35LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI35ZL11/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI35ZL11/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI35ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI35ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI35ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI35ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI38S11/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI38S11/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI38S11/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI38S11/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI38SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI38SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Stainless steel |
na |
| GAI38SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI38SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI38SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI38SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Stainless steel |
na |
| GAI38SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI38SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI38ZS11/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI38ZS11/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI38ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI38ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI38ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI38ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI42L11/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI42L11/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI42L11/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI42L11/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI42LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI42LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Stainless steel |
na |
| GAI42LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI42LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI42LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI42LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Stainless steel |
na |
| GAI42LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI42LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI42ZL11/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI42ZL11/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI42ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI42ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI42ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI42ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
