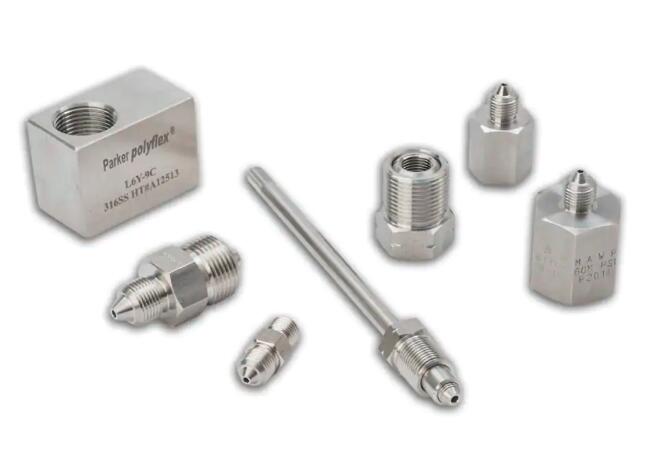

High Pressure Adapters
Stainless steel adapters with a 58/60 degree coned and threaded tubing design and maximum working pressure ratings up to 60,000 psi.
Parker's high pressure adapters have a small bore size which allows for higher working pressures, up to 60,000 psi. Typical applications include: waterblast applications and high pressure test stands.
High Pressure Adapters
Markets:
- Waterblast / Water Jetting
- High Pressure Hydraulics
- Oil & Gas
Features/Benefits:
- An industry standard for use at elevated pressures
- Suitable for repetitive assembly and disassembly
Applications:
- High pressure test stands
- High pressure hydraulic systems
- High pressure waterblast applications
Technical Specifications
| Connection 1 Size: |
Female High Pressure, Male High Pressure, Low Angle Face Seal |
| Connection 2 Size: |
Male High Pressure, Female High Pressure, Male BSP |
| Connection 1 Thread Size: |
9/16 - 18 UNF, 3/4 - 16 UNF, 1-1/8 - 12 UNF, 9/16-18 UNF inch |
| Connection 2 Thread Size: |
3/4 - 16 UNF, 1-1/8 - 12 UNF, 9/16 - 18 UNF, G3/8 - 19 inch |
| Materials of Construction: |
316 Stainless Steel |
| Overall Length: |
varies inch, varies mm |
| Hex Size: |
0.75, 1.12, 1, 1.37, 1.375, 0.62, 1.125, 0.875 inch, 19.05, 28.448, 25.4, 34.798, 34.925, 15.748, 28.575, 22.225 mm |
| Maximum Operating Pressure: |
60000, 30000 psi, 414, 207 MPa |
High Pressure Adapters型号
| Part |
Connection 1 Style |
Connection 2 Style |
Connection 1 Thread Size (inch) |
Connection 2 Thread Size (inch) |
| 6Y6Y-4-4C |
Female High Pressure |
Female High Pressure |
9/16 - 18 UNF |
9/16 - 18 UNF |
| 6Y6Y-4-6C |
Female High Pressure |
Female High Pressure |
9/16 - 18 UNF |
3/4 - 16 UNF |
| 6Y6Y-4-9C |
Female High Pressure |
Female High Pressure |
9/16 - 18 UNF |
1-1/8 - 12 UNF |
| 6Y6Y-6-6C |
Female High Pressure |
Female High Pressure |
3/4 - 16 UNF |
3/4 - 16 UNF |
| 6Y6Y-6-9C |
Female High Pressure |
Female High Pressure |
3/4 - 16 UNF |
1-1/8 - 12 UNF |
| 6Y6Y-9-9C |
Female High Pressure |
Female High Pressure |
1-1/8 - 12 UNF |
1-1/8 - 12 UNF |
| 6YY6-4-6C |
Female High Pressure |
Male High Pressure |
9/16 - 18 UNF |
3/4 - 16 UNF |
| 6YY6-4-9C |
Female High Pressure |
Male High Pressure |
9/16 - 18 UNF |
1-1/8 - 12 UNF |
| 6YY6-6-4C |
Female High Pressure |
Male High Pressure |
3/4 - 16 UNF |
9/16 - 18 UNF |
| 6YY6-6-9C |
Female High Pressure |
Male High Pressure |
3/4 - 16 UNF |
1-1/8 - 12 UNF |
| 6YY6-9-4C |
Female High Pressure |
Male High Pressure |
1-1/8 - 12 UNF |
9/16 - 18 UNF |
| 6YY6-9-6C |
Female High Pressure |
Male High Pressure |
1-1/8 - 12 UNF |
3/4 - 16 UNF |
| 6YY6-9-9C |
Female High Pressure |
Male High Pressure |
1-1/8 - 12 UNF |
1-1/8 - 12 UNF |
| X6Y6-6-9C |
Low Angle Face Seal |
Male High Pressure |
9/16 - 18 UNF |
1-1/8 - 12 UNF |
| Y6D9-4-6C |
Male High Pressure |
Male BSP |
9/16 - 18 UNF |
G3/8 - 19 |
| Y6D9-6-6C |
Male High Pressure |
Male BSP |
3/4 - 16 UNF |
G3/8 - 19 |
| Y6Y6-4-4C |
Male High Pressure |
Male High Pressure |
9/16 - 18 UNF |
9/16 - 18 UNF |
| Y6Y6-4-6C |
Male High Pressure |
Male High Pressure |
9/16 - 18 UNF |
3/4 - 16 UNF |
| Y6Y6-4-9C |
Male High Pressure |
Male High Pressure |
9/16 - 18 UNF |
1-1/8 - 12 UNF |
| Y6Y6-6-6C |
Male High Pressure |
Male High Pressure |
3/4 - 16 UNF |
3/4 - 16 UNF |
| Y6Y6-6-9C |
Male High Pressure |
Male High Pressure |
3/4 - 16 UNF |
1-1/8 - 12 UNF |
| Y6Y6-9-9C |
Male High Pressure |
Male High Pressure |
1-1/8 - 12 UNF |
1-1/8 - 12 UNF |
|
