Parker Fittings接头
Hose Fittings

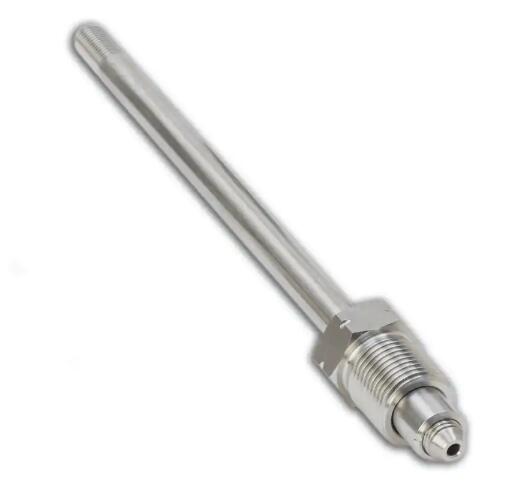

High Pressure Collars
High pressure collars are designed to be used with Polyflex fittings.
High pressure collars are designed to be used with Polyflex fittings.
Markets:
- Hydraulics
- Industrial
- Oil & Gas
Technical Specifications
| Connection Thread Size: |
1/4 (28 UNF LH), 3/8 (24 UNF LH), 9/16 (18 UNF LH), 3/4 (16 UNF LH), 1 (14 UNF LH) inch |
| Shape: |
Straight |
| Application: |
Oilfield, Marine |
| Connection Type: |
Field-Attachable |
| Hose Inside Diameter: |
1/4, 3/8, 9/16, 3/4, 1 inch, 6, 10, 14, 19, 25 mm |
| Maximum Operating Pressure: |
4140 bar, 414 MPa, 60,000 psi |
| Materials of Construction: |
Stainless Steel |
High Pressure Collars 型号
| Part |
Maximum Working Pressure (psi) |
Connection Thread Size (inch) |
| Y2C-12C |
20000 |
3/4" - 16 UNF LH |
| Y2C-16C |
20000 |
1" - 14 UNF LH |
| Y2C-4C |
20000 |
1/4" - 28 UNF LH |
| Y2C-6C |
20000 |
3/8" - 24 UNF LH |
| Y2C-9C |
20000 |
9/16" - 18 UNF LH |
| Y4C-4C |
60000 |
1/4" - 28 UNF LH |
| Y4C-6C |
60000 |
3/8" - 24 UNF LH |
| Y4C-9C |
60000 |
9/16" - 18 UNF LH |
|
