High Pressure Fittings For HP/HP8 High Pressure Hose - HP Series
Note: This product is no longer available. Replacement series is HV Fittings that are used with HCR hose.
Note: This product is no longer available. Replacement series is HV Fittings that are used with HCR hose.
Parker HP high pressure fittings are designed to perfectly match Parker HP/HP8 High Pressure hoses, providing long service life and highest safety standards.
High Pressure Fittings For HP/HP8 High Pressure Hose - HP Series
Markets:
- Oil & Gas - Offshore and Oilfield
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times

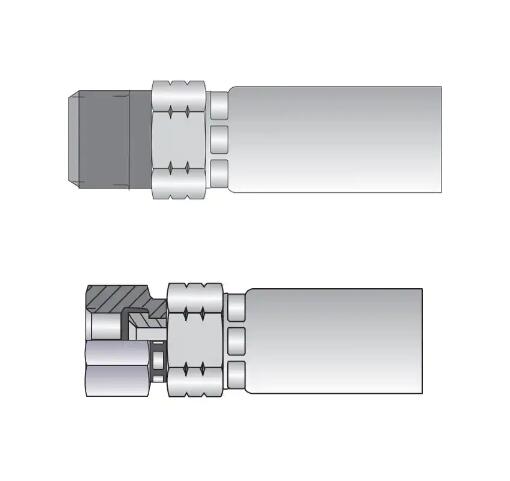

- NPT Male or JIC 37° Female Flare
Applications:
- Hydraulic
- High pressure tools
- Rigging jacks
- Test apparatus
- Oilfield pressure control devices
Technical Specifications:
- Working pressure is dependent on the lowest rated component
If fittings have a lower pressure rating than the hose, the working pressure of the fittings is the working pressure of the assembly
Technical Specifications
| Hose I.D. (size): |
-3, -4, -6 |
| Hose Inside Diameter: |
3/16, 1/4, 3/8 inch, 4.8, 6.4, 9.5 mm |
| Connection Type: |
Crimped, NPT Male, JIC 37° Female Flare |
| Length: |
varies, varies mm |
| Shape: |
Straight |
| Maximum Operating Pressure: |
69, 103 MPa, 690, 1030 bar |
| Application: |
Oilfield, Construction |
High Pressure Fittings For HP/HP8 High Pressure Hose - HP Series 型号
| Part |
Maximum Working Pressure (psi) |
Hose I.D. (DN) |
Connection Thread Size (inch) |
Material |
| 101HP-2-3 |
15,000 |
5 |
1/8" - 27 |
Carbon steel, zinc-plated |
| 101HP-2-4 |
15,000 |
6 |
1/8" - 27 |
Carbon steel, zinc-plated |
| 101HP-4-3 |
15,000 |
5 |
1/4" - 18 |
Carbon steel, zinc-plated |
| 101HP-4-4 |
15,000 |
6 |
1/4" - 18 |
Carbon steel, zinc-plated |
| 101HP-4-6 |
15,000 |
10 |
1/4" - 18 |
Carbon steel, zinc-plated |
| 101HP-6-3 |
15,000 |
5 |
3/8" - 18 |
Carbon steel, zinc-plated |
| 101HP-6-4 |
15,000 |
6 |
3/8" - 18 |
Carbon steel, zinc-plated |
| 101HP-6-4C |
15,000 |
6 |
3/8" - 18 |
Stainless steel |
| 101HP-6-6 |
15,000 |
10 |
3/8" - 18 |
Carbon steel, zinc-plated |
| 101HP-8-6 |
15,000 |
10 |
1/2" - 18 |
Carbon steel, zinc-plated |
| 106HP-4-3 |
10,000 |
5 |
7/16" - 20 |
Carbon steel, zinc-plated |
| 106HP-4-4 |
10,000 |
6 |
7/16" - 20 |
Carbon steel, zinc-plated |
| 106HP-4-4C |
10,000 |
6 |
7/16" - 20 |
Stainless steel |
| 106HP-6-4 |
10,000 |
6 |
9/16" - 18 |
Carbon steel, zinc-plated |
| 106HP-6-6 |
10,000 |
10 |
9/16" - 18 |
Carbon steel, zinc-plated |
| 106HP-6-6C |
10,000 |
10 |
9/16" - 18 |
Stainless steel |
| 106HP-8-6C |
10,000 |
10 |
3/4" - 16 |
Stainless steel |
|
