Parker Adapters

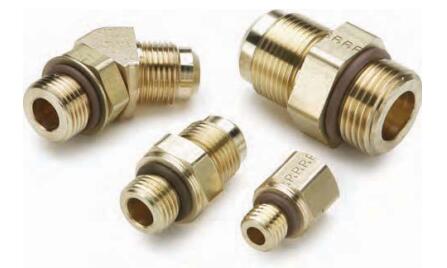

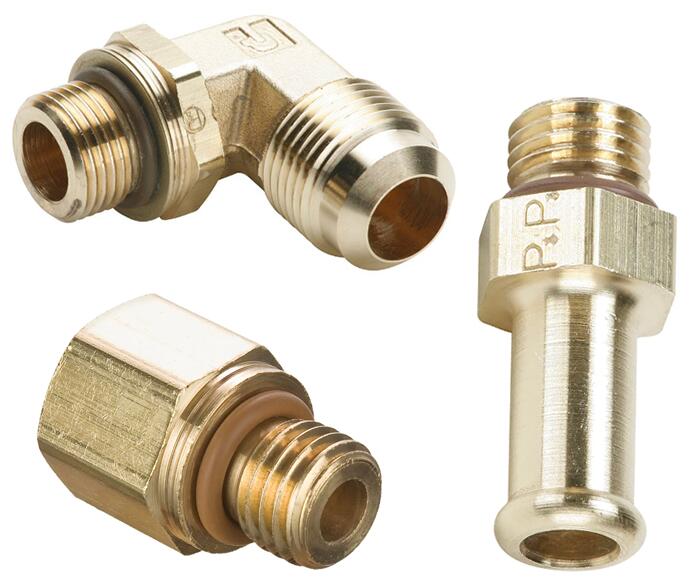

ISO Port Adapters
Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.
Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3. A Fluorocarbon O-ring is standard on all ISO port adapters so no thread sealant is needed, reducing maintenance and component replacement costs as a result of contaminating and damaging of components due to the sealant.
ISO Port Adapters
Markets:
- Industrial
- Construction
- Mobile
- Factory/process automation
Features/Benefit:
- All brass construction
- No thread sealant
- Fluorocarbon O-ring reduces maintenance and replacement costs as a result of contamination and damage to components due to sealant
- Long term sealing
- Improves assembly time
Applications:
- Air lines
- Water lines
- Cooling lines
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Maximum Operating Temperature: |
250, 160, 200 °F, 121, 71, 93 °C |
| Maximum Operating Pressure: |
1000, 750, 650, 550, 150 psi, 68, 51, 44, 37, 10 bar |
| Tube Material: |
Copper, Brass, J844 Type A & B Nylon Tubing |
| Minimum Operating Pressure: |
-53, -40 psi |
| Specifications Met: |
ISO 6149-3, SAE 2244-3 |
| O-Ring Material: |
Fluorocarbon |
| Materials of Construction: |
Brass |
| Connection Type: |
Barb, Compression, Thread and Flare |
| Application: |
Air lines, Water lines and Cooling lines |
ISO Port Adapters型号
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
| 1/8F3HG-B |
Male |
Metric Adapter |
1/8 |
Male |
1/8 |
| 149F-10-MI27 |
90° Elbow |
Flare to Metric |
5/8 |
Male Flare |
M27x2.0 |
| 159F-10-MI27 |
45° Elbow |
Flare to Metric |
5/8 |
Male Flare |
M27x2.0 |
| 159F-8-M116 |
45° Elbow |
Flare to Metric |
1/2 |
Male Flare |
M16x1.5 |
| 169HB-10-MI27 |
90° Elbow |
Beaded Hose Barb to Metric |
5/8 |
Beaded Hose Barb |
M27x2.0 |
| 169HB-16-M127 |
90° Elbow |
Beaded Hose Barb to Metric |
1 |
Beaded Hose Barb |
M27x2.0 |
| 179HB-12-M118 |
45° Elbow |
Beaded Hose Barb to Metric |
3/4 |
Beaded Hose Barb |
M18x1.5 |
| 179HB-16-MI27 |
45° Elbow |
Beaded Hose Barb to Metric |
1 |
Beaded Hose Barb |
M27x2.0 |
| 222P-2-MI10 |
Adapter |
Female Pipe to Metric |
1/8 |
Female Pipe |
M10x1.0 |
| 222P-2-MI14 |
Adapter |
Female Pipe to Metric |
1/8 |
Female Pipe |
M14x1.5 |
| 222P-4-MI12 |
Adapter |
Female Pipe to Metric |
1/4 |
Female Pipe |
M12x1.5 |
| 222P-4-MI14 |
Adapter |
Female Pipe to Metric |
1/4 |
Female Pipe |
M14x1.5 |
| 222P-6-MI16 |
Adapter |
Female Pipe to Metric |
3/8 |
Female Pipe |
M16x1.5 |
| 222P-6-MI22 |
Adapter |
Female Pipe to Metric |
3/8 |
Female Pipe |
M22x1.5 |
| 222P-8-MI27 |
Adapter |
Female Pipe to Metric |
1/2 |
Female Pipe |
M27x2.0 |
| 48F-10-M127 |
Connector |
Flare to Metric |
5/8 |
Male Flare |
M27x2.0 |
| 48F-12-MI27 |
Connector |
Flare to Metric |
3/4 |
Male Flare |
M27x2.0 |
| 48F-8-MI16 |
Connector |
Flare to Metric |
1/2 |
Male Flare |
M16x1.5 |
| 68HB-10-M127 |
Connector |
Beaded Hose Barb to Metric |
5/8 |
Beaded Hose Barb |
M27x2.0 |
| 68HB-10-MI27 |
Connector |
Beaded Hose Barb to Metric |
5/8 |
Beaded Hose Barb |
M27x2.0 |
| 68HB-6-M114 |
Connector |
Beaded Hose Barb to Metric |
3/8 |
Beaded Hose Barb |
M14x1.5 |
| 68HB-6-MI12 |
Connector |
Beaded Hose Barb to Metric |
3/8 |
Beaded Hose Barb |
M12x1.5 |
| 68HB-8-M112 |
Connector |
Beaded Hose Barb to Metric |
1/2 |
Beaded Hose Barb |
M12x1.5 |
| 68NTA-4-MI10 |
Connector |
Compression to Metric |
1/4 |
Compression |
M10x1.0 |
|
