Grease Fittings
Wellhead Grease Fittings, Leak Lock Series
Parker PGI's Leak Lock Fittings are used for emergency and temporary sealing of leaking Giant or Standard Button Head Fittings.
Parker PGI's Leak Lock Wellhead Grease Fittings are available in a standard style and nylon insert/lock-on style. These grease fittings feature a heavy-duty radial rivet crimp. This special crimp provides the best “blow-out” protection of any available crimped style fitting. The radial rivet crimp process conforms to the latest revision of NACE when manufactured with 316 SS or 4140 body material.

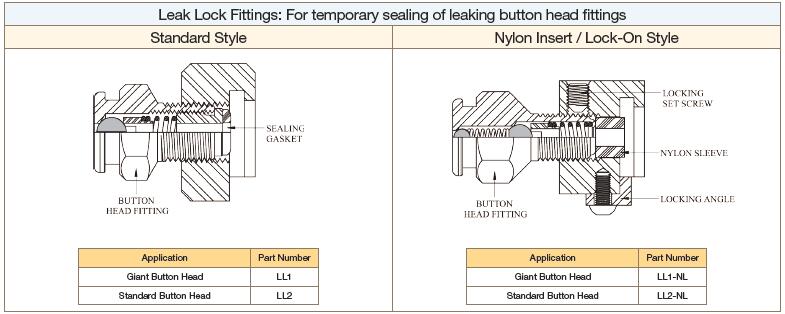

Wellhead Grease Fittings, Leak Lock Series
Markets:
- Chemical
- Petrochemical
- Oil and Gas
Features/Benefits:
- Accepts button head grease fitting coupler
- Heavy Duty Radial Rivet Crimp
- Use with Standard and Giant Button Heads
- Locking Set Screw
Applications:
- Temporary sealing of leaking button head fittings
Technical Specifications
| Product Style: |
Standard Style | Nylon Insert / Lock-On Style |
| Application: |
For Giant Button Heads | For Standard Button Heads |
Wellhead Grease Fittings, Leak Lock Series型号
| Part |
Style |
Application |
| LL1 |
Standard Style |
For Giant Button Heads |
| LL1-NL |
Nylon Insert / Lock-On Style |
For Giant Button Heads |
| LL2 |
Standard Style |
For Standard Button Heads |
| LL2-NL |
Nylon Insert / Lock-On Style |
For Standard Button Heads |
|
