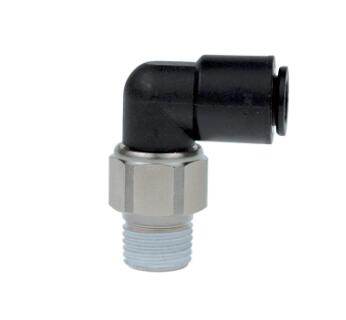

Pneumatic Self-Sealing and Oscillating Fittings - LF 3000

Parker Legris has developed two innovative push-in fittings in order to integrate various functions and allow quick installation on pneumatic circuits.

Parker Legris has developed two innovative push-in fittings in order to integrate various functions and allow quick installation on pneumatic circuits.

Pneumatic Self-Sealing and Oscillating Fittings - LF 3000

Features/Benefits:

- Self-Sealing Fittings

- Prevents fluid flow when there is no tube connected
- Circuits may remain pressurised when being checked and maintained
- When connected, the compressed air flow is restored in both directions

- Oscillating Fittings

- Rotation matched to cylinder rod stroke
- Prevents tube wear due to excessive flexing
- Optimum reliability and durability
- Simplifies circuit assembly

Markets:

- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications

Technologies:

- Self-Sealing Fittings
- Oscillating Fittings
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

- Fluids: Compressed Air, Other fluids: please consult us
- Materials: Technical polymer, nickel-plated brass, NBR
- Pressure: Vacuum to 20 bar (10 bar: self-sealing fitting)
- Temperature: -20°C to +80°C
- ? Metric: 4mm to 12 mm

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI : 1907/2006 (REACH)

Product Types:

- Self-Sealing Fittings
- Oscillating Fittings

Technical Specifications
