Pneumatic Fittings

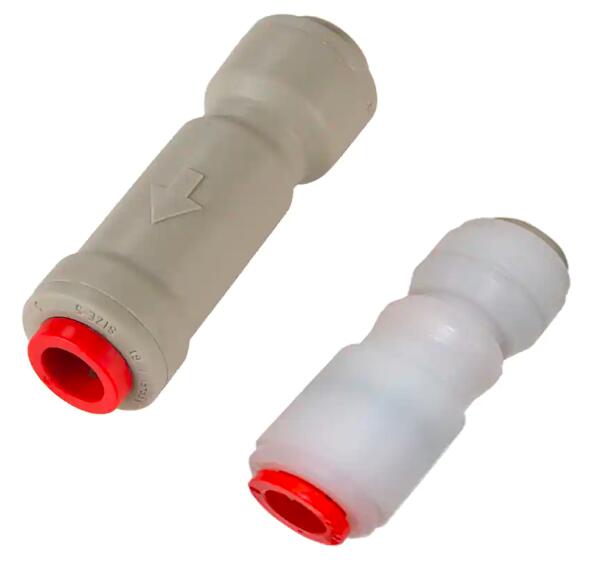

LIQUIfit Polymer Non-Return Valves

LIQUIfit non-return valves meet the requirements for conveying beverages.
They allow flow in one direction and prevent any return flow.
Fitted in the circuit, they provide total protection.

LIQUIfit? non-return valves meet the requirements for conveying beverages.

They allow flow in one direction and prevent any return flow.

Fitted in the circuit, they provide total protection.

Features/Benefits:

- Suitable for Beverage Applications

- Fully compatible for use with water, beverages and liquid food-stuffs (liquids and gas)
- Very low cracking threshold
- Excellent chemical compatibility
- Resistant to cleaning products
- Hygienic design with smooth surfaces
- Fluid direction indicated
- EPDM sealing technology

Markets:

- Food and Beverage
- Water

Applications:

- Circuit Protection for Water Softeners, Water Treatment, Water Purification Systems
- Circuit Protection for Drinks Dispensers, Hot & Cold Water Systems

Technologies:

- Food and beverage
- Non-return valve
- Check valve
- Function fitting
- Pneumatic system
- Pneumatic fittings

Technical Characteristics:

- Fluids: Water, beverages, liquid foodstuffs
- Materials: EPDM, acetal, technical polymer, stainless steel, silicone-free
- Pressure: Vacuum to 10 bar
- Temperature: 0°C to +65°C
- Cracking pressure: 0.02 bar

Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- FDA: 21 CFR 177.1550
- NSF 51 (referenced material)
- NSF 61
- RG: 1907/2006 (REACH)

Product Types:

- Single Non-Return Valve

Technical Specifications

LIQUIfit Polymer Non-Return Valves 型号
