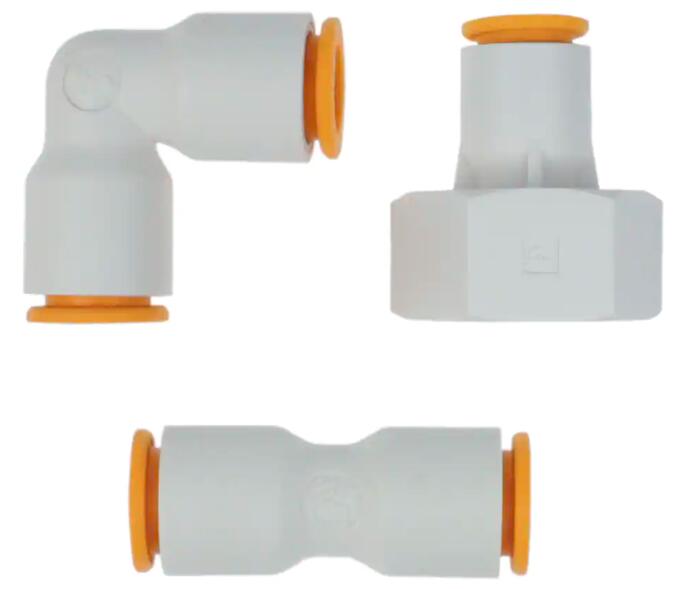

LIQUIfit+ Push-In Fittings for Sensitive Fluids

For the transfer of sensitive fluids, the LIQUIfit+ range reduces the growth of bacteria in your circuits for 100% cleanliness after cleaning, and can be directly connected to stainless steel tubing, without grooving.

Designed for the transfer of sensitive fluids, the LIQUIfit+ range reduces the growth of bacteria in your circuits. By providing you with 100% cleanliness after cleaning, the LIQUIfit+ fittings helps reducing maintenance costs. Those fittings can be directly connected to 304 and 316L stainless steel tubing, without grooving.

Features/Benefits:

- Zero Retention for 100% Cleanliness

- Up to 10 times less microbial growth within the ?tting
- Elimination of 99.9% of bacteria during cleaning operations
- No degradation of the beverage taste
- Preservation of the integrity of sensitive or industrial ?uids
- Extension of the ?tting's life due to the absence of bacteria after cleaning

- Quality & Reliability

- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Quality approved for contact with food
- Excellent chemical resistance (chlorine, cleaning agents, UV...)
- Excellent long-term mechanical resistance
- Safety clip to avoid any untimely disconnection

- Innovative Technology

- Patented push-in connection, unique on stainless steel tubing (without preparation) and on polymer tubing
- Extremely compact
- 100% bio-based material
- Patented sealing technology (FR29461418)
- No tube movement after connection

Markets:

- Food and Beverage
- Medical
- Industrial Chemical Processing
- Pharmaceutical

Applications:

- Sensitive Fluids Conveying up to High Temperatures
- Brewing Systems
- Hot & Cold Drinks Dispensers
- Water Dispensers
- Water Purification Systems


Technologies:
- Push-In Connection and Disconnection
- Push-In Fittings
- Polymer Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:
- Fluids: Beer, Water, Beverages, Industrial Fluids
- Materials: Biopolymer, EPDM
- Pressure: Vacuum to 16 bar
- Temperature: -10°C to +95°C
- ? inch: 5-16" to 1/2"

Regulations:
- DI: 2002/95/EC (RoHS), 2011/65/EC
- RG: 1935/2004/EC
- FDA: 21 CFR
- NSF51
- NSF/ANSI 61 - C HOT

Product Types:
- Stud Fittings
- Equal Tube-To-Tube Connectors
- Unequal Tube-To-Tube Connectors
- Equal Elbow
- Unequal Elbow
- Equal Plug-In Elbow

Technical Specifications

LIQUIfit+ Push-In Fittings for Sensitive Fluids 型号
