Parker Fittings接头
Parker Adapters

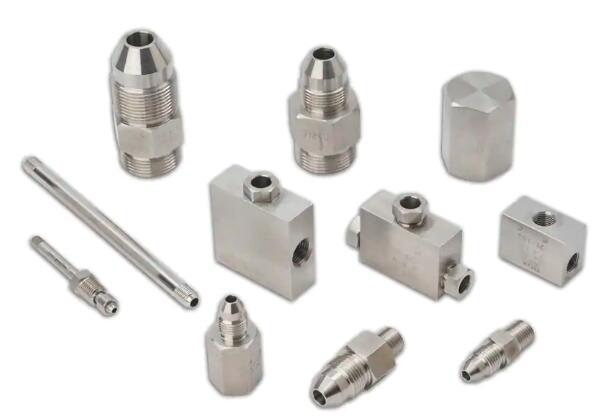

Medium Pressure Adapters

Medium Pressure adapters have a 58/60 degree coned and threaded tubing design with a maximum working pressure rating of 20,000 psi.





Parker's Medium Pressure adapters provide maximum flow of liquids and gases at elevated pressures. They are ideal for waterblast, pressure testing and hydraulic test stand applications of 20,000 psi or less.



Medium Pressure Adapters



Markets:
- Waterblast
- Hydraulics

Features/Benefits:
- An industry standard for use at elevated pressures
- Large orifice allows for maximum flow of liquids and gases
- Suitable for repetitive assembly and disassembly

Applications:
- Hydraulic systems and waterblast applications with working pressures up to 20,000 psi



Technical Specifications

Connection 1 Size: Medium Pressure Female, Medium Pressure Male, High Pressure Female
Connection 2 Size: Medium Pressure Male, High Pressure Male, BSP Male, Medium Pressure Female, High Pressure Female
Connection 1 Thread Size: 7/16 - 20 UNF, 9/16 - 18 UNF, 13/16 - 16 UNF, 3/4 - 14 NPSM, 1-3/8 - 12 UNF, 3/4 - 16 UNF, 1-1/8 - 12 UNF inch
Connection 2 Thread Size: 9/16 - 18 UNF, 13/16 - 16 UNF, 3/4 - 14 NPSM, 1 - 14 UNS LH, 7/16 - 20 UNF, 13/16 - 20 UNF, 1-3/8 - 12 UNF, 3/4 - 16 UNF, 1-1/8 - 12 UNF, G1/4 - 19, G3/8 - 19 inch
Materials of Construction: 316 Stainless Steel
Overall Length: varies inch, varies mm
Hex Size: 0.75, 0.87, 1.12, 1, 1.37, 1.75, 0.62, 0.875, 1.375, 0.63 inch, 19.05, 22.1, 28.45, 25.4, 34.8, 44.45, 15.748, 22.225, 28.448, 22.098, 34.925, 16.002, 34.798 mm
Maximum Operating Pressure: 20000 psi, 138 MPa



Medium Pressure Adapters型号

Part Connection 1 Tube O.D. (inch) Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (inch)
5Y5Y-12-12C 3/4 Medium Pressure Female Medium Pressure Female 3/4
5Y5Y-12-16C 3/4 Medium Pressure Female Medium Pressure Female 1
5Y5Y-16-16C 1 Medium Pressure Female Medium Pressure Female 1
5Y5Y-4-12C 1/4 Medium Pressure Female Medium Pressure Female 3/4
5Y5Y-4-16C 1/4 Medium Pressure Female Medium Pressure Female 1
5Y5Y-4-4C 1/4 Medium Pressure Female Medium Pressure Female 1/4
5Y5Y-4-6C 1/4 Medium Pressure Female Medium Pressure Female 3/8
5Y5Y-4-9C 1/4 Medium Pressure Female Medium Pressure Female 9/16
5Y5Y-6-12C 3/8 Medium Pressure Female Medium Pressure Female 3/4
5Y5Y-6-16C 3/8 Medium Pressure Female Medium Pressure Female 1
5Y5Y-6-6C 3/8 Medium Pressure Female Medium Pressure Female 3/8
5Y5Y-6-9C 3/8 Medium Pressure Female Medium Pressure Female 9/16
5Y5Y-9-12C 9/16 Medium Pressure Female Medium Pressure Female 3/4
5Y5Y-9-16C 9/16 Medium Pressure Female Medium Pressure Female 1
5Y5Y-9-9C 9/16 Medium Pressure Female Medium Pressure Female 9/16
5Y6Y-12-4C 3/4 Medium Pressure Female High Pressure Female 1/4
5Y6Y-12-6C 3/4 Medium Pressure Female High Pressure Female 3/8
5Y6Y-12-9C 3/4 Medium Pressure Female High Pressure Female 9/16
5Y6Y-16-4C 1 Medium Pressure Female High Pressure Female 1/4
5Y6Y-16-6C 1 Medium Pressure Female High Pressure Female 3/8
5Y6Y-16-9C 1 Medium Pressure Female High Pressure Female 9/16
5Y6Y-4-4C 1/4 Medium Pressure Female High Pressure Female 1/4
5Y6Y-4-6C 1/4 Medium Pressure Female High Pressure Female 3/8
5Y6Y-4-9C 1/4 Medium Pressure Female High Pressure Female 9/16
5Y6Y-6-4C 3/8 Medium Pressure Female High Pressure Female 1/4
5Y6Y-6-6C 3/8 Medium Pressure Female High Pressure Female 3/8
5Y6Y-6-9C 3/8 Medium Pressure Female High Pressure Female 9/16
5Y6Y-9-4C 9/16 Medium Pressure Female High Pressure Female 1/4
5Y6Y-9-6C 9/16 Medium Pressure Female High Pressure Female 3/8
5Y6Y-9-9C 9/16 Medium Pressure Female High Pressure Female 9/16
5YY5-12-16C 3/4 Medium Pressure Female Medium Pressure Male 1
5YY5-12-4C 3/4 Medium Pressure Female Medium Pressure Male 1/4
5YY5-12-6C 3/4 Medium Pressure Female Medium Pressure Male 3/8
5YY5-12-9C 3/4 Medium Pressure Female Medium Pressure Male 9/16
5YY5-16-12C 1 Medium Pressure Female Medium Pressure Male 3/4
5YY5-16-4C 1 Medium Pressure Female Medium Pressure Male 1/4
5YY5-16-6C 1 Medium Pressure Female Medium Pressure Male 3/8
5YY5-16-9C 1 Medium Pressure Female Medium Pressure Male 9/16
5YY5-4-12C 1/4 Medium Pressure Female Medium Pressure Male 3/4
5YY5-4-16C 1/4 Medium Pressure Female Medium Pressure Male 1
5YY5-4-6C 1/4 Medium Pressure Female Medium Pressure Male 3/8
5YY5-4-9C 1/4 Medium Pressure Female Medium Pressure Male 9/16
5YY5-6-12C 3/8 Medium Pressure Female Medium Pressure Male 3/4
5YY5-6-16C 3/8 Medium Pressure Female Medium Pressure Male 1
5YY5-6-4C 3/8 Medium Pressure Female Medium Pressure Male 1/4
5YY5-6-9C 3/8 Medium Pressure Female Medium Pressure Male 9/16
5YY5-9-12C 9/16 Medium Pressure Female Medium Pressure Male 3/4
5YY5-9-16C 9/16 Medium Pressure Female Medium Pressure Male 1
5YY5-9-4C 9/16 Medium Pressure Female Medium Pressure Male 1/4
5YY5-9-6C 9/16 Medium Pressure Female Medium Pressure Male 3/8
5YY6-12-4C 3/4 Medium Pressure Female High Pressure Male 1/4
5YY6-12-6C 3/4 Medium Pressure Female High Pressure Male 3/8
5YY6-12-9C 3/4 Medium Pressure Female High Pressure Male 9/16
5YY6-16-4C 1 Medium Pressure Female High Pressure Male 1/4
5YY6-16-6C 1 Medium Pressure Female High Pressure Male 3/8
5YY6-16-9C 1 Medium Pressure Female High Pressure Male 9/16
5YY6-4-4C 1/4 Medium Pressure Female High Pressure Male 1/4
5YY6-4-6C 1/4 Medium Pressure Female High Pressure Male 3/8
5YY6-4-9C 1/4 Medium Pressure Female High Pressure Male 9/16
5YY6-6-4C 3/8 Medium Pressure Female High Pressure Male 1/4
5YY6-6-6C 3/8 Medium Pressure Female High Pressure Male 3/8
5YY6-6-9C 3/8 Medium Pressure Female High Pressure Male 9/16
5YY6-9-4C 9/16 Medium Pressure Female High Pressure Male 1/4
5YY6-9-6C 9/16 Medium Pressure Female High Pressure Male 3/8
5YY6-9-9C 9/16 Medium Pressure Female High Pressure Male 9/16
6YY5-4-12C 3/8 High Pressure Female Medium Pressure Male 3/4
6YY5-4-16C 3/8 High Pressure Female Medium Pressure Male 1
6YY5-4-4C 3/8 High Pressure Female Medium Pressure Male 1/4
6YY5-4-6C 3/8 High Pressure Female Medium Pressure Male 3/8
6YY5-4-9C 3/8 High Pressure Female Medium Pressure Male 9/16
6YY5-6-12C 3/4 High Pressure Female Medium Pressure Male 3/4
6YY5-6-16C 3/4 High Pressure Female Medium Pressure Male 1
6YY5-6-4C 3/4 High Pressure Female Medium Pressure Male 1/4
6YY5-6-6C 3/4 High Pressure Female Medium Pressure Male 3/8
6YY5-6-9C 3/4 High Pressure Female Medium Pressure Male 9/16
6YY5-9-12C 9/16 High Pressure Female Medium Pressure Male 3/4
6YY5-9-16C 9/16 High Pressure Female Medium Pressure Male 1
6YY5-9-4C 9/16 High Pressure Female Medium Pressure Male 1/4
6YY5-9-6C 9/16 High Pressure Female Medium Pressure Male 3/8
6YY5-9-9C 9/16 High Pressure Female Medium Pressure Male 9/16
Y5D9-4-4C 1/4 Medium Pressure Male BSP Male 0.518
Y5D9-6-4C 3/8 Medium Pressure Male BSP Male 0.518
Y5D9-6-6C 3/8 Medium Pressure Male BSP Male 0.656
Y5D9-9-6C 9/16 Medium Pressure Male BSP Male 0.656
Y5Y5-12-12C 3/4 Medium Pressure Male Medium Pressure Male 3/4
Y5Y5-12-16C 3/4 Medium Pressure Male Medium Pressure Male 1
Y5Y5-16-16C 1 Medium Pressure Male Medium Pressure Male 1
Y5Y5-4-12C 1/4 Medium Pressure Male Medium Pressure Male 3/4
Y5Y5-4-16C 1/4 Medium Pressure Male Medium Pressure Male 1
Y5Y5-4-4C 1/4 Medium Pressure Male Medium Pressure Male 1/4
Y5Y5-4-6C 1/4 Medium Pressure Male Medium Pressure Male 3/8
Y5Y5-4-9C 1/4 Medium Pressure Male Medium Pressure Male 9/16
Y5Y5-6-12C 3/8 Medium Pressure Male Medium Pressure Male 3/4
Y5Y5-6-16C 3/8 Medium Pressure Male Medium Pressure Male 1
Y5Y5-6-6C 3/8 Medium Pressure Male Medium Pressure Male 3/8
Y5Y5-6-9C 3/8 Medium Pressure Male Medium Pressure Male 9/16
Y5Y5-9-12C 9/16 Medium Pressure Male Medium Pressure Male 3/4
Y5Y5-9-16C 9/16 Medium Pressure Male Medium Pressure Male 1
Y5Y5-9-9C 9/16 Medium Pressure Male Medium Pressure Male 9/16
Y5Y6-12-4C 3/4 Medium Pressure Male High Pressure Male 1/4
Y5Y6-12-6C 3/4 Medium Pressure Male High Pressure Male 3/8
Y5Y6-12-9C 3/4 Medium Pressure Male High Pressure Male 9/16
Y5Y6-16-4C 1 Medium Pressure Male High Pressure Male 1/4
Y5Y6-16-6C 1 Medium Pressure Male High Pressure Male 3/8
Y5Y6-16-9C 1 Medium Pressure Male High Pressure Male 9/16
Y5Y6-4-4C 1/4 Medium Pressure Male High Pressure Male 1/4
Y5Y6-4-6C 1/4 Medium Pressure Male High Pressure Male 3/8
Y5Y6-4-9C 1/4 Medium Pressure Male High Pressure Male 9/16
Y5Y6-6-4C 3/8 Medium Pressure Male High Pressure Male 3/8
Y5Y6-6-9C 3/8 Medium Pressure Male High Pressure Male 9/16
Y5Y6-9-4C 9/16 Medium Pressure Male High Pressure Male 1/4
Y5Y6-9-6C 9/16 Medium Pressure Male High Pressure Male 3/8
Y5Y6-9-9C 9/16 Medium Pressure Male High Pressure Male 9/16
