Parker Needle Valves

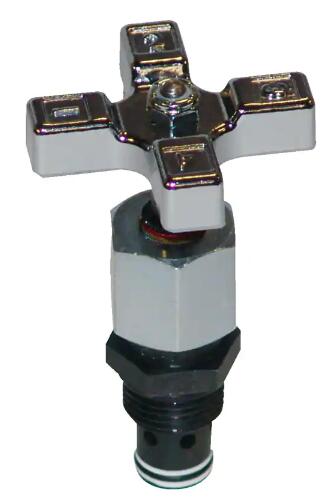

Precision Needle Valve – MVI Series
Parker's MVI series is a cartridge-type metering valve that meters flow in both directions.
Parker's MVI cartridge-type needle valves are designed for installation in a precision-machined cavity made in the manifold of the machine and can be used in air, water & oil applications. These valves provide precise metering control and full shutoff of flow. An o-ring and backup ring installed on the cartridge fully isolate the inlet and outlet ports of the machined cavity from each other.
Precision Needle Valve – MVI Series
Markets:
- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil &Gas
- Power Generation
- Vehicle Assembly Facilities
Features/Benefits:
- High efficiency o-ring stem seal eliminates packing
- Fine and micro-fine needles available for extremely fine control
- The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
- Suitable for general hydraulic applications
Technical Specifications
| Product Style: |
Metering Valve |
| Connection Type: |
NPT |
| Body Material: |
Steel |
| Maximum Flow Rate: |
95, 19, 11, 2, 30, 57 L/min, 25, 5, 2.8, 0.5, 8, 15 Gal/min |
| Maximum Operating Pressure: |
5000 psi, 340 bar |
| Maximum Operating Temperature: |
+250, +302, +400 °F, +121, +150, +205 °C |
| Minimum Operating Temperature: |
-40°, -58°, -15° °F, -40°, -50°, -26° °C |
| Mounting Type: |
Cartridge Type |
| Brand: |
Colorflow |
| Media: |
Oil |
Precision Needle Valve – MVI Series 型号
|
