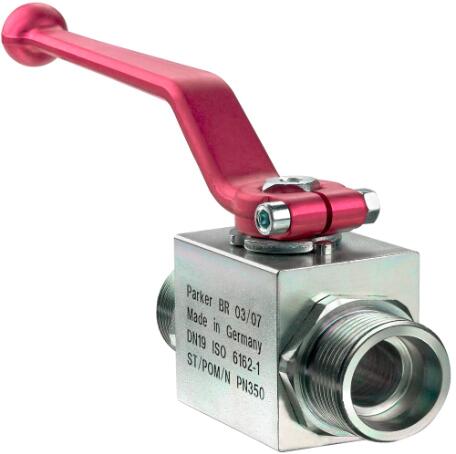

2/2-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system.
2/2-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system. Ball valves with a detent position or fastening bore are also part of the programme.
| Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
| KH06L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH06L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH06L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Stainless steel |
na |
| KH06LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH06LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH06LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel DIN 50938-FE//A/T4 |
na |
| KH06ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH06ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH06ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
6 |
6 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH08L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH08L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH08L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Stainless steel |
na |
| KH08LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH08LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH08LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel DIN 50938-FE//A/T4 |
na |
| KH08S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH08S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH08S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Stainless steel |
na |
| KH08SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH08SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH08SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel DIN 50938-FE//A/T4 |
na |
| KH08ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH08ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH08ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH08ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH08ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH08ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
8 |
8 |
na |
na |
4 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH1/271X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/2 |
G 1/2 |
12 |
Stainless steel |
na |
| KH1/2CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/2 |
G 1/2 |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1/2NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/2-14 NPT |
1/2-14 NPT |
12 |
Stainless steel |
na |
| KH1/2NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/2-14 NPT |
1/2-14 NPT |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1/2NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/2-14 NPT |
1/2-14 NPT |
12 |
Steel DIN 50938-FE//A/T4 |
na |
| KH1/2X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/2 |
G 1/2 |
12 |
Steel DIN 50938-FE//A/T4 |
na |
| KH1/471X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/4 |
G 1/4 |
6 |
Stainless steel |
na |
| KH1/4CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/4 |
G 1/4 |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1/4NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/4-18 NPT |
1/4-18 NPT |
6 |
Stainless steel |
na |
| KH1/4NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/4-18 NPT |
1/4-18 NPT |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1/4NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/4-18 NPT |
1/4-18 NPT |
6 |
Steel DIN 50938-FE//A/T4 |
na |
| KH1/4X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/4 |
G 1/4 |
6 |
Steel DIN 50938-FE//A/T4 |
na |
| KH1/871X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/8 |
G 1/8 |
4 |
Stainless steel |
na |
| KH1/8CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1/8 |
G 1/8 |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1/8NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/8.27NPT |
1/8.27NPT |
4 |
Stainless steel |
na |
| KH1/8NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/8-27 NPT |
1/8-27 NPT |
4 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1/8NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1/8-27 NPT |
1/8-27 NPT |
4 |
Steel DIN 50938-FE//A/T4 |
na |
| KH1/8X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G1/8 |
G 1/8 |
4 |
Steel DIN 50938-FE//A/T4 |
na |
| KH10L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH10L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH10L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Stainless steel |
na |
| KH10LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH10LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH10LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel DIN 50938-FE//A/T4 |
na |
| KH10S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH10S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH10S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Stainless steel |
na |
| KH10SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH10SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH10SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel DIN 50938-FE//A/T4 |
na |
| KH10ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH10ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH10ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH10ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH10ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH10ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
10 |
10 |
na |
na |
6 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH11/271X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
40 |
Stainless steel |
na |
| KH11/2CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
40 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH11/2DN25CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH11/2DN25X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH11/2NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/2-11.5 NPT |
1 1/2-11.5 NPT |
40 |
Stainless steel |
na |
| KH11/2NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/2-11.5 NPT |
1 1/2-11.5 NPT |
40 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH11/2NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/2-11.5 NPT |
1 1/2-11.5 NPT |
40 |
Steel DIN 50938-FE//A/T4 |
na |
| KH11/2X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/2 |
G 1 1/2 |
40 |
Steel DIN 50938-FE//A/T4 |
na |
| KH11/471X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
32 |
Stainless steel |
na |
| KH11/4CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH11/4DN25CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH11/4DN25X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH11/4NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/4-11.5 NPT |
1 1/4-11.5 NPT |
32 |
Stainless steel |
na |
| KH11/4NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/4-11.5 NPT |
1 1/4-11.5 NPT |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH11/4NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1 1/4-11.5 NPT |
1 1/4-11.5 NPT |
32 |
Steel DIN 50938-FE//A/T4 |
na |
| KH11/4X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 1/4 |
G 1 1/4 |
32 |
Steel DIN 50938-FE//A/T4 |
na |
| KH12L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH12L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH12L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Stainless steel |
na |
| KH12LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH12LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH12LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel DIN 50938-FE//A/T4 |
na |
| KH12S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH12S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH12S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Stainless steel |
na |
| KH12SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH12SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH12SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel DIN 50938-FE//A/T4 |
na |
| KH12ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH12ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH12ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH12ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH12ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH12ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
12 |
12 |
na |
na |
8 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH14S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH14S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH14S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Stainless steel |
na |
| KH14SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH14SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH14SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel DIN 50938-FE//A/T4 |
na |
| KH14ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH14ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH14ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
14 |
14 |
na |
na |
10 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH15L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH15L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH15L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Stainless steel |
na |
| KH15LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH15LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH15LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel DIN 50938-FE//A/T4 |
na |
| KH15ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH15ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH15ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
15 |
15 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH16S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH16S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH16S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Stainless steel |
na |
| KH16SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH16SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH16SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel DIN 50938-FE//A/T4 |
na |
| KH16ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH16ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH16ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
16 |
16 |
na |
na |
12 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH171X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 |
G 1 |
25 |
Stainless steel |
na |
| KH18L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH18L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH18L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16/12 |
Stainless steel |
na |
| KH18LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH18LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH18LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel DIN 50938-FE//A/T4 |
na |
| KH18ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH18ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH18ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
18 |
18 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH1CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 |
G 1 |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1-11.5 NPT |
1-11.5 NPT |
25 |
Stainless steel |
na |
| KH1NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1-11.5 NPT |
1-11.5 NPT |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH1NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
1-11.5 NPT |
1-11.5 NPT |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH1X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 1 |
G 1 |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH20S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH20S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH20S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16/12 |
Stainless steel |
na |
| KH20SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH20SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH20SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel DIN 50938-FE//A/T4 |
na |
| KH20ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH20ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16/12 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH20ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
20 |
20 |
na |
na |
16 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH22L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH22L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH22L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Stainless steel |
na |
| KH22LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH22LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH22LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel DIN 50938-FE//A/T4 |
na |
| KH22ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH22ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH22ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
22 |
22 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH25S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH25S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH25S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Stainless steel |
na |
| KH25SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH25SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH25SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel DIN 50938-FE//A/T4 |
na |
| KH25ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH25ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH25ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
25 |
25 |
na |
na |
20 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH271X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 2 |
G 2 |
50 |
Stainless steel |
na |
| KH28L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH28L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH28L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Stainless steel |
na |
| KH28LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH28LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH28LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH28ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH28ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH28ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
28 |
28 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH2CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 2 |
G 2 |
50 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH2X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 2 |
G 2 |
50 |
Steel DIN 50938-FE//A/T4 |
na |
| KH3/471X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/4 |
G 3/4 |
20 |
Stainless steel |
na |
| KH3/4CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/4 |
G 3/4 |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH3/4NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/4-14 NPT |
3/4-14 NPT |
20 |
Stainless steel |
na |
| KH3/4NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/4-14 NPT |
3/4-14 NPT |
20 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH3/4NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/4-14 NPT |
3/4-14 NPT |
20 |
Steel DIN 50938-FE//A/T4 |
na |
| KH3/4X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/4 |
G 3/4 |
20 |
Steel DIN 50938-FE//A/T4 |
na |
| KH3/871X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/8 |
G 3/8 |
10 |
Stainless steel |
na |
| KH3/8CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/8 |
G 3/8 |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH3/8NPT71X |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/8-18 NPT |
3/8-18 NPT |
10 |
Stainless steel |
na |
| KH3/8NPTCFX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/8-18 NPT |
3/8-18 NPT |
10 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH3/8NPTX |
2-way NPT ball valve |
na |
Female NPT thread (SAE 476) |
Female NPT thread (SAE 476) |
na |
na |
3/8-18 NPT |
3/8-18 NPT |
10 |
Steel DIN 50938-FE//A/T4 |
na |
| KH3/8X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 3/8 |
G 3/8 |
10 |
Steel DIN 50938-FE//A/T4 |
na |
| KH30S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH30S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH30S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Stainless steel |
na |
| KH30SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH30SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH30SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH30ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH30ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH30ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
30 |
30 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH35L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH35L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH35L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Stainless steel |
na |
| KH35LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH35LCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH35LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH35LCFXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH35LDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH35LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel DIN 50938-FE//A/T4 |
na |
| KH35LXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH35ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH35ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH35ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH35ZLCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH35ZLDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
35 |
35 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH38S |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH38S71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH38S71X |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Stainless steel |
na |
| KH38SCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH38SCFDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH38SCFX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH38SCFXDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH38SDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH38SX |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel DIN 50938-FE//A/T4 |
na |
| KH38SXDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH38ZS |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH38ZS71 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH38ZSCF |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
32 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH38ZSCFDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH38ZSDN25 |
2-way ball valve |
Heavy |
24° cone end |
24° cone end |
38 |
38 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH42L |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH42L71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| KH42L71X |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Stainless steel |
na |
| KH42LCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH42LCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH42LCFX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH42LCFXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH42LDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel DIN 50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH42LX |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel DIN 50938-FE//A/T4 |
na |
| KH42LXDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel DIN 50938-FE//A/T4 |
na |
| KH42ZL |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH42ZL71 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| KH42ZLCF |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
40 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH42ZLCFDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel, zinc plated, Cr(VI)-free |
Pre-assembled with EO-2 functional nut |
| KH42ZLDN25 |
2-way ball valve |
Light |
24° cone end |
24° cone end |
42 |
42 |
na |
na |
25 |
Steel DIN 50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH5/8CFX |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 5/8 |
G 5/8 |
16 |
Steel, zinc plated, Cr(VI)-free |
na |
| KH5/8X |
2-way BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
G 5/8 |
G 5/8 |
16 |
Steel DIN 50938-FE//A/T4 |
na |
