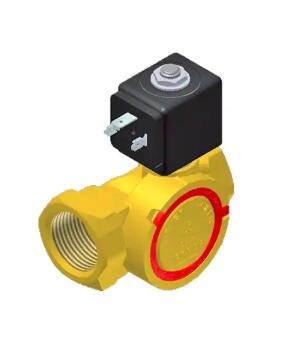

Parker 2-Way Electric Impulse, 1" General Purpose Solenoid Valves
Parkers' 2-Way Controlled by Electric Impulse G 1" Solenoid Valves provide operating pressures up to 12 bar and flow factors up to 6.6 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.
Parkers' 2-Way Controlled by Electric Impulse G 1" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .
Markets:
- Food & Beverage
- Life Sciences
- Industrial Equipment
- Oil & Gas
Features/Benefits:
- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Technical Specifications
| Product Series: |
General Purpose Solenoid Valves |
| Valve Type: |
2-Way |
| Function: |
Latching (Electric Impulse) |
| Port Size: |
1 inch |
| Input Voltage: |
220-230VAC/50-60Hz or 24VDC |
| Body Material: |
Brass |
| Seal Material: |
FKM |
| Orifice 1 Size: |
18 mm |
| Flow Coefficient 1: |
6.6 m3/hour, 110 L/min |
| Power Consumption: |
11 to 13 W |
| Coil Type: |
Screw terminal 40 mm |
| Maximum Pressure Differential: |
12 bar |
| Minimum Pressure Differential: |
0.3 bar |
| Number of Ports: |
2 |
| Actuation Type: |
Pilot Operated |
| Media: |
General Purpose for Air, Liquids, Gases and Oil |
| Port Type: |
BSP |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a, n/a |
| Minimum Fluid Temperature: |
n/a |
| Maximum Fluid Temperature: |
n/a |
| Coil Specifications Met: |
IP44 |
Parker 2-Way Electric Impulse, 1" General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Power (Watts) |
Coil Type |
| 325K4706-4269-4849903P |
220-230VAC/50-60Hz |
11 |
Coil with screw terminal,bistable,for impulse applications, 40 mm |
| 325K4706-4269-485400C2 |
24VDC |
13 |
Coil with screw terminal,bistable,for impulse applications, 40 mm |
|
