Parker派克电磁阀
Parker Skinner Solenoid Valves

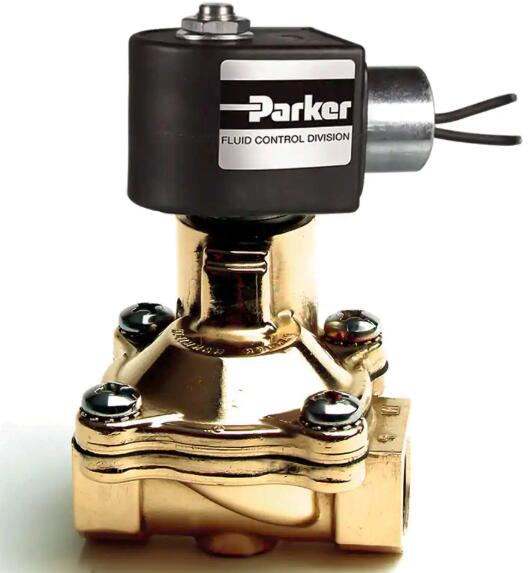

Parker 2-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/2" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 4.4 CV's. They offer multiple body materials, mounting positions and Class F or H or NEMA 4X, 7 or 9 coils for all flow applications.





Parker's 2-Way Normally Closed 1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.



Parker 2-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves



Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation

Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff

Applications:
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment


Technical Specifications

Product Series: 7000 and Gold Ring Series
Valve Type: 2-Way
Function: Normally Closed
Port Size: 1/2 inch
Input Voltage: Up to 240/60 (AC) or 24 (VDC)
Body Material: Stainless or Brass
Seal Material: NBR, FKM, PTFE, EPDM
Orifice 1 Size: 7/16 to 5/8 inch
Flow Coefficient 1: 3.6 to 4.4 Cv
Power Consumption: 6 to 22 (AC) or 10 to 22 (DC) W
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H and 1/4 " Tab Terminal, Class F
Maximum Pressure Differential: 35 to 300 (AC) or 10 to 300 (DC) psi
Number of Ports: 2
Actuation Type: Direct Acting, Direct Lift, Pilot, Center Diaphragm, Piloted, Diaphragm, Pivoted Edge or Hung Diaphragm
Media: General Purpose for Air, Liquids and Gases and General Purpose for Steam
Port Type: NPT
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 353 °F
Coil Specifications Met: NEMA 4X, 7 or 9



Parker 2-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves型号

Part Voltage (V) Body Material Seal Material Orifice 1 Size (inch) Flow Factor 1 (Cv) Power (Watts) Coil Type
08F22C2140A3F4C75 12 VDC Brass NBR 5/8 4 11.5 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140A3F4C80 24 VDC Brass NBR 5/8 4 11.5 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140A3FPH75 12 VDC Brass NBR 5/8 4 11.5 Watt (DC) DIN Form A, Class F
08F22C2140A3FPH80 24 VDC Brass NBR 5/8 4 11.5 Watt (DC) DIN Form A, Class F
08F22C2140AAF4C01 24/60 Brass NBR 5/8 4 6 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140AAF4C05 110/50-120/60 Brass NBR 5/8 4 6 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140AAF4C15 220/50-240/60 Brass NBR 5/8 4 6 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140AAFPH01 24/60 Brass NBR 5/8 4 6 Watt (AC) DIN Form A, Class F
08F22C2140AAFPH05 110/50-120/60 Brass NBR 5/8 4 6 Watt (AC) DIN Form A, Class F
08F22C2140AAFPH15 220/50-240/60 Brass NBR 5/8 4 6 Watt (AC) DIN Form A, Class F
08F22C2140ADF4C01 24/60 Brass NBR 5/8 4 16 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140ADF4C05 110/50-120/60 Brass NBR 5/8 4 16 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140ADF4C15 220/50-240/60 Brass NBR 5/8 4 16 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F22C2140ADFPH05 110/50-120/60 Brass NBR 5/8 4 16 Watt (AC) DIN Form A, Class F
08F22C2140ADFPH15 220/50-240/60 Brass NBR 5/8 4 16 Watt (AC) DIN Form A, Class F
08F23C2140A3F4C75 12 VDC Brass NBR 5/8 4 11.5 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C2140A3F4C80 24 VDC Brass NBR 5/8 4 11.5 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C2140A3FPH75 12 VDC Brass NBR 5/8 4 11.5 Watt (DC) DIN Form A, Class F
08F23C2140A3FPH80 24 VDC Brass NBR 5/8 4 11.5 Watt (DC) DIN Form A, Class F
08F23C2140ACF4C01 24/60 Brass NBR 5/8 4 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C2140ACF4C05 110/50-120/60 Brass NBR 5/8 4 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C2140ACF4C15 220/50-240/60 Brass NBR 5/8 4 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C2140ACFPH01 24/60 Brass NBR 5/8 4 11 Watt (AC) DIN Form A, Class F
08F23C2140ACFPH05 110/50-120/60 Brass NBR 5/8 4 11 Watt (AC) DIN Form A, Class F
08F23C2140ACFPH15 220/50-240/60 Brass NBR 5/8 4 11 Watt (AC) DIN Form A, Class F
08F23C6140ACF4C01 24/60 316 Stainless Casting NBR 5/8 4 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C6140ACF4C05 110/50-120/60 316 Stainless Casting NBR 5/8 4 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C6140ACF4C15 220/50-240/60 316 Stainless Casting NBR 5/8 4 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F23C6140ACFPH01 24/60 316 Stainless Casting NBR 5/8 4 11 Watt (AC) DIN Form A, Class F
08F23C6140ACFPH05 110/50-120/60 316 Stainless Casting NBR 5/8 4 11 Watt (AC) DIN Form A, Class F
08F23C6140ACFPH15 220/50-240/60 316 Stainless Casting NBR 5/8 4 11 Watt (AC) DIN Form A, Class F
08F25C2132ACF4C01 24/60 Brass NBR 1/2 3.6 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F25C2132ACF4C05 110/50-120/60 Brass NBR 1/2 3.6 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F25C2132ACF4C15 220/50-240/60 Brass NBR 1/2 3.6 11 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
08F25C2132ACFPH01 24/60 Brass NBR 1/2 3.6 11 Watt (AC) DIN Form A, Class F
08F25C2132ACFPH05 110/50-120/60 Brass NBR 1/2 3.6 11 Watt (AC) DIN Form A, Class F
08F25C2132ACFPH15 220/50-240/60 Brass NBR 1/2 3.6 11 Watt (AC) DIN Form A, Class F
7121KBN44V00N0C111C1 12 VDC Brass FKM 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7121KBN44V00N0C111C2 24 VDC Brass FKM 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7121KBN44V00N0C222C1 12 VDC Brass FKM 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7121KBN44V00N0C222C2 24 VDC Brass FKM 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7121KBN44V00N0C222Q3 220/50-240/60 Brass FKM 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7121KBN44V00N0C322C1 12 VDC Brass FKM 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7121KBN44V00N0C322C2 24 VDC Brass FKM 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7121KBN44V00N0C322P3 110/50-120/60 Brass FKM 7/16 2.5 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7121KBN44V00N0D100Q3 220/50-240/60 Brass FKM 7/16 2.5 10 Watt (AC) DIN Form A, Class F
7121KBN44V00N0D200C1 12 VDC Brass FKM 7/16 2.5 10 Watt (DC) DIN Form A, Class H
7121KBN44V00N0D200P3 110/50-120/60 Brass FKM 7/16 2.5 10 Watt (AC) DIN Form A, Class H
7121KBN44V00N0D300C1 12 VDC Brass FKM 7/16 2.5 22 Watt (DC) DIN Form A, Class H
7121KBN44V00N0D300C2 24 VDC Brass FKM 7/16 2.5 22 Watt (DC) DIN Form A, Class H
7121KBN44V00N0H111C1 12 VDC Brass FKM 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7121KBN44V00N0H111C2 24 VDC Brass FKM 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7121KBN44V00N0H111Q3 220/50-240/60 Brass FKM 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7121KBN44V00N0H222P3 110/50-120/60 Brass FKM 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7121KBN44V00N0H322C1 12 VDC Brass FKM 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7121KBN44V00N0H322C2 24 VDC Brass FKM 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7121KBN44V00N0H322P3 110/50-120/60 Brass FKM 7/16 2.5 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7121KBN44V00N0H322Q3 220/50-240/60 Brass FKM 7/16 2.5 22 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7121KBN44V00N0T100P3 110/50-120/60 Brass FKM 7/16 2.5 10 Watt (AC) 1/4 " Tab Terminal, Class F
72218BN4UE00N0C111P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
72218BN4UE00N0C111Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
72218BN4UE00N0C222Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218BN4UE00N0C322C1 12 VDC Brass E7736 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218BN4UE00N0D100Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) DIN Form A, Class F
72218BN4UE00N0D200P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) DIN Form A, Class H
72218BN4UE00N0D300C1 12 VDC Brass E7736 5/8 4 22 Watt (DC) DIN Form A, Class H
72218BN4UE00N0D300C2 24 VDC Brass E7736 5/8 4 22 Watt (DC) DIN Form A, Class H
72218BN4UE00N0H111P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
72218BN4UE00N0H111Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
72218BN4UE00N0H222P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UE00N0H322C1 12 VDC Brass E7736 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UE00N0H322C2 24 VDC Brass E7736 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UE00N0T100P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/4 " Tab Terminal, Class F
72218BN4UN00N0C111P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
72218BN4UN00N0C111Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
72218BN4UN00N0C222P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218BN4UN00N0C222Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218BN4UN00N0C322C1 12 VDC Brass NBR 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218BN4UN00N0C322C2 24 VDC Brass NBR 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218BN4UN00N0D100P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) DIN Form A, Class F
72218BN4UN00N0D100Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) DIN Form A, Class F
72218BN4UN00N0D200P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) DIN Form A, Class H
72218BN4UN00N0D300C1 12 VDC Brass NBR 5/8 4 22 Watt (DC) DIN Form A, Class H
72218BN4UN00N0D300C2 24 VDC Brass NBR 5/8 4 22 Watt (DC) DIN Form A, Class H
72218BN4UN00N0H111P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
72218BN4UN00N0H111Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
72218BN4UN00N0H222P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UN00N0H222Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UN00N0H322C1 12 VDC Brass NBR 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UN00N0H322C2 24 VDC Brass NBR 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UN00N0T100P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/4 " Tab Terminal, Class F
72218BN4UV00N0C111P3 110/50-120/60 Brass FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
72218BN4UV00N0C322C1 12 VDC Brass FKM 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218BN4UV00N0D100P3 110/50-120/60 Brass FKM 5/8 4 10 Watt (AC) DIN Form A, Class F
72218BN4UV00N0H111P3 110/50-120/60 Brass FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
72218BN4UV00N0H222P3 110/50-120/60 Brass FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UV00N0H322C1 12 VDC Brass FKM 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218BN4UV00N0H322C2 24 VDC Brass FKM 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218RN4UV00N0C111P3 110/50-120/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
72218RN4UV00N0C111Q3 220/50-240/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
72218RN4UV00N0C222P3 110/50-120/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218RN4UV00N0C222Q3 220/50-240/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218RN4UV00N0C322C1 12 VDC 316 Stainless FKM 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218RN4UV00N0C322C2 24 VDC 316 Stainless FKM 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
72218RN4UV00N0D100P3 110/50-120/60 316 Stainless FKM 5/8 4 10 Watt (AC) DIN Form A, Class F
72218RN4UV00N0D100Q3 220/50-240/60 316 Stainless FKM 5/8 4 10 Watt (AC) DIN Form A, Class F
72218RN4UV00N0D200P3 110/50-120/60 316 Stainless FKM 5/8 4 10 Watt (AC) DIN Form A, Class H
72218RN4UV00N0D300C1 12 VDC 316 Stainless FKM 5/8 4 22 Watt (DC) DIN Form A, Class H
72218RN4UV00N0D300C2 24 VDC 316 Stainless FKM 5/8 4 22 Watt (DC) DIN Form A, Class H
72218RN4UV00N0H111P3 110/50-120/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
72218RN4UV00N0H111Q3 220/50-240/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
72218RN4UV00N0H222P3 110/50-120/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218RN4UV00N0H222Q3 220/50-240/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218RN4UV00N0H322C1 12 VDC 316 Stainless FKM 5/8 4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
72218RN4UV00N0T100P3 110/50-120/60 316 Stainless FKM 5/8 4 10 Watt (AC) 1/4 " Tab Terminal, Class F
7221GBN4VN00N0C111P3 110/50-120/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7221GBN4VN00N0C111Q3 220/50-240/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7221GBN4VN00N0C222P3 110/50-120/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7221GBN4VN00N0C222Q3 220/50-240/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7221GBN4VN00N0C322C1 12 VDC Brass NBR 19/32 4.4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7221GBN4VN00N0C322C2 24 VDC Brass NBR 19/32 4.4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7221GBN4VN00N0D100P3 110/50-120/60 Brass NBR 19/32 4.4 10 Watt (AC) DIN Form A, Class F
7221GBN4VN00N0D100Q3 220/50-240/60 Brass NBR 19/32 4.4 10 Watt (AC) DIN Form A, Class F
7221GBN4VN00N0D200P3 110/50-120/60 Brass NBR 19/32 4.4 10 Watt (AC) DIN Form A, Class H
7221GBN4VN00N0D300C1 12 VDC Brass NBR 19/32 4.4 22 Watt (DC) DIN Form A, Class H
7221GBN4VN00N0D300C2 24 VDC Brass NBR 19/32 4.4 22 Watt (DC) DIN Form A, Class H
7221GBN4VN00N0H111P3 110/50-120/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7221GBN4VN00N0H111Q3 220/50-240/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7221GBN4VN00N0H222P3 110/50-120/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7221GBN4VN00N0H222Q3 220/50-240/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7221GBN4VN00N0H322C1 12 VDC Brass NBR 19/32 4.4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7221GBN4VN00N0H322C2 24 VDC Brass NBR 19/32 4.4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7221GBN4VN00N0T100P3 110/50-120/60 Brass NBR 19/32 4.4 10 Watt (AC) 1/4 " Tab Terminal, Class F
7221GBN4VV00N0C111P3 110/50-120/60 Brass FKM 19/32 4.4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7221GBN4VV00N0C322C2 24 VDC Brass FKM 19/32 4.4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7221GBN4VV00N0D300C2 24 VDC Brass FKM 19/32 4.4 22 Watt (DC) DIN Form A, Class H
7221GBN4VV00N0H322C2 24 VDC Brass FKM 19/32 4.4 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73212BN4TN00N0C111C1 12 VDC Brass NBR 1/2 2.8 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73212BN4TN00N0C111C2 24 VDC Brass NBR 1/2 2.8 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73212BN4TN00N0C111P3 110/50-120/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73212BN4TN00N0C111Q3 220/50-240/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73212BN4TN00N0C222C1 12 VDC Brass NBR 1/2 2.8 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73212BN4TN00N0C222C2 24 VDC Brass NBR 1/2 2.8 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73212BN4TN00N0C222P3 110/50-120/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73212BN4TN00N0C222Q3 220/50-240/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73212BN4TN00N0D100C1 12 VDC Brass NBR 1/2 2.8 10 Watt (DC) DIN Form A, Class F
73212BN4TN00N0D100C2 24 VDC Brass NBR 1/2 2.8 10 Watt (DC) DIN Form A, Class F
73212BN4TN00N0D100P3 110/50-120/60 Brass NBR 1/2 2.8 10 Watt (AC) DIN Form A, Class F
73212BN4TN00N0D100Q3 220/50-240/60 Brass NBR 1/2 2.8 10 Watt (AC) DIN Form A, Class F
73212BN4TN00N0D200C1 12 VDC Brass NBR 1/2 2.8 10 Watt (DC) DIN Form A, Class H
73212BN4TN00N0D200P3 110/50-120/60 Brass NBR 1/2 2.8 10 Watt (AC) DIN Form A, Class H
73212BN4TN00N0H111C1 12 VDC Brass NBR 1/2 2.8 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73212BN4TN00N0H111C2 24 VDC Brass NBR 1/2 2.8 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73212BN4TN00N0H111P3 110/50-120/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73212BN4TN00N0H111Q3 220/50-240/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73212BN4TN00N0H222C2 24 VDC Brass NBR 1/2 2.8 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73212BN4TN00N0H222P3 110/50-120/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73212BN4TN00N0H222Q3 220/50-240/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73212BN4TN00N0T100P3 110/50-120/60 Brass NBR 1/2 2.8 10 Watt (AC) 1/4 " Tab Terminal, Class F
73218BN4UE00N0C111C1 12 VDC Brass E7736 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UE00N0C111C2 24 VDC Brass E7736 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UE00N0C111P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UE00N0C111Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UE00N0C222C1 12 VDC Brass E7736 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UE00N0C222C2 24 VDC Brass E7736 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UE00N0C222P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UE00N0C222Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UE00N0D100C1 12 VDC Brass E7736 5/8 4 10 Watt (DC) DIN Form A, Class F
73218BN4UE00N0D100C2 24 VDC Brass E7736 5/8 4 10 Watt (DC) DIN Form A, Class F
73218BN4UE00N0D100P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) DIN Form A, Class F
73218BN4UE00N0D100Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) DIN Form A, Class F
73218BN4UE00N0D200C1 12 VDC Brass E7736 5/8 4 10 Watt (DC) DIN Form A, Class H
73218BN4UE00N0D200P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) DIN Form A, Class H
73218BN4UE00N0H111C1 12 VDC Brass E7736 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UE00N0H111C2 24 VDC Brass E7736 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UE00N0H111P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UE00N0H111Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UE00N0H222C2 24 VDC Brass E7736 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73218BN4UE00N0H222P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73218BN4UE00N0H222Q3 220/50-240/60 Brass E7736 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73218BN4UE00N0T100P3 110/50-120/60 Brass E7736 5/8 4 10 Watt (AC) 1/4 " Tab Terminal, Class F
73218BN4UN00N0C111C1 12 VDC Brass NBR 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UN00N0C111C2 24 VDC Brass NBR 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UN00N0C111P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UN00N0C111Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
73218BN4UN00N0C222C1 12 VDC Brass NBR 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UN00N0C222C2 24 VDC Brass NBR 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UN00N0C222P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UN00N0C222Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
73218BN4UN00N0D100C1 12 VDC Brass NBR 5/8 4 10 Watt (DC) DIN Form A, Class F
73218BN4UN00N0D100C2 24 VDC Brass NBR 5/8 4 10 Watt (DC) DIN Form A, Class F
73218BN4UN00N0D100P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) DIN Form A, Class F
73218BN4UN00N0D100Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) DIN Form A, Class F
73218BN4UN00N0D200C1 12 VDC Brass NBR 5/8 4 10 Watt (DC) DIN Form A, Class H
73218BN4UN00N0D200P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) DIN Form A, Class H
73218BN4UN00N0H111C1 12 VDC Brass NBR 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UN00N0H111C2 24 VDC Brass NBR 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UN00N0H111P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UN00N0H111Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
73218BN4UN00N0H222C2 24 VDC Brass NBR 5/8 4 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73218BN4UN00N0H222P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73218BN4UN00N0H222Q3 220/50-240/60 Brass NBR 5/8 4 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
73218BN4UN00N0T100P3 110/50-120/60 Brass NBR 5/8 4 10 Watt (AC) 1/4 " Tab Terminal, Class F
7321KBN4SN00N0C111C1 12 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7321KBN4SN00N0C111C2 24 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7321KBN4SN00N0C111P3 110/50-120/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7321KBN4SN00N0C111Q3 220/50-240/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7321KBN4SN00N0C222C1 12 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7321KBN4SN00N0C222C2 24 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7321KBN4SN00N0C222P3 110/50-120/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7321KBN4SN00N0C222Q3 220/50-240/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7321KBN4SN00N0C322C2 24 VDC Brass NBR 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7321KBN4SN00N0D100C1 12 VDC Brass NBR 7/16 2.5 10 Watt (DC) DIN Form A, Class F
7321KBN4SN00N0D100C2 24 VDC Brass NBR 7/16 2.5 10 Watt (DC) DIN Form A, Class F
7321KBN4SN00N0D100P3 110/50-120/60 Brass NBR 7/16 2.5 10 Watt (AC) DIN Form A, Class F
7321KBN4SN00N0D100Q3 220/50-240/60 Brass NBR 7/16 2.5 10 Watt (AC) DIN Form A, Class F
7321KBN4SN00N0D200C1 12 VDC Brass NBR 7/16 2.5 10 Watt (DC) DIN Form A, Class H
7321KBN4SN00N0D200P3 110/50-120/60 Brass NBR 7/16 2.5 10 Watt (AC) DIN Form A, Class H
7321KBN4SN00N0D300C1 12 VDC Brass NBR 7/16 2.5 22 Watt (DC) DIN Form A, Class H
7321KBN4SN00N0D300C2 24 VDC Brass NBR 7/16 2.5 22 Watt (DC) DIN Form A, Class H
7321KBN4SN00N0H111C1 12 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7321KBN4SN00N0H111C2 24 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7321KBN4SN00N0H111P3 110/50-120/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7321KBN4SN00N0H111Q3 220/50-240/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
7321KBN4SN00N0H222C2 24 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7321KBN4SN00N0H222Q3 220/50-240/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7321KBN4SN00N0H322C1 12 VDC Brass NBR 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7321KBN4SN00N0H322C2 24 VDC Brass NBR 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
7321KBN4SN00N0T100P3 110/50-120/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/4 " Tab Terminal, Class F
7321KBN4SNW0N0C111C2 24 VDC Brass NBR 7/16 2.5 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
7321KBN4SNW0N0C322C1 12 VDC Brass NBR 7/16 2.5 22 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X
7321KBN4SNW0N0H222P3 110/50-120/60 Brass NBR 7/16 2.5 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9








信德迈科技（北京）有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983
手机：13910962635 （ 微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762


京ICP备08000876号-6
京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
