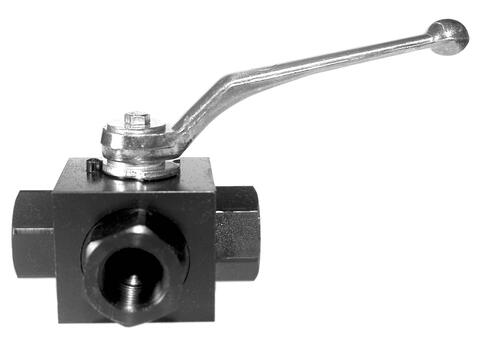

3/3-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system.
3/3-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system. Ball valves with a detent position or fastening bore are also part of the programme.
Markets:
- Agriculture
- Mobile hydraulics
- Air & Gas Compressors
- Offshore and Shipbuilding
- Construction Machinery
- Railway Industry
- Trucks
- Natural Gas
Applications:
- Suitable for general hydraulic applications.
Features/ Benefits of Parker 3/3-way ball valves:
- Excellent sealing and easy operation extend the safety of the entire hydraulic system, of which the 3/3-way ball valves form a part.
- 3/3-way ball valves guarantee the safety of the whole hydraulic unit because of their consistent quality; they are officially approved and certified by Germanischer Lloyd Approval 96 717-89 HH, Lloyds Register of Shipping Approval 00/20020 and DNV Certificate P-11740.
- 3/3-way ball valves are available in steel and stainless steel; there is a broad range of seals e.g. NBR and PEEK. This variety of material helps to meet customer requirements perfectly.
- 3/3-way ball valves have Cr(VI)-free surfaces and are therefore produced in an environment-friendly manner. This surface also offers very high corrosion protection, which of course extends the life-cycle of the product.
| Part |
Shape |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 3 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Connection 3 Tube O.D. (mm) |
Connection Size |
Connection Size 2 |
Connection Size 3 |
Diameter Nominal (DN) |
Material |
Pre-Installed Optional Accessories |
| KH3/2-06L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
6 |
6 |
6 |
na |
na |
na |
4 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-06LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
6 |
6 |
6 |
na |
na |
na |
4 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-06LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
6 |
6 |
6 |
na |
na |
na |
4 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-06LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
6 |
6 |
6 |
na |
na |
na |
4 |
DIN50938-FE//A/T4 |
na |
| KH3/2-06ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
6 |
6 |
6 |
na |
na |
na |
4 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-06ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
6 |
6 |
6 |
na |
na |
na |
4 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-08L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
6 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-08LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
6 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-08LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
6 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-08LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
6 |
DIN50938-FE//A/T4 |
na |
| KH3/2-08S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
4 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-08SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
4 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-08SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
4 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-08SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
4 |
DIN50938-FE//A/T4 |
na |
| KH3/2-08ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
6 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-08ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
6 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-08ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
4 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-08ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
8 |
8 |
8 |
na |
na |
na |
4 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-1 |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1 |
G 1 |
G 1 |
25 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-1/2 |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1/2 |
G 1/2 |
G 1/2 |
12 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-1/2X |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1/2 |
G 1/2 |
G 1/2 |
12 |
DIN50938-FE//A/T6 |
na |
| KH3/2-1/4 |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1/4 |
G 1/4 |
G 1/4 |
6 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-1/4X |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1/4 |
G 1/4 |
G 1/4 |
6 |
DIN50938-FE//A/T6 |
na |
| KH3/2-1/8 |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1/8 |
G 1/8 |
G 1/8 |
4 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-1/8X |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1/8 |
G 1/8 |
G 1/8 |
4 |
DIN50938-FE//A/T6 |
na |
| KH3/2-10L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
8 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-10LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
8 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-10LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
8 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-10LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
8 |
DIN50938-FE//A/T4 |
na |
| KH3/2-10S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
6 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-10SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
6 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-10SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
6 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-10SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
6 |
DIN50938-FE//A/T4 |
na |
| KH3/2-10ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
8 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-10ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
8 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-10ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
6 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-10ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
10 |
10 |
10 |
na |
na |
na |
6 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-12L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
10 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-12LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
10 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-12LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
10 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-12LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
10 |
DIN50938-FE//A/T4 |
na |
| KH3/2-12S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
8 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-12SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
8 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-12SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
8 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-12SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
8 |
DIN50938-FE//A/T4 |
na |
| KH3/2-12ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
10 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-12ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
10 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-12ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
8 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-12ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
12 |
12 |
12 |
na |
na |
na |
8 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-14S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
14 |
14 |
14 |
na |
na |
na |
10 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-14SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
14 |
14 |
14 |
na |
na |
na |
10 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-14SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
14 |
14 |
14 |
na |
na |
na |
10 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-14SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
14 |
14 |
14 |
na |
na |
na |
10 |
DIN50938-FE//A/T4 |
na |
| KH3/2-14ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
14 |
14 |
14 |
na |
na |
na |
10 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-14ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
14 |
14 |
14 |
na |
na |
na |
10 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-15L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
15 |
15 |
15 |
na |
na |
na |
12 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-15LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
15 |
15 |
15 |
na |
na |
na |
12 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-15LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
15 |
15 |
15 |
na |
na |
na |
12 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-15LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
15 |
15 |
15 |
na |
na |
na |
12 |
DIN50938-FE//A/T4 |
na |
| KH3/2-15ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
15 |
15 |
15 |
na |
na |
na |
12 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-15ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
15 |
15 |
15 |
na |
na |
na |
12 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-16S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
16 |
16 |
16 |
na |
na |
na |
12 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-16SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
16 |
16 |
16 |
na |
na |
na |
12 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-16SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
16 |
16 |
16 |
na |
na |
na |
12 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-16SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
16 |
16 |
16 |
na |
na |
na |
12 |
DIN50938-FE//A/T4 |
na |
| KH3/2-16ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
16 |
16 |
16 |
na |
na |
na |
12 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-16ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
16 |
16 |
16 |
na |
na |
na |
12 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-18L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
18 |
18 |
18 |
na |
na |
na |
16 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-18LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
18 |
18 |
18 |
na |
na |
na |
16 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-18LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
18 |
18 |
18 |
na |
na |
na |
16 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-18LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
18 |
18 |
18 |
na |
na |
na |
16 |
DIN50938-FE//A/T4 |
na |
| KH3/2-18ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
18 |
18 |
18 |
na |
na |
na |
16 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-18ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
18 |
18 |
18 |
na |
na |
na |
16 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-1X |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 1 |
G 1 |
G 1 |
25 |
DIN50938-FE//A/T6 |
na |
| KH3/2-20S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
20 |
20 |
20 |
na |
na |
na |
16 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-20SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
20 |
20 |
20 |
na |
na |
na |
16 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-20SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
20 |
20 |
20 |
na |
na |
na |
16 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-20SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
20 |
20 |
20 |
na |
na |
na |
16 |
DIN50938-FE//A/T4 |
na |
| KH3/2-20ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
20 |
20 |
20 |
na |
na |
na |
16 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-20ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
20 |
20 |
20 |
na |
na |
na |
16 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-22L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
22 |
22 |
22 |
na |
na |
na |
20 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-22LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
22 |
22 |
22 |
na |
na |
na |
20 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-22LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
22 |
22 |
22 |
na |
na |
na |
20 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-22LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
22 |
22 |
22 |
na |
na |
na |
20 |
DIN50938-FE//A/T4 |
na |
| KH3/2-22ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
22 |
22 |
22 |
na |
na |
na |
20 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-22ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
22 |
22 |
22 |
na |
na |
na |
20 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-25S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
25 |
25 |
25 |
na |
na |
na |
20 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-25SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
25 |
25 |
25 |
na |
na |
na |
20 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-25SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
25 |
25 |
25 |
na |
na |
na |
20 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-25SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
25 |
25 |
25 |
na |
na |
na |
20 |
DIN50938-FE//A/T4 |
na |
| KH3/2-25ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
25 |
25 |
25 |
na |
na |
na |
20 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-25ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
25 |
25 |
25 |
na |
na |
na |
20 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-28L |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
28 |
28 |
28 |
na |
na |
na |
25 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-28LCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
28 |
28 |
28 |
na |
na |
na |
25 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-28LCFX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
28 |
28 |
28 |
na |
na |
na |
25 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-28LX |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
28 |
28 |
28 |
na |
na |
na |
25 |
DIN50938-FE//A/T4 |
na |
| KH3/2-28ZL |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
28 |
28 |
28 |
na |
na |
na |
25 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-28ZLCF |
3-way compact ball valve |
Light |
24° cone end |
24° cone end |
24° cone end |
28 |
28 |
28 |
na |
na |
na |
25 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
| KH3/2-3/4 |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 3/4 |
G 3/4 |
G 3/4 |
20 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-3/4X |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 3/4 |
G 3/4 |
G 3/4 |
20 |
DIN50938-FE//A/T6 |
na |
| KH3/2-3/8 |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 3/8 |
G 3/8 |
G 3/8 |
10 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-3/8X |
3-way compact BSPP ball valve |
na |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
Female BSPP thread (ISO 1179-1) |
na |
na |
na |
G 3/8 |
G 3/8 |
G 3/8 |
10 |
DIN50938-FE//A/T6 |
na |
| KH3/2-30S |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
30 |
30 |
30 |
na |
na |
na |
25 |
DIN50938-FE//A/T5 |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-30SCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
30 |
30 |
30 |
na |
na |
na |
25 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with nut and EO-PSR cutting ring |
| KH3/2-30SCFX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
30 |
30 |
30 |
na |
na |
na |
25 |
Steel, zinc plated, (CrVI)-free |
na |
| KH3/2-30SX |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
30 |
30 |
30 |
na |
na |
na |
25 |
DIN50938-FE//A/T4 |
na |
| KH3/2-30ZS |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
30 |
30 |
30 |
na |
na |
na |
25 |
DIN50938-FE//A/T6 |
Pre-assembled with EO-2 functional nut |
| KH3/2-30ZSCF |
3-way compact ball valve |
Heavy |
24° cone end |
24° cone end |
24° cone end |
30 |
30 |
30 |
na |
na |
na |
25 |
Steel, zinc plated, (CrVI)-free |
Pre-assembled with EO-2 functional nut |
