Parker 4-Way, 1/4" NPT General Purpose Solenoid Valves
Parker 4-Way 1/4" Solenoid Valves provide operating pressures of 150 PSI and flow factors of 0.09 CV's. They offer a brass body, multiple mounting positions and various coil options for all general purpose flow control applications.
Parker's 4-Way, 1/4" NPT General Purpose Solenoid Valves are used in applications for actuation of double acting cylinders and piloting of larger control valves. Ideally suited for general purpose air, liquids and gases, these valves are available in brass construction with NBR seals.

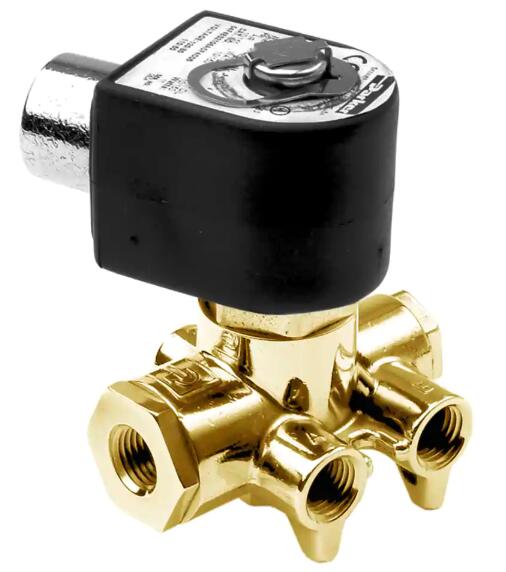

Parker 4-Way, 1/4" NPT General Purpose Solenoid Valves
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner? and Gold Ring? Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Pilot valve actuation of control valves
- Oil and gas including off-shore
- Double acting cylinder control
- Air vises and Air motors
- Damper control
Technical Specifications
| Product Series: |
Gold Ring Series |
| Valve Type: |
4-Way |
| Function: |
4-Way Solenoid |
| Port Size: |
1/4 inch |
| Input Voltage: |
24/60 to 220/50-240/60 (AC) |
| Body Material: |
Brass |
| Seal Material: |
NBR |
| Orifice 1 Size: |
1/4 inch |
| Flow Coefficient 1: |
0.09 Cv |
| Power Consumption: |
11 Watt (AC) W |
| Coil Type: |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X or DIN Form A, Class F |
| Maximum Pressure Differential: |
150 psi (AC) psi |
| Additional Options: |
n/a |
| Number of Ports: |
4 |
| Actuation Type: |
Piston Piloted |
| Media: |
General Purpose for Air, Liquids and Gases |
| Port Type: |
NPT |
| Main Orifice Size: |
16/01/2015 inch |
| Exhaust Orifice Size: |
1.59 inch |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a |
| Minimum Pressure Differential: |
10 psi |
| Minimum Fluid Temperature: |
0 °F |
| Maximum Fluid Temperature: |
180 °F |
| Coil Specifications Met: |
Class F |
Parker 4-Way, 1/4" NPT General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Coil Type |
| 04F48S2106ACF4C01 |
24/60 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
| 04F48S2106ACF4C05 |
110/50-120/60 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
| 04F48S2106ACF4C15 |
220/50-240/60 |
1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X |
| 04F48S2106ACFPH01 |
24/60 |
DIN Form A, Class F |
| 04F48S2106ACFPH05 |
110/50-120/60 |
DIN Form A, Class F |
| 04F48S2106ACFPH15 |
220/50-240/60 |
DIN Form A, Class F |
|
