Parker Solenoid Valves

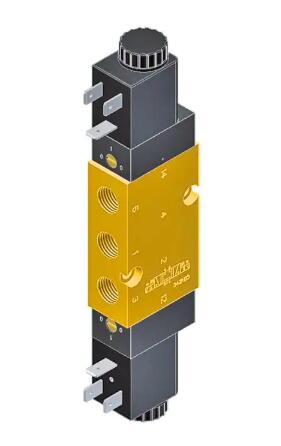

Parker 5-Way Closed Center Position, 1/4" General Purpose Solenoid Valves
Parkers' 5-Way closed center position G 1/4" Solenoid Valves provide operating pressures up to 10 bar and flow factors up to 1250 l/min. They offer multiple body and sealing materials for all general purpose fluid control applications.
Parkers' 5-Way Closed Center Position G 1/4" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .
Markets: - Food & Beverage - Life Sciences - Industrial Equipment - Oil & Gas Features/Benefits: - Wide variety of applications - Ideally suited for air, liquids and gases - Brass or stainless steel body - Large range of Sealing materials for all general purpose fluid control applications - Vast chemical compatibilities
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Parker 5-Way Closed Center Position, 1/4" General Purpose Solenoid Valves
Technical Specifications
| Product Series: |
General Purpose Solenoid Valves |
| Valve Type: |
5-Way |
| Function: |
Closed Center Position |
| Port Size: |
1/4 inch |
| Input Voltage: |
220-230VAC/50-60Hz or 24VDC |
| Body Material: |
Anodized Aluminium |
| Seal Material: |
NBR |
| Orifice 1 Size: |
7 mm |
| Flow Coefficient 1: |
n/a, 1250 L/min |
| Power Consumption: |
3 to 9 W |
| Coil Type: |
DIN, Explosion Proof and Flame Proof, from 22 to 37 mm |
| Maximum Pressure Differential: |
10 bar |
| Minimum Pressure Differential: |
2.5 to 3 bar |
| Number of Ports: |
5 |
| Actuation Type: |
Pilot Operated |
| Media: |
General Purpose for Air, Liquids, Gases and Oil |
| Port Type: |
NAMUR |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a, n/a |
| Minimum Fluid Temperature: |
-10 °C |
| Maximum Fluid Temperature: |
120 °C |
| Coil Specifications Met: |
IP65, IP67 |
Parker 5-Way Closed Center Position, 1/4" General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Coil Type |
| 342N03-496131C2 |
24VDC |
Coil for DIN plug connection, double frequency, 22 mm |
| 342N03-496131P9 |
230VAC/50-60Hz |
Coil for DIN plug connection, double frequency, 22 mm |
| 342N03-496482C2 |
24VDC |
Coil for DIN plug connection, double frequency coil, 22 mm |
| 342N03-496482P9 |
230VAC/50-60Hz |
Coil for DIN plug connection, double frequency coil, 22 mm |
| 342N03-496637C2 |
24VDC |
Explosion proof electrical part "nAc nCc", double frequency, 22 mm |
| 342N03-496637P9 |
230VAC/50-60Hz |
Explosion proof electrical part "nAc nCc", double frequency, 22 mm |
| 342N33-2995-4818653D |
220-230VAC/50Hz |
Coil for DIN plug connection, 32 mm |
| 342N33-2995-481865C2 |
24VDC |
Coil for DIN plug connection, 32 mm |
| 342N33-2995-4958703D |
220-230VAC/50Hz |
Explosion proof electrical part "nAc nCc", 32 mm |
| 342N33-2995-495870C2 |
24VDC |
Explosion proof electrical part "nAc nCc", 32 mm |
| 342N33-495905C2 |
24VDC |
Flame proof encapsulated electrical part "db mb", 37 mm |
| 342N33-495905F4 |
230VAC/50Hz |
Flame proof encapsulated electrical part "db mb", 37 mm |
|
