Parker Solenoid Valves

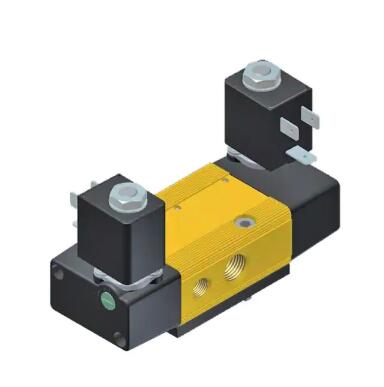

Parker 5-Way Closed Center Position, 1/8" General Purpose Solenoid Valves
Parkers' 5-Way closed center position G 1/8" Solenoid Valves provide operating pressures up to 10 bar and flow factors up to 400 l/min. They offer multiple body and sealing materials for all general purpose fluid control applications.
Parkers' 5-Way Closed Center Position G 1/8" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities
Markets:
- Food & Beverage
- Life Sciences
- Industrial Equipment
- Oil & Gas
Features/Benefits:
- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities
Applications:
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
Technical Specifications
| Product Series: |
General Purpose Solenoid Valves |
| Valve Type: |
5-Way |
| Function: |
Closed Center Position |
| Port Size: |
1/8 inch |
| Input Voltage: |
220-230VAC/50Hz or 24/28VDC |
| Body Material: |
Anodized Aluminium |
| Seal Material: |
NBR, NBR/PUR |
| Orifice 1 Size: |
4 mm |
| Flow Coefficient 1: |
n/a, 400 L/min |
| Power Consumption: |
0.3 to 2.5 W |
| Coil Type: |
DIN, Explosion Proof and Flame Proof, from 22 to 37 mm |
| Maximum Pressure Differential: |
10 bar |
| Minimum Pressure Differential: |
2 bar |
| Number of Ports: |
5 |
| Actuation Type: |
Pilot Operated |
| Media: |
General Purpose for Air, Liquids, Gases and Oil |
| Port Type: |
NAMUR |
| Orifice 2 Size: |
n/a |
| Flow Coefficient 2: |
n/a, n/a |
| Minimum Fluid Temperature: |
-25 °C |
| Maximum Fluid Temperature: |
80 °C |
| Coil Specifications Met: |
IP65, IP67 |
Parker 5-Way Closed Center Position, 1/8" General Purpose Solenoid Valves型号
| Part |
Voltage (V) |
Coil Type |
| 342N11-4826063D |
220-230VAC/50Hz |
Explosion proof encapsulated electrical part "mb", low power, 32 mm |
| 342N11-482606C2 |
24VDC |
Explosion proof encapsulated electrical part "mb", low power, 32 mm |
| 342N11-8993-4889803D |
220-230VAC/50Hz |
Coil for DIN plug connection, low power, 22 mm |
| 342N11-8993-488980C2 |
24VDC |
Coil for DIN plug connection, low power, 22 mm |
| 342N3197-2995-482740C2 |
24VDC |
Coil for DIN plug connection, low power, 32 mm |
| 342N3197-2995-496125C2 |
24VDC |
Explosion proof electrical part "nAc nCc", low power, 32 mm |
| 342N3197-495900C2 |
24VDC |
Flame proof encapsulated electrical part "db mb", low power, 37 mm |
| 342N3197-495900F4 |
230VAC/50Hz |
Flame proof encapsulated electrical part "db mb", low power, 37 mm |
| 342N3197-495910N7 |
28VDC |
Explosion proof intrinsically safe electrical part "ia", "booster", 37 mm |
|
