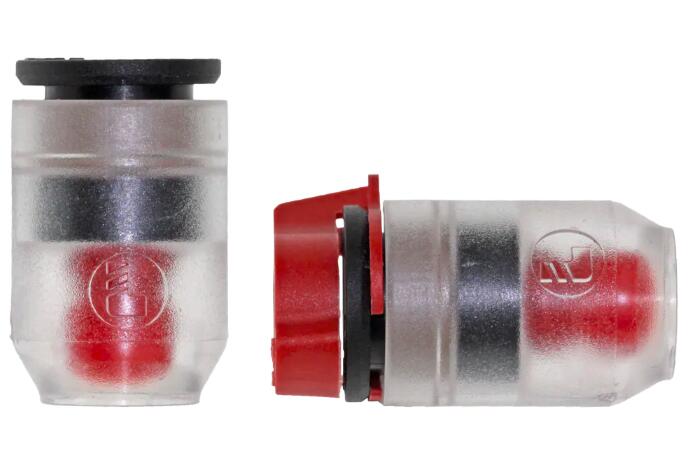

Passive Gas Block Connector
Easy-to-use product, providing quick and efficient sealing of the end of the FTTx* network and thereby long-term protection of the installation.
Easy-to-use product, providing quick and efficient sealing of the end of the FTTx* network and thereby long-term protection of the installation. Those connectors offer more possibilities with fewer references, allow for several microduct/fibre cable combinations and therefore optimise your stock management.
Features/Benefits:
- Stock Optimisation
- More possibilities with fewer references
- 1 connector allows for several microduct/fibre cable combinations
- Easy Handling
- Optic fibre cable visible as it passes through seal, allowing for considerable time-saving
- Visual connection indication
- 100% push-in technology with optic fibre cable sealing
- Ultra compact design
- Longevity & Reliability
- Unique design guaranteeing maximum safety of use
- Gas and watertight up to 1 bar
- UL94 V-2: flame resistance for indoor installations
- Safety clip for preventing risk of accidental disconnection
Markets:
- Telecommunication
- Information Technology
Applications:
- Connector for FTTX Applications
- Air and Water Conveying
- Underground Networks
- Air Blowing
- Water Floating
- Heavy Duty Ducting
Technologies:
- Tube to tube connectors
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Optic fibre connectors
Technical Characteristics:
- Compatible fluids: Air, water
- Materials: polycarbonate, stainless steel, technical polymer, NBR
- Pressure: 0 to 15 bar
- Temperature: -15°C to +45°C
- Storage temperature: -20°C to +80°C
Regulations:
- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- IP68: Seepage resistance to water and dust
- UL94 V-2: Flame resistance
- Patent family FR2924194 (safety clips)
Product Types:
- Equal Tube-to-Tube Connector
- Equal Tube-to-Tube Connector with Red Tamper-Proof Safety Clips
- End Cap
- End Cap with Red Tamper-Proof Safety Clip
Technical Specifications
| Application: |
Fiber Optic, Vacuum |
| Minimum Operating Temperature: |
-15 °C, 5 °F |
| Maximum Operating Pressure: |
1 bar, 15 psi, 0,1 MPa |
| Maximum Operating Temperature: |
113 °F, 45 °C |
| Tube Outside Diameter: |
5 to 14 mm |
| Specifications Met: |
ISO 14743 - IP68 - UL94 V-2 - Patent family FR2924194 (gas block), ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes, IP68: Seepage resistance to water and dust, UL94 V-2: Flame resistance, Patent family FR2924194 (safety clips) |
| Connection Type: |
Push-to-Connect |
| Shape: |
Straight |
| Materials of Construction: |
Technical Polymer, Rubber |
| Gripping Ring Material: |
Stainless steel |
| Quantity per Box: |
50 to 100 |
| Weight: |
0,001 to 0,018 kg |
| Media: |
Air, water |
