Push to Connect Fittings
Pneumatic Soft Start Fittings
These fittings protect your system by preventing sudden shocks.
On start-up, they control the pressure increase in the downstream circuit; this helps prevent the risk of industrial accidents.
These fittings protect your system by preventing sudden shocks.
On start-up, they control the pressure increase in the downstream circuit; this helps prevent the risk of industrial accidents.
Features/Benefits:
- Protection of Equipment & Personnel
- Prevents the risk of damage after any stoppage which requires the system to be vented
- Returns the control valve to its initial position in total safety
- Adjustment of the pressurisation speed
- Protects the adjustment mechanism using a recessed adjustment screw
- Mounted on FRL

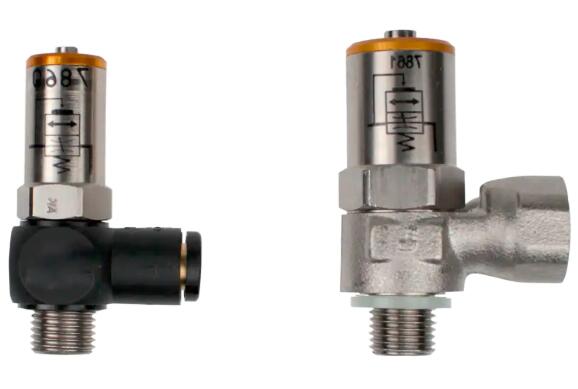

- Models 7860 and 7861: yellow identification washer
- Protection for the whole system
- Simultaneous pressurisation speed of the whole system
- Mounted on Control Valve
- Models 7870 and 7871: black identification washer
- Protection of individual circuits
- Mounted on the control valve, it optimises the pressurisation speed of a specific cylinder
Markets:
- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging
Application:
- Pneumatic Circuits Protection
Technologies:
- Control valve
- Isolating valve
- Pressure regulator
- Pneumatic system
- Pressure regulating valve
Technical Characteristics:
- Fluids: Compressed air
- Materials: nickel-plated brass, technical polymer, NBR, silicone free
- Pressure: 3 to 10 bar
- Temperature: -15°C to +60°C
Regulations:
- DI: 2002/95/CE (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/CE (PED)
Product Types:
- Soft Start Fitting for Isolating Valve, Male BSPP Thread
- Soft Start Fitting for Isolating Valve, Male/Female BSPP Thread
- Soft Start Fitting for Control Valve, Male BSPP Thread
- Soft Start Fitting for Control Valve, Male/Female BSPP Thread
Technical Specifications
| Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various |
| Minimum Operating Temperature: |
-15 °C, 5 °F |
| Maximum Operating Pressure: |
1 MPa, 10 bar, 145 psi |
| Maximum Operating Temperature: |
140 °F, 60 °C |
| Tube Outside Diameter: |
8 to 12 mm |
| Shape: |
90° |
| Specifications Met: |
DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/CE (RoHS), RG: 1907/2006 (REACH), DI: 97/23/CE (PED) |
| Connection Type: |
Push-to-Connect/Thread |
| Materials of Construction: |
Technical Polymer, Nickel Plated Brass, Rubber |
| Quantity per Box: |
1 |
| Weight: |
0,064 to 0,152 kg |
| Media: |
Compressed air |
Pneumatic Soft Start Fittings 型号
| Part |
Shape |
Body Material |
Gripping Ring |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (mm) |
| 7860 08 13 |

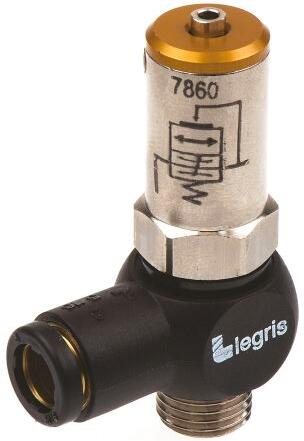

Soft start for isolating valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G1/4 |
8 |
| 7860 10 13 |
Soft start for isolating valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G1/4 |
10 |
| 7860 10 17 |
Soft start for isolating valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G3/8 |
10 |
| 7860 12 17 |
Soft start for isolating valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G3/8 |
12 |
| 7860 12 21 |
Soft start for isolating valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G1/2 |
12 |
| 7861 13 13 |

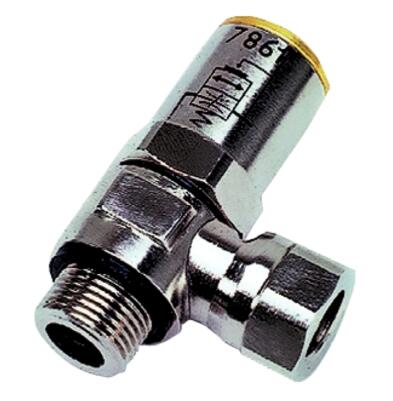

Soft start for isolating valve female |
NICKEL PLATED BRASS |
na |
G1/4 |
na |
| 7861 17 17 |
Soft start for isolating valve female |
NICKEL PLATED BRASS |
na |
G3/8 |
na |
| 7870 08 13 |
Soft start for control valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G1/4 |
8 |
| 7870 10 13 |
Soft start for control valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G1/4 |
10 |
| 7870 10 17 |
Soft start for control valve |
TECHNICAL POLYMER |
STAINLESS STEEL |
G3/8 |
10 |
| 7871 13 13 |

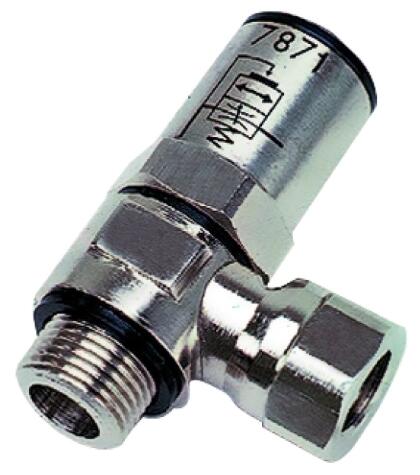

Soft start for control valve female |
NICKEL PLATED BRASS |
na |
G1/4 |
na |
| 7871 17 17 |
Soft start for control valve female |
NICKEL PLATED BRASS |
na |
G3/8 |
na |
|
