Parker Ball Valves

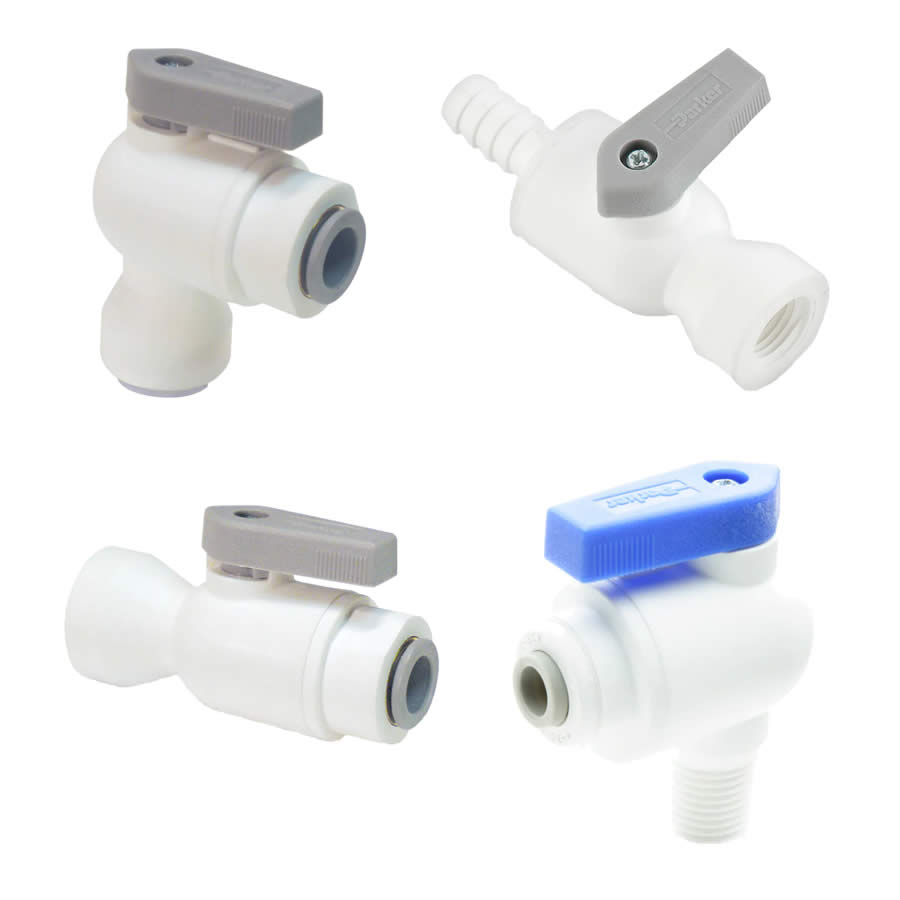

Polypropylene Ball Valves
Parker's polypropylene ball valves corrosion resistant design make them ideal for water filtration units, coffee and beverage machines and various other fluid applications.
Parker's polypropylene ball valves save cost with built-in LIQUIfit, TrueSeal and Par-Barb connections eliminating the need for a secondary fitting. The compact design allows for easy assembly and access where space is at a premium. Polypropylene ball valves meets all FDA and NSF-51 requirements for food contact.
Polypropylene Ball Valves
Markets:
- Water Filtration
- Beverage Dispensing
- Bottling
- Semi-conductor
- Chemical
Features/Benefits:
- Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting
- Low-profile design allows for easy assembly and access where space is limited
- Bi-directional flow foe maximum productivity
- Meets FDA and NSF-51 requirements for food contact
- Wide chemical acceptance range
- EPDM seals
- Push-to-Connect and barbed connections
Applications:
- Water
- Beverages
- Food
- Pneumatic circuits
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Minimum Operating Temperature: |
0 °F, -18 °C |
| Maximum Operating Temperature: |
225 °F, 107 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Connection Type: |
NPTF |
| Specifications Met: |
FDA, NSF-51 |
| Body Material: |
Polypropylene |
| Ball Material: |
Polysulfone |
| Seat Material: |
EPDM |
Polypropylene Ball Valves 型号
| Part |
Shape |
Style |
Connection Type |
Connection 1 Tube O.D. (inch) |
Connection 1 Hose I.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Tube Stem O.D. (inch) |
Connection 2 Hose I.D. (inch) |
Connection 2 Style |
Connection 3 Thread Size (inch) |
Connection 3 Style |
| LFPP4VAS6 |
Angle Stop |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
3/8 |
Female Pipe |
| LFPP4VAS8 |
Angle Stop |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
1/2 |
Female Pipe |
| LFPP4VEU4 |
90° Elbow |
Tube to Tube |
Grab Ring |
1/4 |
na |
Push-to-Connect |
na |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
| LFPP4VEU6 |
90° Elbow |
Tube to Tube |
Grab Ring |
1/4 |
na |
Push-to-Connect |
na |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
| LFPP4VFC2 |
Connector |
Tube to Female Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP4VFC4 |
Connector |
Tube to Female Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP4VFC6 |
Connector |
Tube to Female Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP4VFE2 |
90° Elbow |
Tube to Female Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP4VFE4 |
90° Elbow |
Tube to Female Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP4VFE6 |
90° Elbow |
Tube to Female Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP4VMC4 |
Connector |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP4VMC6 |
Connector |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP4VMC8 |
Connector |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP4VME2 |
90° Elbow |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP4VME4 |
90° Elbow |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP4VME6 |
90° Elbow |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP4VME8 |
90° Elbow |
Tube to Pipe |
Grab Ring |
1/4 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP4VUC4 |
Union |
Tube to Tube |
Grab Ring |
1/4 |
na |
Push-to-Connect |
na |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
| LFPP4VUC6 |
Union |
Tube to Tube |
Grab Ring |
1/4 |
na |
Push-to-Connect |
na |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
| LFPP4VUCPB4 |
Connector |
Tube to Barb |
Grab Ring |
1/4 |
na |
Push-to-Connect |
na |
na |
na |
1/4 |
Barb |
na |
na |
| LFPP6VAS6 |
Angle Stop |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
3/8 |
Female Pipe |
| LFPP6VAS8 |
Angle Stop |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
1/2 |
Female Pipe |
| LFPP6VEU4 |
90° Elbow |
Tube to Tube |
Grab Ring |
3/8 |
na |
Push-to-Connect |
na |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
| LFPP6VEU6 |
90° Elbow |
Tube to Tube |
Grab Ring |
3/8 |
na |
Push-to-Connect |
na |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
| LFPP6VFC2 |
Connector |
Tube to Female Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP6VFC4 |
Connector |
Tube to Female Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP6VFC6 |
Connector |
Tube to Female Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP6VFE2 |
90° Elbow |
Tube to Female Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP6VFE4 |
90° Elbow |
Tube to Female Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP6VFE6 |
90° Elbow |
Tube to Female Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| LFPP6VMC2 |
Connector |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VMC4 |
Connector |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VMC6 |
Connector |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VMC8 |
Connector |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VME2 |
90° Elbow |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VME4 |
90° Elbow |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VME6 |
90° Elbow |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VME8 |
90° Elbow |
Tube to Pipe |
Grab Ring |
3/8 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| LFPP6VUC6 |
Union |
Tube to Tube |
Grab Ring |
3/8 |
na |
Push-to-Connect |
3/8 |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
| LFPP6VUCPB6 |
Connector |
Tube to Barb |
Grab Ring |
3/8 |
na |
Push-to-Connect |
na |
na |
na |
3/8 |
Barb |
na |
na |
| PBPP4FVFE4 |
90° Elbow |
Barb to Female Pipe |
na |
na |
1/4 |
Barb |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| PBPP4VFC4 |
Connector |
Barb to Female Pipe |
na |
na |
1/4 |
Barb |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| PBPP4VMC4 |
Connector |
Barb to Male Pipe |
na |
na |
1/4 |
Barb |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| PBPP4VUC4 |
Union |
Barb to Barb |
na |
na |
1/4 |
Barb |
na |
na |
na |
1/4 |
Barb |
na |
na |
| PBPP6VFC6 |
Connector |
Barb to Female Pipe |
na |
na |
3/8 |
Barb |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PBPP6VFE4 |
90° Elbow |
Barb to Female Pipe |
na |
na |
3/8 |
Barb |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| PBPP6VFE6 |
90° Elbow |
Barb to Female Pipe |
na |
na |
3/8 |
Barb |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PBPP6VME6 |
90° Elbow |
Barb to Male Pipe |
na |
na |
3/8 |
Barb |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PBPP6VUC6 |
Union |
Barb to Barb |
na |
na |
3/8 |
Barb |
na |
na |
na |
3/8 |
Barb |
na |
na |
| PBPP8VUC8 |
Union |
Barb to Barb |
na |
na |
1/2 |
Barb |
na |
na |
na |
1/2 |
Barb |
na |
na |
| PP4VEU4-MG |
90° Elbow |
Tube to Tube |
Collet |
1/4 |
na |
Push-to-Connect |
na |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
| PP4VEU6-MG |
90° Elbow |
Tube to Tube |
Collet |
1/4 |
na |
Push-to-Connect |
na |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
| PP4VFC2-MG |
Connector |
Tube to Female Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP4VFC4-MG |
Connector |
Tube to Female Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| PP4VFC6-MG |
Connector |
Tube to Female Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP4VFE2-MG |
90° Elbow |
Tube to Female Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP4VFE4-MG |
90° Elbow |
Tube to Female Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| PP4VFE6-MG |
90° Elbow |
Tube to Female Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP4VMC2-MG |
Connector |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VMC4-MG |
Connector |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VMC6-MG |
Connector |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VMC8-MG |
Connector |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VME2-MG |
90° Elbow |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VME4-MG |
90° Elbow |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VME6-MG |
90° Elbow |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VME8-MG |
90° Elbow |
Tube to Pipe |
Collet |
1/4 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| PP4VTEU6-MG |
90° Elbow |
Tube to standpipe |
Collet |
1/4 |
na |
Push-to-Connect |
na |
na |
3/8 |
na |
Tube Stem |
na |
na |
| PP4VUC4-MG |
Union |
Tube to Tube |
Collet |
1/4 |
na |
Push-to-Connect |
na |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
| PP4VUC6-MG |
Union |
Tube to Tube |
Collet |
1/4 |
na |
Push-to-Connect |
na |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
| PP6VEU4-MG |
90° Elbow |
Tube to Tube |
Collet |
3/8 |
na |
Push-to-Connect |
na |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
| PP6VEU6-MG |
90° Elbow |
Tube to Tube |
Collet |
3/8 |
na |
Push-to-Connect |
na |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
| PP6VFC2-MG |
Connector |
Tube to Female Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP6VFC4-MG |
Connector |
Tube to Female Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| PP6VFC6-MG |
Connector |
Tube to Female Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP6VFE2-MG |
90° Elbow |
Tube to Female Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP6VFE4-MG |
90° Elbow |
Tube to Female Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Female Pipe |
na |
na |
| PP6VFE6-MG |
90° Elbow |
Tube to Female Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Female Pipe |
na |
na |
| PP6VMC4-MG |
Connector |
Tube to Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| PP6VMC6-MG |
Connector |
Tube to Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PP6VMC8-MG |
Connector |
Tube to Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| PP6VME2-MG |
90° Elbow |
Tube to Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PP6VME4-MG |
90° Elbow |
Tube to Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/4 |
na |
na |
na |
Male Pipe |
na |
na |
| PP6VME6-MG |
90° Elbow |
Tube to Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
3/8 |
na |
na |
na |
Male Pipe |
na |
na |
| PP6VME8-MG |
90° Elbow |
Tube to Pipe |
Collet |
3/8 |
na |
Push-to-Connect |
1/2 |
na |
na |
na |
Male Pipe |
na |
na |
| PP6VTEU6-MG |
90° Elbow |
Tube to standpipe |
Collet |
3/8 |
na |
Push-to-Connect |
na |
na |
3/8 |
na |
Tube Stem |
na |
na |
| PP6VUC4-MG |
Union |
Tube to Tube |
Collet |
3/8 |
na |
Push-to-Connect |
na |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
| PP6VUC6-MG |
Union |
Tube to Tube |
Collet |
3/8 |
na |
Push-to-Connect |
na |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
|
