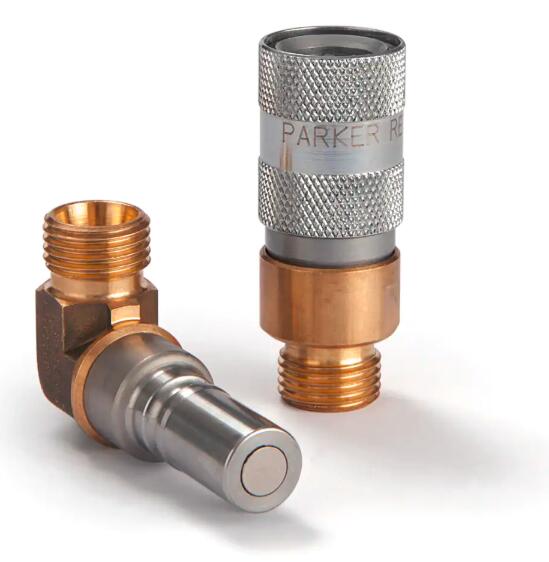

Push-to-Connect Dry Break Quick Coupling, Series NSP
Dry break quick coupling system with nominal diameter 6/9/12 for thermal management applications up to 60 bar. Available made of brass/stainless steel.
Parker's Push-to-Connect Quick Connect Coupling Series NSP are dry break couplings with flat face valves. The compact design makes it suitable for reduced spaces. The series NSP is a coupling system with single-hand operation. Series NSP can be used either with water and heat transfer oils.
Push-to-Connect Dry Break Quick Coupling, Series NSP
Markets:
- Molding machinery
- Electronic cooling
- Power generation and conversion
Features/Benefits:
- Low pressure drop
- No spillage during connection / disconnection
- Specific design for cooling applications
- Push-to-Connect function
- Excellent resistance to vibrations and mechanical stresses
Applications:
- Cooling of electronic components
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
6 nom |
| Application: |
Thermal Management |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
French Profile |
| Maximum Operating Pressure: |
870.24 psi, 60 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
Non-Spill / FlatFace |
| Product Type: |
Coupling |
| Valve Included: |
Yes |
| Version: |
Flat-sealing |
| Connection Thread Size: |
1/4 inch, 16 mm |
| Length: |
55,8 up to 79,4 mm |
| Hex Size: |
21 mm |
| Outside Diameter: |
22 mm |
| Materials of Construction: |
Brass/Stainless Steel |
| Seal Material: |
FKM |
| Hose Inside Diameter: |
6 |
Push-to-Connect Dry Break Quick Coupling, Series NSP 型号
|
