Parker Quick Couplings

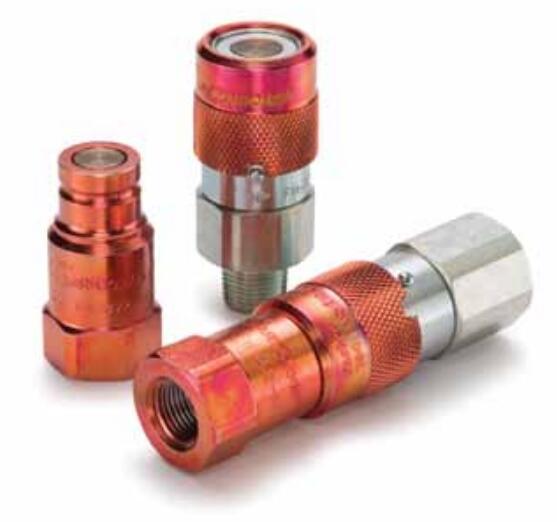

HTMA (ISO 16028) High Pressure Non-Spill, Flush Face Quick Coupling with Sleeve Lock (hydraulic) 10,000 psi - FH Series Couplers
Parker's high pressure non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.
H Series Couplers (hydraulic) 10,000 psi, meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA) standards, and connect only with FH Series Nipples. Parker's FH Series are high pressure non-spill quick couplings that will not connect with lower pressure quick couplings. The red color makes these couplings easy to identify as high pressure (10,000 psi). The coupler sleeve lock feature guards against accidental disconnection. Couplers and nipples are available in 3/8" size only.
HTMA (ISO 16028) High Pressure Non-Spill, Flush Face Quick Coupling with Sleeve Lock (hydraulic) 10,000 psi - FH Series Couplers
Technical Characteristics:
- Size: 3/8"
- Material: Steel
- Port Ends: Female NPTF, Female BSPP
- Seal Options: Nitrile, EPR, Fluorocarbon
Markets:
- Rescue
- Industrial
- Construction
- Utility
Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- Meets HTMA (ISO 16028) standards but will NOT connect with lower pressure flush face couplings
- Red color finish makes it easy to visually identify as a high pressure connection
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Sleeve lock guards against accidental disconnection
Applications:
- Hydraulic crimpers, cutters, benders, clamps, wedges
- Rescue equipment
- High pressure test equipment
- High pressure hydraulic equipment
Technical Specifications
| Maximum Operating Pressure: |
10000 psi, 689 bar |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Body Size: |
3/8 inch |
| Flow Rate: |
6 Gal/min |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Seal Material: |
Nitrile |
| Valve Type: |
Non-spill |
| Application: |
Hydraulic, high pressure |
| Plating Type: |
Zinc with clear trivalent chromate, red finish on sleeve |
| Specifications Met: |
HTMA |
| Sleeve Type: |
Push to connect |
| Lock Type: |
Locking balls |
| Locking Sleeve Included: |
Yes |
HTMA (ISO 16028) High Pressure Non-Spill, Flush Face Quick Coupling with Sleeve Lock (hydraulic) 10,000 psi - FH Series Couplers 型号
| Part |
Thread Style |
Connection Thread Size (inch) |
Connection Type |
| FH-371-6FB |
Female |
G 3/8 |
BSPP |
| FH-371-6FP |
Female |
3/8 - 18 |
NPTF |
| FH-371-6MP |
Male |
3/8 - 18 |
NPTF |
|
