Parker Quick Couplings

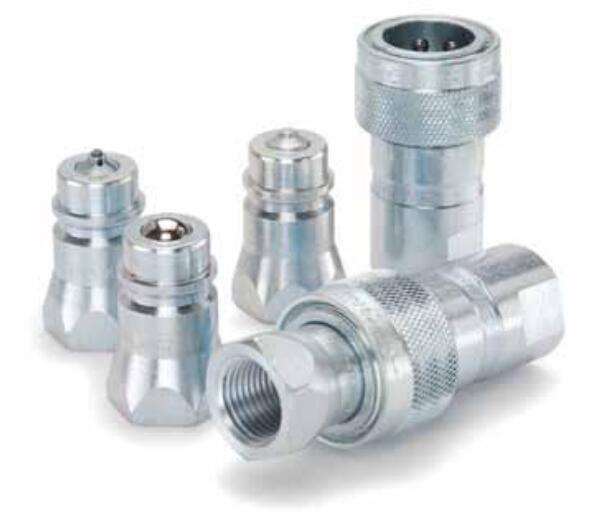

Agricultural Male Tip (1/4", 3/8", 3/4", 1") Ball / Poppet, 3000 psi - 4010 Series Nipples
4010 Series Nipples connect with Pioneer agricultural couplers, sizes 1/4", 3/8", 3/4" and 1".
4010 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers (1/4",3/8", 3/4", 1" sizes) and 4200 Series (3/8" size) couplers. Nipples are available with a poppet or ball valve.
Agricultural Male Tip (1/4", 3/8", 3/4", 1") Ball / Poppet, 3000 psi - 4010 Series Nipples
Technical Characteristics:
- Sizes: 1/4", 3/8", 3/4", 1"
- Material: Steel
- Port Ends: Female NPTF, Female ORB, Male ORB (1/4" size), Female BSPP
- Valve Options: Ball or Poppet
- Seal Options on poppet valves: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
- Agriculture
- Industrial
- Construction
Features/Benefits:
- Valve option styles are ball or poppet
- Hardened locking ball groove resists wear for increased durability and protection from Brinelling
- Shielded valve and positive valve stop prevents flow checking for smooth performance
Applications:
- Hydraulic Loaders
- Add-on hydraulic circuits
- Hydraulic tools
Technical Specifications
| Body Size: |
1/4, 3/8, 3/4, 1 inch, 1/4 | 3/8 | 3/4 | 1 inch |
| Maximum Operating Pressure: |
3000 psi, 207 bar |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Seal Material: |
Nitrile, Nitrile | na |
| Vacuum Pressure Rating: |
No |
| Valve Type: |
Poppet, Ball |
| Flow Rate: |
3 | 6 | 28 | 50 Gal/min |
| Media: |
Hydraulic |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 °F |
| Thread Size: |
Female |
| Connection Type: |
NPTF | ORB |
| Plating Type: |
Zinc with clear trivalent chromate |
| Application: |
Hydraulic | general purpose |
