Parker Quick Couplings

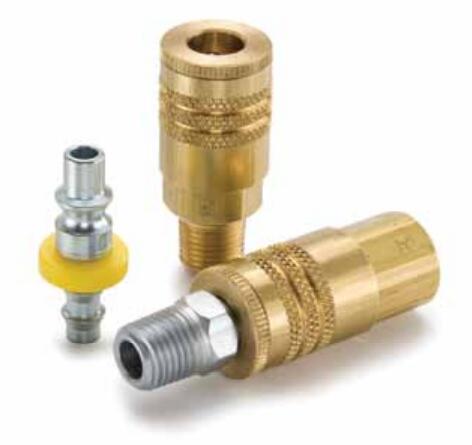

Air Hose and Tool Quick Couplings (pneumatic, air) ARO 210 Interchange - 50 Series Nipples
Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
50 Series Nipples (pneumatic, air) up to 300 psi connect with both 50 Series (manual sleeve) and HA Series (push to connect) Couplers and are interchangeable with the ARO 210 series. Parker's steel pneumatic nipples are hardened for increased strength and endurance. 50 Series and HA Series are single shut off quick couplings. Nipples are available in 1/4" size with a pressure rating of 300 psi.
Air Hose and Tool Quick Couplings (pneumatic, air) ARO 210 Interchange - 50 Series Nipples
Technical Characteristics:
- Size: 1/4”
- Material: Steel
- Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
- Furniture building
- Textile industry
- Industrial
- Construction
- Factory automation
Features/Benefits:
- Interchangeable with ARO 210 nipples
- Steel nipples are case hardened for durability
- Non-valved nipples mate with valved couplers for a single shut-off connection
Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns
- Paint applicators
Technical Specifications
| Maximum Operating Pressure: |
300 psi, 20 bar |
| Valve Type: |
No Valve, Unvalved |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
ARO |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Body Size: |
1/4 inch |
| Media: |
Compressed air |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 °F |
| Application: |
Pneumatic |
| Specifications Met: |
Interchangeable with ARO?s 210 series |
| Plating Type: |
Zinc with clear trivalent chromate |
Air Hose and Tool Quick Couplings (pneumatic, air) ARO 210 Interchange - 50 Series Nipples 型号
| Part |
Thread Style |
Connection Thread Size (inch) |
Connection Type |
Hose I.D. (inch) |
| A2C |
Male |
1/4 - 18 |
NPTF |
na |
| A3C |
Female |
1/4 - 18 |
NPTF |
na |
| A8C |
na |
na |
Hose barb |
1/4 |
| A8CP |
na |
na |
Push-Lok hose barb |
1/4 |
|
