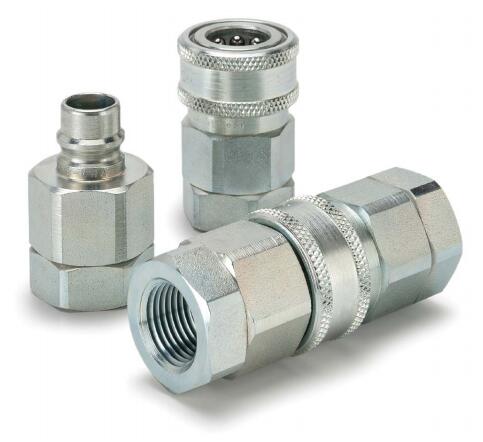

High Pressure, High Flow Air Quick Couplings (pneumatic, air) up to 6,500 psi - Snap-tite IH Series Couplers
Parker's high pressure, high flow pneumatic, air quick couplers and nipples are suitable for applications where high volume air lines require fast and easy connection and disconnection.
Snap-tite IH Series Couplers (pneumatic, air) up to 6,500 psi connect with unvalved Snap-tite H Series Nipples to provide a single shut off connection.
Parker's Snap-tite IH Couplers have a cylindrical valve designed specifically for pneumatic applications. The valve provides 360 degree contact when connected with an unvalved / plain Snap-tite H Series Nipple. Couplers are available in a range of sizes and pressures up to 6,500 psi.
High Pressure, High Flow Air Quick Couplings (pneumatic, air) up to 6,500 psi - Snap-tite IH Series Couplers
Technical Characteristics:
- Sizes: 1/4” – 3/4”
- Materials: Steel
- Port Ends: Female SAE, Female NPTF, Male SAE 37 degree Flare, Male NPT
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
Markets:
- Industrial
- Construction
Features/Benefits:
- High flow valves with minimal pressure drop for efficient performance
- Connects with Snap-tite H Series plain / unvalved nipples
- Optional sleeve-lock adds protection against accidental disconnection
Applications:
- Pneumatic tools with reciprocating, pulsating or rotary motion
- Compressed air lines
- High pressure, large volume air hand tools
Technical Specifications
| Body Size: |
1/4, 3/8, 1/2, 3/4 inch |
| Maximum Operating Pressure: |
Up to 6500 psi, Up to 448 bar |
| Media: |
High pressure pneumatic |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Materials of Construction: |
Steel |
| Application: |
Pneumatic, high flow, high pressure, Pneumatic |
| Valve Type: |
High Flow Air, Tubular |
| Brand: |
Parker |
| Vacuum Pressure Rating: |
No |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
Snap-tite IH |
| Seal Material: |
Nitrile |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Plating Type: |
Zinc with clear trivalent chromate |
| Lock Type: |
Locking balls |
High Pressure, High Flow Air Quick Couplings (pneumatic, air) up to 6,500 psi - Snap-tite IH Series Couplers 型号
| Part |
Body Size (inch) |
Sleeve Type |
Thread Style |
Connection Thread Size (inch) |
Connection Type |
| VIHC12-12F |
3/4 |
Manual |
Female |
3/4 - 14 |
NPTF |
| VIHC4-4F |
1/4 |
Manual |
Female |
1/4 - 18 |
NPTF |
| VIHC4-4FSL |
1/4 |
Manual with sleeve lock |
Female |
1/4 - 18 |
NPTF |
| VIHC4-4M |
1/4 |
Manual |
Male |
1/4 - 18 |
NPT |
| VIHC4-4MSL |
1/4 |
Manual with sleeve lock |
Male |
1/4 - 18 |
NPT |
| VIHC6-6F |
3/8 |
Manual |
Female |
3/8 - 18 |
NPTF |
| VIHC6-6FSL |
3/8 |
Manual with sleeve lock |
Female |
3/8 - 18 |
NPTF |
| VIHC6-6M |
3/8 |
Manual |
Male |
3/8 - 18 |
NPT |
| VIHC6-6MSL |
3/8 |
Manual with sleeve lock |
Male |
3/8 - 18 |
NPT |
| VIHC8-8F |
1/2 |
Manual |
Female |
1/2 - 14 |
NPTF |
|
