Parker Quick Couplings

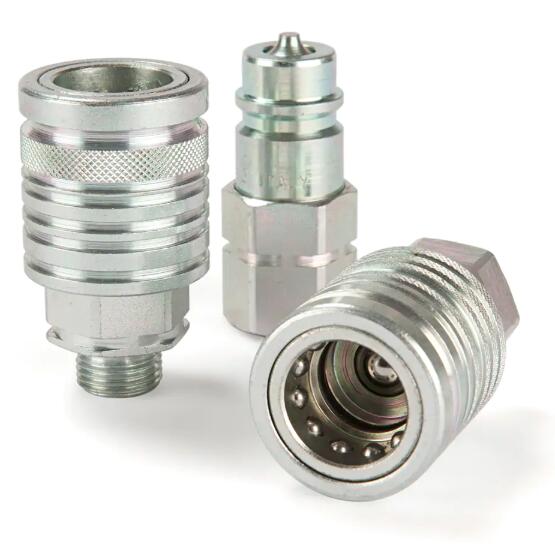

Hydraulic Quick Coupling with ISO A Profile, Series 2000
Quick coupling with body size 3/8" or 1/2" for medium pressure applications up to 300 bar. Connectable with plugs according to ISO 7241-1 Series A Profile. Available made of steel.
"Parker's Hydraulic Quick Coupling Series 2000 meets the requirements of ISO 7241-1 Series A. This series can be connected with other products complying with the same standard. It stands out for its modular construction with a broad choice of end configurations (variety of threads - BSPP and metric). Series 2000 is available with two valve options - Poppet valve or ball valve. This coupling system can be used in Push-Pull connection- / disconnection.
Hydraulic Quick Coupling with ISO A Profile, Series 2000
Markets:
- Agriculture
- Construction
- Material Handling
Advantages:
- According to ISO 7241-1 Series A
- NBR seals and back-up ring in PTFE to withstand flow surges at high flow rates
- Double acting sleeve (Push-Pull)
- Ball or three-part poppet style valving with a molded shaped seal to prevent seal washout at high flow rates
- Chrome 6 free plating
- 10 locking balls to reduce brinneling effect
Applications:
- Agriculture and mobile equipment
- Construction equipment
- Material handling machines"
Technical Specifications
| Minimum Operating Temperature: |
-25 °C |
| Length: |
47 up to 85 mm |
| Application: |
Medium Pressure |
| Body Size: |
3/8, 1/2 inch |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Specifications Met: |
ISO 7241-1 Series A |
| Interchange Type: |
ISO 7241-1 Series A |
| Maximum Operating Pressure: |
3040, 3620, 4560 psi, 210, 250, 315 bar |
| Maximum Operating Temperature: |
230 °F, 110 °C |
| Media: |
Hydraulic Fluids |
| Valve Type: |
Poppet |
| Hex Size: |
22, 27, 36 mm |
| Outside Diameter: |
17,3 up to 38 mm |
| Materials of Construction: |
Steel |
| Seal Material: |
NBR |
| Weight: |
75 up to 380 g |
Hydraulic Quick Coupling with ISO A Profile, Series 2000 型号
| Part |
Body Size |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
| 4014G0Z4-C |
1/2 |
Plug |
Ball Valve |
Female thread ? DIN 3852 Form Y |
1/2 NPT |
na |
| 4014G4X4-C |
1/2 |
Plug |
Ball Valve |
Female thread ? DIN 3852 Form Y |
1/2 |
na |
| 4054G0Z4-C |
1/2 |
Coupling |
Ball Valve |
Female thread ? DIN 3852 Form Y |
1/2 NPT |
na |
| 4054G4X4-C |
1/2 |
Coupling |
Ball Valve |
Female thread ? DIN 3852 Form Y |
1/2 |
na |
| 4V13D6X2-C |
3/8 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 |
na |
14x1,5 |
| 4V13D6X3-C |
3/8 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 |
na |
16x1,5 |
| 4V13D7X3-C |
3/8 |
Plug |
Heavy |
Male thread 24° cone ? DIN 2353 |
na |
18x1,5 |
| 4V13E6X3-C |
3/8 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
16x1,5 |
| 4V13F4B3-C |
3/8 |
Plug |
na |
Male thread BSPP ? DIN 3852 Form B |
3/8 |
na |
| 4V13G4X3-C |
3/8 |
Plug |
na |
Female thread ? DIN 3852 Form Y |
3/8 |
na |
| 4V14D6X2-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 |
na |
14x1,5 |
| 4V14D6X3-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 |
na |
16x1,5 |
| 4V14D6X4-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 |
na |
18x1,5 |
| 4V14D6X5-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 |
na |
22x1,5 |
| 4V14D6X6-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 |
na |
26x1,5 |
| 4V14D7X3-C |
1/2 |
Plug |
Heavy |
Male thread 24° cone ? DIN 2353 |
na |
18x1,5 |
| 4V14D7X6-C |
1/2 |
Plug |
Heavy |
Male thread 24° cone ? DIN 2353 |
na |
24x1,5 |
| 4V14E6X2-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
14x1,5 |
| 4V14E6X3-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
16x1,5 |
| 4V14E6X4-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
18x1,5 |
| 4V14E6X5-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
22x1,5 |
| 4V14E6X6-C |
1/2 |
Plug |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
26x1,5 |
| 4V14E7X3-C |
1/2 |
Plug |
Heavy |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
18x1,5 |
| 4V14E7X4-C |
1/2 |
Plug |
Heavy |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
20x1,5 |
| 4V14E7X6-C |
1/2 |
Plug |
Heavy |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
24x1,5 |
| 4V14F4B3-C |
1/2 |
Plug |
na |
Male thread BSPP ? DIN 3852 Form B |
3/8 |
na |
| 4V14F4B4-C |
1/2 |
Plug |
na |
Male thread BSPP ? DIN 3852 Form B |
1/2 |
na |
| 4V14G4X3-C |
1/2 |
Plug |
na |
Female thread ? DIN 3852 Form Y |
3/8 |
na |
| 4V14G4X4-C |
1/2 |
Plug |
na |
Female thread ? DIN 3852 Form Y |
1/2 |
na |
| 4V14G4X6-C |
1/2 |
Plug |
na |
Female thread ? DIN 3852 Form Y |
3/4 |
na |
| 4V14G8X5-C |
1/2 |
Plug |
na |
Female thread ? DIN 3852 Form Y |
na |
18x1,5 |
| 4V14G8X6-C |
1/2 |
Plug |
na |
Female thread ? DIN 3852 Form Y |
na |
22x1,5 |
| 4V53D6X2-C |
3/8 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 |
na |
14x1,5 |
| 4V53D6X3-C |
3/8 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 |
na |
16x1,5 |
| 4V53D7X3-C |
3/8 |
Coupling |
Heavy |
Male thread 24° cone ? DIN 2353 |
na |
18x1,5 |
| 4V53E6X3-C |
3/8 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
16x1,5 |
| 4V53F4B3-C |
3/8 |
Coupling |
na |
Male thread BSPP ? DIN 3852 Form B |
3/8 |
na |
| 4V53G4X3-C |
3/8 |
Coupling |
na |
Female thread ? DIN 3852 Form Y |
3/8 |
na |
| 4V54D6X2-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 |
na |
14x1,5 |
| 4V54D6X3-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 |
na |
16x1,5 |
| 4V54D6X4-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 |
na |
18x1,5 |
| 4V54D6X5-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 |
na |
22x1,5 |
| 4V54D6X6-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 |
na |
26x1,5 |
| 4V54D7X3-C |
1/2 |
Coupling |
Heavy |
Male thread 24° cone ? DIN 2353 |
na |
18x1,5 |
| 4V54D7X6-C |
1/2 |
Coupling |
Heavy |
Male thread 24° cone ? DIN 2353 |
na |
24x1,5 |
| 4V54E6X2-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
14x1,5 |
| 4V54E6X3-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
16x1,5 |
| 4V54E6X4-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
18x1,5 |
| 4V54E6X5-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
22x1,5 |
| 4V54E6X6-C |
1/2 |
Coupling |
Light |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
26x1,5 |
| 4V54E7X3-C |
1/2 |
Coupling |
Heavy |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
18x1,5 |
| 4V54E7X4-C |
1/2 |
Coupling |
Heavy |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
20x1,5 |
| 4V54E7X6-C |
1/2 |
Coupling |
Heavy |
Male thread 24° cone ? DIN 2353 Bulkhead |
na |
24x1,5 |
| 4V54F4B3-C |
1/2 |
Coupling |
na |
Male thread BSPP ? DIN 3852 Form B |
3/8 |
na |
| 4V54F4B4-C |
1/2 |
Coupling |
na |
Male thread BSPP ? DIN 3852 Form B |
1/2 |
na |
| 4V54G4X3-C |
1/2 |
Coupling |
na |
Female thread ? DIN 3852 Form Y |
3/8 |
na |
| 4V54G4X4-C |
1/2 |
Coupling |
na |
Female thread ? DIN 3852 Form Y |
1/2 |
na |
| 4V54G4X6-C |
1/2 |
Coupling |
na |
Female thread ? DIN 3852 Form Y |
3/4 |
na |
| 4V54G8X5-C |
1/2 |
Coupling |
na |
Female thread ? DIN 3852 Form Y |
na |
18x1,5 |
| 4V54G8X6-C |
1/2 |
Coupling |
na |
Female thread ? DIN 3852 Form Y |
na |
22x1,5 |
|
