Parker Quick Couplings

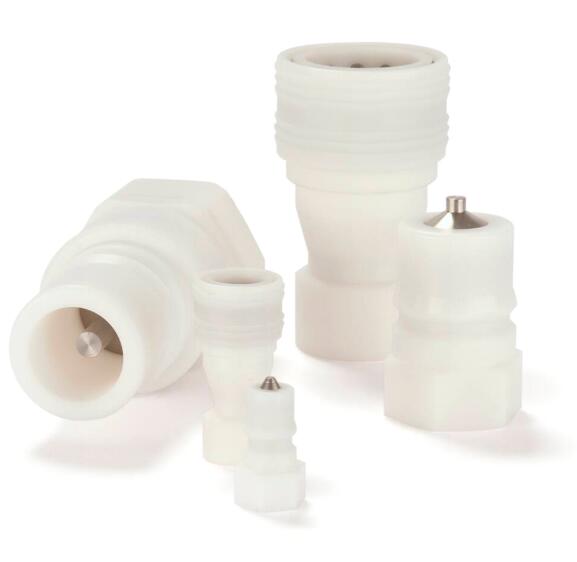

Quick Coupling made of Thermoplastic with ISO 7241-1 Series B Profile, Series 70
Quick coupling system with nominal diameter 4.3 up to 30 for pneumatic and fluid handling applications up to 15 bar. Coupling system with ISO 7241-1 series B profile. Available made of thermoplastic - POM.
Parker's Series 70 made of thermoplastic is a coupling range in sizes from 1/8" to 1 1/2" with plug profile in accordance with ISO 7241-1 series B. It's particularly suitable for use with liquid media.
The coupling system is developed for two-hand operation, i.e. the locking sleeve must be pushed back manually when coupling. The coupling range stands out for its high flow rates against a low pressure drop. 1 1/2" design (series 77) with locking pin and EPDM seal.
Quick Coupling made of Thermoplastic with ISO 7241-1 Series B Profile, Series 70
Markets:
- Life Science
- Process
- Food & Beverage
Features/Benefits:
- Coupling system according to ISO 7241-1 series B
- Two-hand operation
- High flow rates with low pressure drop
Applications:
- Food and chemical processing
- Cleaning equipment
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Body Size: |
1/8 to 1"1/2 inch |
| Application: |
Pneumatic & Fluid Handling, Medical Technology |
| Brand: |
Rectus |
| Diameter: |
Nominal: 4.3 to 30 mm |
| Fitting Connection Type: |
Female Thread |
| Flow Rate: |
116 to 4491 Gal/min, 440 to 17000 L/min |
| Specifications Met: |
ISO B |
| Interchange Type: |
ISO 7241-1 Series B |
| Maximum Operating Pressure: |
145 to 215 psi, 10 to 15 bar |
| Maximum Operating Temperature: |
194 °F, 90 °C |
| Media: |
Chemical Fluids, Gases, Water |
| Valve Type: |
Poppet |
| Valve Included: |
Yes |
| Version: |
Double Shut-Off |
| Length: |
29,5 up to 133 mm |
| Outside Diameter: |
14 up to 60 mm |
| Hex Size: |
24,5 up to 76 mm |
| Materials of Construction: |
POM |
| Seal Material: |
NBR |
Quick Coupling made of Thermoplastic with ISO 7241-1 Series B Profile, Series 70 型号
|
