Permanent Crimp Fittings - SF Series
Parker permanent crimp fittings – SF series are qualified for use with 56DH/568DH Diagnostic hose with a -1.5 (.09”) I.D.

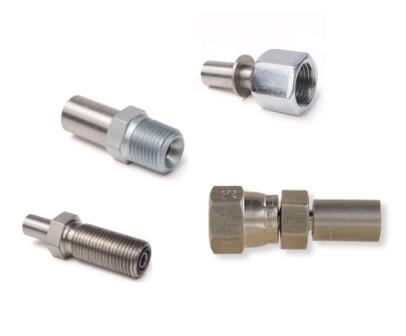

Parker's SF Series fittings are crimp style permanent fittings qualified for use with the Parker 56DH/568DH Diagnostic Hose. These compact fittings are used in hydraulic and pneumatic systems where a small O.D. hose is necessary. They are available in straight and 90° elbow shapes to accommodate different application requirements.
Permanent Crimp Fittings - SF Series
Markets:
- Industrial
- Agriculture
- Construction
- Mobile Equipment
- Transportation
Features/Benefits:
- Available in straight and 90° elbow shapes to accommodate different application requirements
- Parkalign? dies
Applications:
- Hydraulic and pneumatic systems where a small O.D. hose is necessary
- Hydraulic diagnostic hoses
Technical Specifications
| Port Size: |
0.125 - 0.250 inch |
| Shape: |
Straight |
| Application: |
Diagnostics, Hydraulics |
| Connection Type: |
Crimped, Pipe, 37° Flare, Seal-Lok |
| Hose Inside Diameter: |
2.3 mm, 0.09 inch |
| Length: |
1.13 - 2.06 inch |
| Connection Thread Size: |
Varies |
| Materials of Construction: |
Steel |
| Product Style: |
Crimp (Permanent) |
Permanent Crimp Fittings - SF Series 型号
| Part |
Port Connection (inch) |
Hose I.D. (inch) |
Style |
| 101SF-2-1 |
0.125 |
0.09 |
Male NPTF Pipe - Rigid - Straight |
| 106SF-2-1 |
0.125 |
0.09 |
Female JIC 37° - Swivel - Straight |
| 1JBSF-4-1 |
0.25 |
0.09 |
Male Seal-Lok - Bulkhead without Locknut - Straight (with o-ring) |
| 1JSSF-4-1 |
0.25 |
0.09 |
Female Seal-Lok - Swivel - Straight - Long |
|
